TS-0610-1242

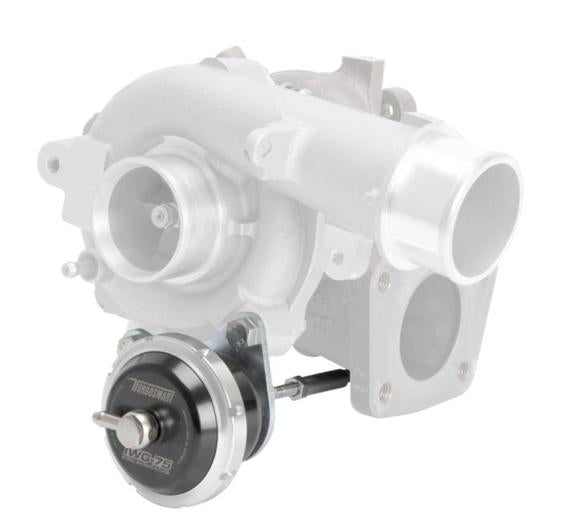

Mazda 3 MPS Internal Wastegate Actuator (IWG) provides better turbo response and greater sensitivity when managing boost pressures. Designed as a direct bolt-on replacement for the factory part, the Mazda 3 MPS IWG is easy to install and requires no special tools or fabrication. It can’t get any easier!

FEATURES:
• Silicone diaphragm with Nomex reinforcement to withstand high temperatures.
• High grade, billet aluminum construction.
• Stainless steel rods and connecting clevis for corrosion resistance.
• Locking Collar design cap allows for quick spring changes.
• Ideal for use with any Turbosmart boost controller.

Supplied With:
Bracket and Fitting Hardware, 6.3mm Clevis End and Nut, Brown/Black 3psi Inner Spring, Brown/Red 11psi Middle spring and Brown/Blue 10psi Outer Spring (installed).

Note: Does not fit US and other LHD models.

Tech Bulletins

TS-06XX-XXXX IWG75 Clevis Type Instructions.pdf

Compatibility
MAZDA	CX-7	(01/06-06/12) 182KW 240HP 2260cc Petrol SUV (2.3 L MZR L3-VDT DISI turbo)
MAZDA	MPS 3	(01/07-12/09) 196KW 267HP 2260cc Petrol HATCH (MZR L3-VDT)
MAZDA	MPS 3	(01/10-06/13) 196KW 267HP 2260cc Petrol HATCH (MZR L3-VDT)
MAZDA	MAZDASPEED3	(01/07-12/09) 196KW 267HP 2260cc Petrol HATCH (MZR L3-VDT)
MAZDA	MAZDASPEED3	(01/10-06/13) 196KW 267HP 2260cc Petrol HATCH (MZR L3-VDT)
MAZDA	MAZDASPEED ATENZA	GG (01/05-06/07) 200KW 272HP 2260cc Petrol SALOON (MZR L3-VDT)
