TS-0304-1001

The Turbosmart BOV controller is an electronic device which controls the pressure signal to the BOV. It works by detecting a negative voltage change in throttle position. It then energises a solenoid to vent all of the air out of the BOV cap, causing a pressure differential between the piston of the BOV and the cap which will vent pressure from the intake system.

Large diesel engines with larger turbochargers can experience compressor surge when coming off the throttle. The deceleration of the engine can be a restriction on the outlet of the turbocharger causing compressor surge. This can be disastrous on a turbo system which is producing high amounts of boost. The BOV controller can vent this build up of pressure, protecting the turbocharger. This can reduce the amount of rebuilds on your turbocharger as well as improve acceleration between gears.

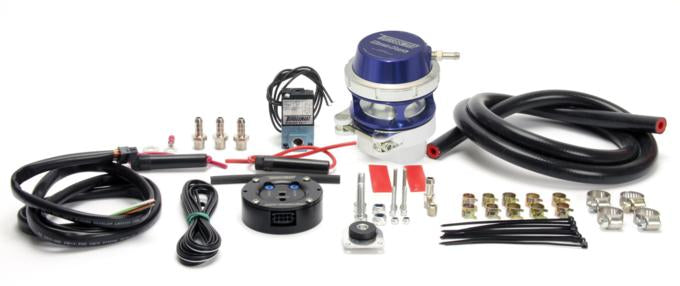

Supplied With:
BOV Controller, Specific Race Port BOV, Wiring loom, Solenoid and bracket, Reinforced pressure tubing, Hose clamps and mounting hardware.

Welding and/or fabrication required for installation.

Compatibility
DODGE	RAM	BR/BE (01/98-06/02) 175KW 238HP 5883cc Diesel SUV (5.9L CUMMINS ISB)
DODGE	RAM	DR/DH/D1/DC/DM (01/02-06/04) 227KW 305HP 5883cc Diesel SUV (5.9L CUMMINS)
DODGE	RAM	DR/DH/D1/DC/DM (06-04-12/06) 242KW 325HP 5883cc Diesel SUV (5.9L CUMMINS)
DODGE	RAM	DR/DH/D1/DC/DM (01/07-12/09 261KW 350HP 6690cc Diesel SUV (6.7L CUMMINS)
FORD	F-350	9th Generation (01/94-06/05) 205KW 275HP 7298cc DIESEL TRUCK (7.3L Powerstroke)
FORD	SUPER DUTY	(01/99-12/03) 205KW 275HP 7298cc DIESEL TRUCK (7.3L Powerstroke)
FORD	EXCURSION	(01/00-12/03) 205KW 275HP 7298cc DIESEL TRUCK (7.3L Powerstroke)
FORD	E-SERIES	(01/94-12/03) 205KW 275HP 7298cc DIESEL TRUCK (7.3L Powerstroke)
LAND ROVER	DISCOVERY TD5	MK-2 (01/88-06/07) 2498cc DIESEL SUV
MAZDA	BT-50	MK-2, UP, UR (01/11-PRESENT) 138KW 185HP 3298cc DIESEL SUV (MZ-CD 3.2L)
MAZDA	BT-50	MK-2, UP, UR (01/11-PRESENT) 110KW 147HP 2198cc DIESEL SUV (MZ-CD 2.2L)
MAZDA	BT-50	MK-2, UP, UR (01/11-PRESENT) 138KW 185HP 3298cc DIESEL SUV (MZ-CD 3.2L)
MAZDA	BT-50	MK-2, UP, UR (01/11-PRESENT) 110KW 147HP 2198cc DIESEL SUV (MZ-CD 2.2L)
NISSAN	Patrol	Y61 (10/97-06-13) 118KW 161HP 4169cc Diesel SUV (TD42)
NISSAN	Patrol	Y61 (10/97-06-13) 118KW 158HP 2953cc Diesel SUV (ZD30DDTi4)
