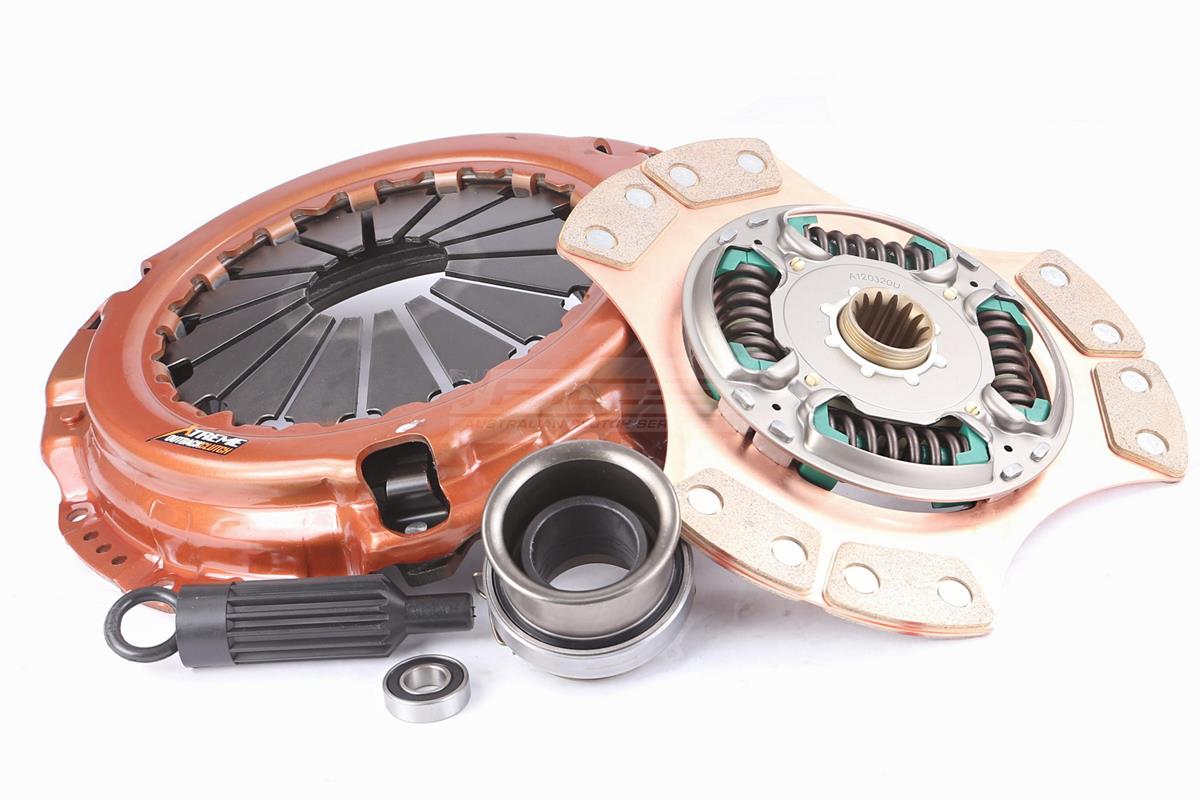

KTY28032-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 700Nm
• Clamp load 900Kg 40% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	710
Clamp Load	900KG (40% inc.)
Flywheel Step	+0.5mm
Clutch Disc Diameter (mm)	280
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	32
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Stage	Stage 2

Compatibility
Toyota	Land Cruiser 80	4.2 TD (HDJ80)	1990.01-1994.12	1HD-T 4164 Diesel 115 kW 156 BHP (1990.01 - 1994.12)	275mm disc
Toyota	Land Cruiser 80	4.2 TD (HDJ80)	1992.08-1997.12	1HD-T 4164 Diesel 118 kW 160 BHP (1992.08 - 1997.12)	275mm disc
