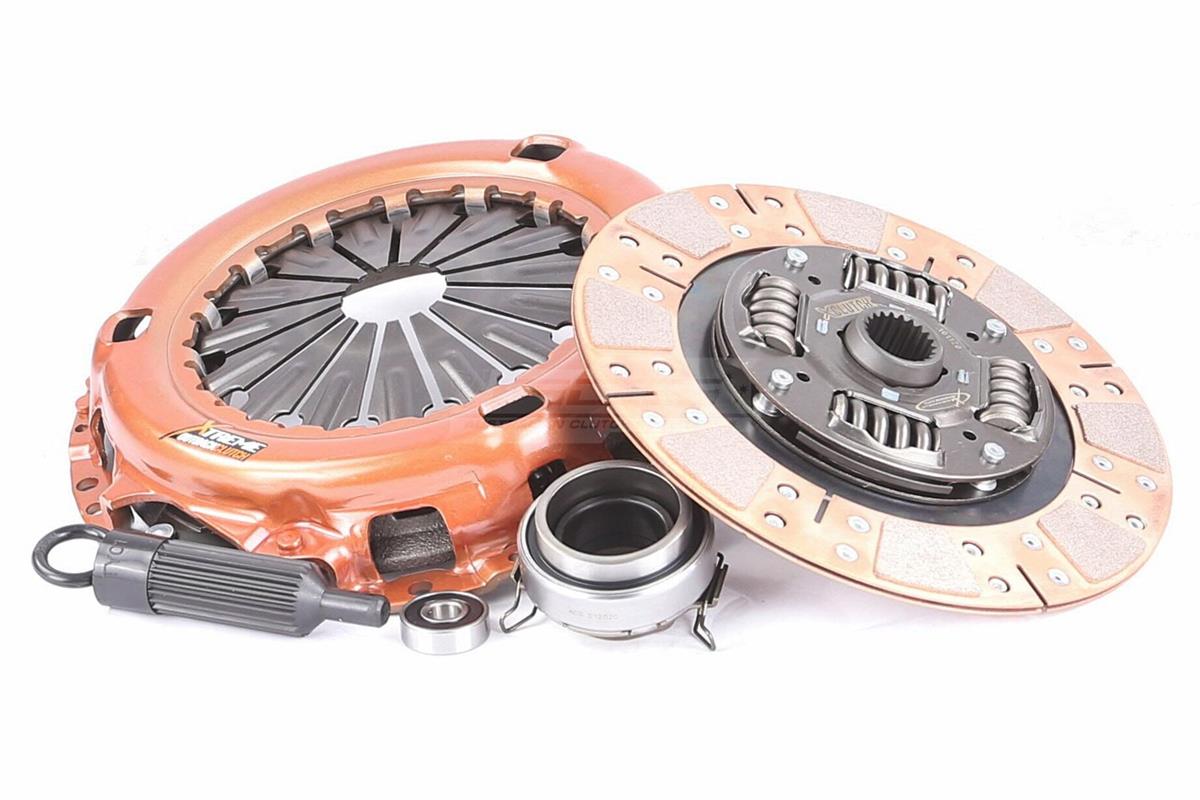

KTY24003-1C

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 580Nm
• Clamp load 700Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Cushioned ceramic friction discs are similar to the sprung ceramic kits in that they have a sprung hub to absorb shock loading, but also have a small amount of cushioning betwene the two friction surfaces on the disc giving them better pedal modulation. These kits are designed for low speed trial where pedal feel is important but where the high temperature capacity of a ceramic disc is also beneficial.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clamp Load	700Kg (40% inc.)
Flywheel Step	+.5mm/.020"
Clutch Disc Diameter (mm)	235
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Recommended for	Low Speed Trial - Stage 2
Design	Single Plate
Stage	Stage 2

Compatibility
Toyota	Dyna	2.0 (YU60_)	1984.09-1987.08	3Y 1998 Petrol 79 kW 107 BHP (1984.09 - 1987.08)
Toyota	Previa	2.4 (TCR10. TCR11)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Estima	2.4 (TCR10G. TCR11G. TCR10W)	1990.05-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1990.05 - 1999.12)
Toyota	Previa	2.4 (TCR11_. TCR10_)	1990.05-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.05 - 2000.08)
Toyota	Previa	2.4 4WD (TCR20. TCR21)	1990.05-1996.07	2TZ-FE 2438 Petrol 102 kW 139 BHP (1990.05 - 1996.07)
Toyota	Previa	2.4 4WD (TCR21_. TCR20_)	1990.01-2000.08	2TZ-FE 2438 Petrol 97 kW 132 BHP (1990.01 - 2000.08)
Toyota	Previa	2.4 4WD (TCR21G. TCR20G)	1992.01-1999.12	2TZ-FE 2438 Petrol 99 kW 135 BHP (1992.01 - 1999.12)
Toyota	4 Runner	Gen. II | 2.2 (YN130)	1989.10-1990.10	4Y-EC 2237 Petrol 74 kW 101 BHP (1989.10 - 1990.10)
Toyota	Hiace	Gen. IV | 2.0 (RZH102. RZH112)	1996.11-2000.10	1RZ-E 1998 Petrol 81 kW 110 BHP (1996.11 - 2000.10)
Toyota	Hiace	Gen. IV | 2.4 (RZH10)	1995.08-2004.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1995.08 - 2004.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103)	1995.08-2004.12	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 2004.12)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-1998.07	2RZ 2438 Petrol 85 kW 116 BHP (1989.08 - 1998.07)
Toyota	Hiace	Gen. IV | 2.4 (RZH103. RZH113)	1989.08-2003.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 2003.08)
Toyota	Hiace	Gen. IV | 2.4 (RZH103_)	1989.08-1996.10	2RZ 2438 Petrol 72 kW 98 BHP (1989.08 - 1996.10)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH103_. RCH113_)	1989.08-1995.08	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.08)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RCH18. RCH28)	1995.08-1998.04	2RZ-E 2438 Petrol 85 kW 116 BHP (1995.08 - 1998.04)
Toyota	Hiace	Gen. IV | 2.4 4WD (RZH103_. RZH109_. RZH113_. RZH115_)	1989.08-1995.07	2RZ-E 2438 Petrol 88 kW 120 BHP (1989.08 - 1995.07)
Toyota	Hiace	Gen. IV | 2.4 i (RZH103. RZH113)	1998.08-2004.08	2RZ-E 2438 Petrol 85 kW 116 BHP (1998.08 - 2004.08)
