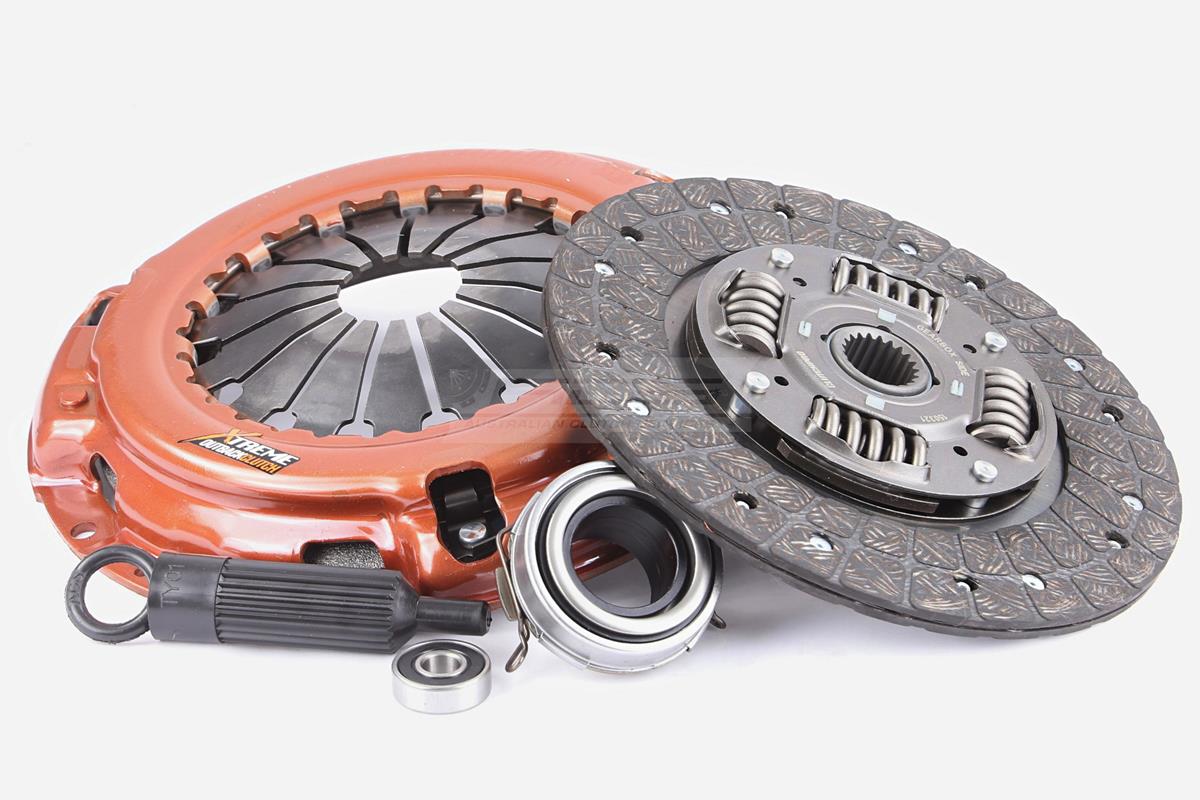

KTY24001-1AX

Recommended for: Vehicles with significant performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the Heavy Duty equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades

• Torque capacity 355Nm

• Clamp load 790Kg 70% Increased over standard
• Organic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	355
Clamp Load	790kg (70% inc)
Flywheel Step	+.5mm/.020"
Clutch Disc Diameter (mm)	236
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Recommended for	Street Performance, Heavily Loaded or Tow Vehicles
Design	Single Plate

Compatibility
Toyota	4 Runner	Gen. II | 2.8 D (LN130)	1989.10-1996.03	3L 2779 Diesel 60 kW 82 BHP (1989.10 - 1996.03)
Toyota	Dyna 150	2.8 D (LY211)	1995.05-1998.08	3L 2779 Diesel 61 kW 83 BHP (1995.05 - 1998.08)
Toyota	Dyna 150	3.0 D (LY102. LY112. LY122)	1998.09-2001.07	5L 2986 Diesel 65 kW 88 BHP (1998.09 - 2001.07)
Toyota	Dyna	3.0 D4d (LY220. LY230)	2001.08-2009	5L 2986 Diesel 65 kW 88 BHP (2001.08 - 2009)
Toyota	Hiace	Gen. IV | 2.8 D (LH105, LH125)	1989.08-2000.08	3L 2779 Diesel 61 kW 83 BHP (1989.08 - 2000.08)
Toyota	Hiace	Gen. IV | 3.0 D (LH174, LH184)	1998.08-2004.08	5L 2986 Diesel 65 kW 88 BHP (1998.08 - 2004.08)
Toyota	Hiace	Gen. IV | 2.8 D (LH105, LH103, LH113)	1989.08-2000.08	3L 2779 Diesel 61 kW 83 BHP (1989.08 - 2000.08)
Toyota	Hiace	Gen. IV | 2.8 D 4WD (LH109, LH119)	1989.08-1998.07	3L 2779 Diesel 61 kW 83 BHP (1989.08 - 1998.07)
Toyota	Hiace	Gen. IV | 3.0 D (LH162, LH172, LH182)	1998.08-2004.08	5L 2986 Diesel 65 kW 88 BHP (1998.08 - 2004.08)
Toyota	Hilux	Gen. V | 2.8 D 4WD (LN106, LN111)	1988.10-1997.12	3L 2779 Diesel 60 kW 82 BHP (1988.10 - 1997.12)
Toyota	Hilux	Gen. V | 2.8 D 4WD (LN107, LN111, LN166, LN106)	1988.10-1997.12	3L 2779 Diesel 60 kW 82 BHP (1988.10 - 1997.12)
Toyota	Hilux	Gen. VI |3.0 D (LN147)	1997.08-2000.09	5L-E 2986 Diesel 71 kW 97 BHP (1997.08 - 2000.09)
Toyota	Hilux	Gen. VI | 3.0 D 4WD (LN167, LN172)	1998.01-2005.07	5L-E 2986 Diesel 71 kW 97 BHP (1998.01 - 2005.07)
Toyota	Hilux	Gen. VI | 2.4 TD 4WD (LN165_, LN170_, LN190_)	1998.08-2002.01	2L-T 2446 Diesel 66 kW 90 BHP (1998.08 - 2002.01)
Toyota	Hilux	Gen. VI | 3.0 D (LN147, LN152)	1998.01-2005.04	5L, 5L-E 2986 Diesel 71 kW 97 BHP (1998.01 - 2005.04)
Toyota	Hilux	Gen. VI | 3.0 D (LN147, LN152)	2002.01-2005.02	5L 2986 Diesel 67 kW 91 BHP (2002.01 - 2005.02)
Toyota	Hilux	Gen. VI | 3.0 D (LN147, LN152)	1997.08-2005.05	5L 2986 Diesel 65 kW 88 BHP (1997.08 - 2005.05)
Toyota	Hilux	Gen. VI | 3.0 D 4WD (LN167, LN172)	1998.01-2005.07	5L-E 2986 Diesel 71 kW 97 BHP (1998.01 - 2005.07)
Toyota	Hilux	Gen. VI | 3.0 D 4WD (LN167, LN172)	1997.08-2005.07	5L 2986 Diesel 67 kW 91 BHP (1997.08 - 2005.07)
Toyota	Land Cruiser 70	2.4 TD (LJ70)	1990.01-1993.05	2L-T 2446 Diesel 66 kW 90 BHP (1990.01 - 1993.05)
Toyota	Land Cruiser 70	2.4 TD (LJ70_)	1990.07-1996.05	2L-T 2446 Diesel 66 kW 90 BHP (1990.07 - 1996.05)
Toyota	Land Cruiser 70	2.4 TD (LJ70_. LJ73_. LJ70RV)	1985.10-1990.05	2L-T 2446 Diesel 63 kW 86 BHP (1985.10 - 1990.05)
