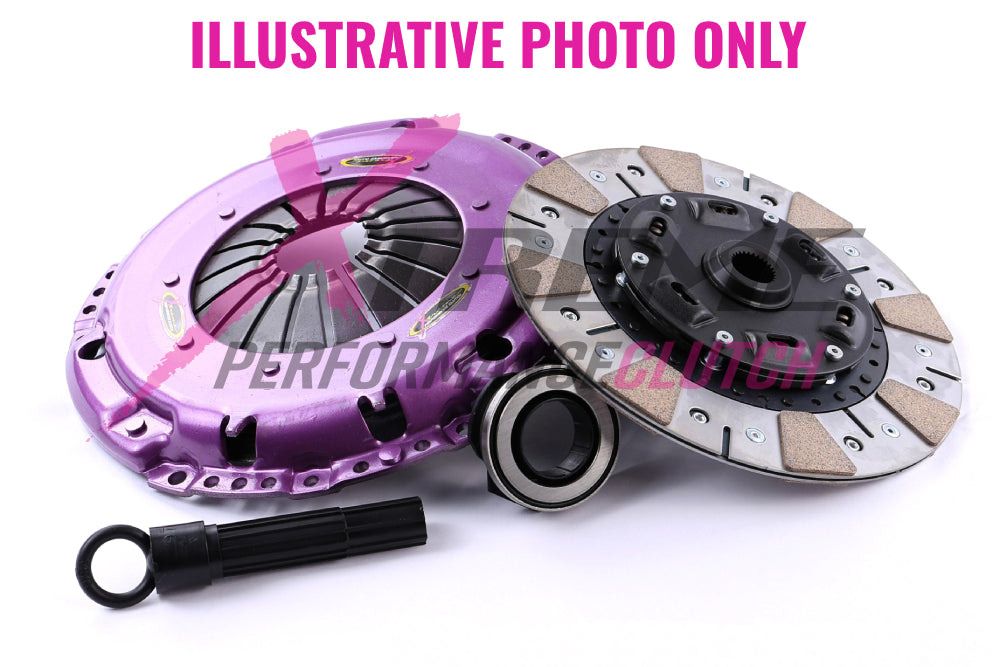

KTY23032-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 430Nm
• Clamp load 700Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	29
Torque (Nm)	430
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	700Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Toyota	Chaser	2.0 (GX71)	1985.10-1988.08	1G-GTEU 1988 Petrol 138 kW 188 BHP (1985.10 - 1988.08)	540	Track Use	Not included
Toyota	Chaser	2.4 TD (LX80)	1988.08-1992.10	2L-T 2446 Diesel 69 kW 94 BHP (1988.08 - 1992.10)	540	Track Use	Not included
Toyota	Chaser	2.4 TD (LX90)	1992.10-1996.08	2L-TE 2446 Diesel719 kW 97 BHP (1992.10 - 1996.08)	540	Track Use	Not included
Toyota	Chaser	2.4 TD (LX90)	1992.10-1996.08	2L-TII 2446 Diesel 69 kW 94 BHP (1992.10 - 1996.08)	540	Track Use	Not included
Toyota	Cresta	2.4 TD (LX80)	1988.09-1992.09	2L-T 2446 Diesel 71 kW 97 BHP (1988.09 - 1992.09)	540	Track Use	Not included
Toyota	Hiace	Gen. IV | 2.4 D (LH102)	1989.08-1995.08	2L 2446 Diesel 55 kW 75 BHP (1989.08 - 1995.08)	540	Track Use	Not included
Toyota	Hiace	Gen. IV | 2.4 D (LH102, LH104, LH112)	1989.08-1995.08	2L 2446 Diesel 57 kW 78 BHP (1989.08 - 1995.08)	540	Track Use	Not included
Toyota	Soarer	2.0 Turbo (GZ20)	1986.09-1991.03	1G-GTEU 1988 Petrol 136 kW 185 BHP (1986.09 - 1991.03)	540	Track Use	Not included
Toyota	Supra	2.0 S Turbo (GA70)	1986.02-1988.07	1G-GTEU 1988 Petrol 138 kW 188 BHP (1986.02 - 1988.07)	540	Track Use	Not included
