KTY23002-1B

Recommended for: Motorsport Applications

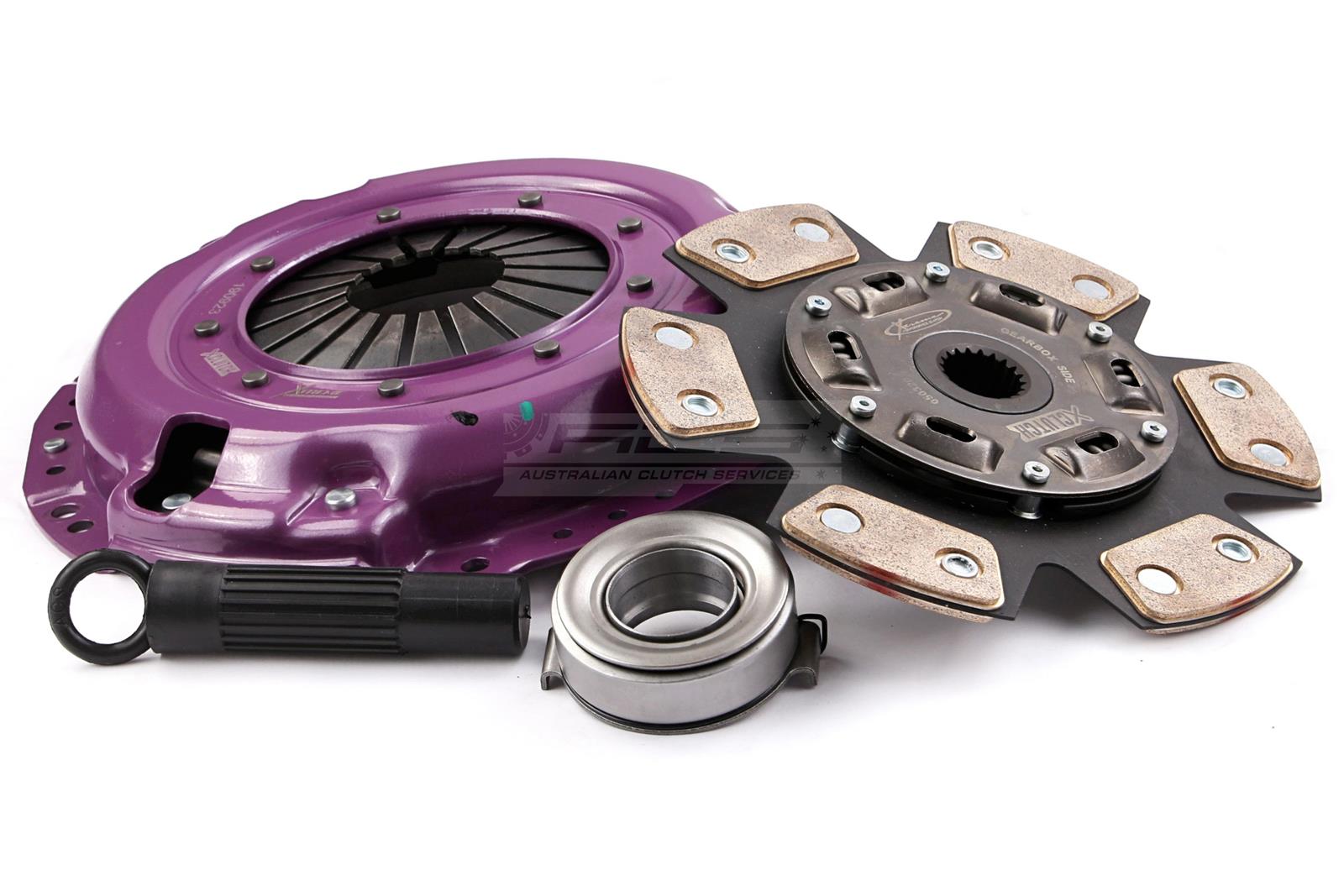

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 430Nm
• Clamp load 700kg 45% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	26.9
Torque (Nm)	430
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	700Kg (45% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	Apollo	JK | 2.0	1989.08-1991.07	3S-FC 1998 Petrol 82 kW 110 BHP (1989.08 - 1991.07)	430	Track Use	Not included
Holden	Apollo	JK | 2.0	1989.08-1991.08	3S-FE 1998 Petrol 88 kW 118 BHP (1989.08 - 1991.08)	430	Track Use	Not included
Holden	Apollo	JL | 2.0	1991.08-1993.02	3S-FE 1998 Petrol 88 kW 120 BHP (1991.08 - 1993.02)	430	Track Use	Not included
Toyota	Camry	1.8 (SV20RG)	1986.11-1989.08	1S 1832 Petrol 66 kW 90 BHP (1986.11 - 1989.08)	430	Track Use	Not included
Toyota	Camry	2.0 (SV21_)	1986.11-1991.05	3S-FE 1998 Petrol 94 kW 128 BHP (1986.11 - 1991.05)	430	Track Use	Not included
Toyota	Camry	2.0 (SV21_)	1989.09-1991.06	3S-FE 1998 Petrol 93 kW 126 BHP (1989.09 - 1991.06)	430	Track Use	Not included
Toyota	Camry	2.0 (SV21_)	1986.11-1993.02	3S-FE 1998 Petrol 89 kW 121 BHP (1986.11 - 1993.02)	430	Track Use	Not included
Toyota	Camry	1.8 (SV10_)	1983.02-1986.10	1S-L 1832 Petrol 66 kW 90 BHP (1983.02 - 1986.10)	430	Track Use	Not included
Toyota	Camry	1.8 Turbo-D (CV10_)	1982.10-1986.10	1C-TL, 1C-TLC 1839 Diesel 54 kW 73 BHP (1982.10 - 1986.10)	430	Track Use	Not included
Toyota	Camry	2.0 (SV11_)	1982.10-1986.10	2S-EL 1995 Petrol 77 kW 105 BHP (1982.10 - 1986.10)	430	Track Use	Not included
Toyota	Camry	2.0 (SV11_)	1983.02-1986.12	2S-ELC, 2S-E 1995 Petrol 73 kW 99 BHP (1983.02 - 1986.12)	430	Track Use	Not included
Toyota	Camry	2.0 (SV11_)	1983.01-1986.10	2S-EL 1995 Petrol 78 kW 106 BHP (1983.01 - 1986.10)	430	Track Use	Not included
Toyota	Camry	2.0 (SV11_)	1983.01-1986.10	2S-ELC, 2S-E 1995 Petrol 71 kW 97 BHP (1983.01 - 1986.10)	430	Track Use	Not included
Toyota	Camry	1.8 (SV20_)	1986.08-1988.08	1S-I 1832 Petrol 88 kW 120 BHP (1986.08 - 1988.08)	430	Track Use	Not included
Toyota	Camry	1.8 (SV20_)	1986.11-1989.08	1S 1832 Petrol 66 kW 90 BHP (1986.11 - 1989.08)	430	Track Use	Not included
Toyota	Camry	2.0 (SV21_)	1986.10-1990.07	3S-GE 1998 Petrol 103 kW 140 BHP (1986.10 - 1990.07)	430	Track Use	Not included
Toyota	Camry	2.0 (SV22, SV21)	1989.09-1991.06	3S-FC 1998 Petrol 82 kW 112 BHP (1989.09 - 1991.06)	430	Track Use	Not included
Toyota	Carina	T16 | 2.0 (ST162)	1985.08-1989.07	3S-GELU 1998 Petrol 118 kW 160 BHP (1985.08 - 1989.07)	430	Track Use	Not included
Toyota	Carina	T18 | 2.0 (ST182, ST183)	1989.09-1991.08	3S-FE 1998 Petrol 92 kW 125 BHP (1989.09 - 1991.08)	430	Track Use	Not included
Toyota	Carina	T18 | 2.0 (ST182, ST183)	1991.08-1993.09	3S-FE 1998 Petrol 103 kW 140 BHP (1991.08 - 1993.09)	430	Track Use	Not included
Toyota	Carina	T18 | 2.0 (ST182. ST183)	1989.09-1993.09	3S-GE 1998 Petrol 121 kW 165 BHP (1989.09 - 1993.09)	430	Track Use	Not included
Toyota	Carina	T17 | 1.8 (ST170)	1987.12-1992.03	4S-FI 1838 Petrol 77 kW 105 BHP (1987.12 - 1992.03)	430	Track Use	Not included
Toyota	Carina	T17 | 2.0 (ST171_)	1987.12-1992.04	3S-FE 1998 Petrol 89 kW 121 BHP (1987.12 - 1992.04)	430	Track Use	Not included
Toyota	Carina	T17 | 2.0 GLi (ST170)	1987.12-1992.03	3S-FE 1998 Petrol 94 kW 128 BHP (1987.12 - 1992.03)	430	Track Use	Not included
Toyota	Carina	T17 | 2.0 GLI (ST171)	1987.12-1992.03	3S-FE 1998 Petrol 89 kW 121 BHP (1987.12 - 1992.03)	430	Track Use	Not included
Toyota	Celica	2.0 (ST162)	1987.01-1989.08	3S-FE 1998 Petrol 88 kW 120 BHP (1987.01 - 1989.08)	430	Track Use	Not included
Toyota	Celica	2.0 (ST162)	1986.01-1989.08	3S-GEL, 3S-GELC 1998 Petrol 103 kW 140 BHP (1986.01 - 1989.08)	430	Track Use	Not included
Toyota	Celica	2.2 (ST184)	1989.09-1993.11	5S-FE 2164 Petrol 97 kW 132 BHP (1989.10 - 1994.12)	430	Track Use	Not included
Toyota	Celica	2.2 (ST184)	1989.10-1994.12	5S-FE 2164 Petrol 100 kW 136 BHP (1989.10 - 1994.12)	430	Track Use	Not included
Toyota	Celica	2.0 GT (ST162)	1985.08-1989.08	3S-GELC 1998 Petrol 103 kW 140 BHP (1985.08 - 1989.08)	430	Track Use	Not included
Toyota	Celica	2.0 GT (ST162)	1985.08-1989.08	3S-GEL 1998 Petrol 110 kW 150 BHP (1985.08 - 1989.08)	430	Track Use	Not included
Toyota	Corona EXIV	T18 | 2.0 (ST182, ST183)	1991.09-1993.09	3S-FE 1998 Petrol 103 kW 140 BHP (1991.09 - 1993.09)	430	Track Use	Not included
Toyota	Corona EXIV	T18 | 2.0 (ST182)	1989.09-1991.08	3S-FE 1998 Petrol 92 kW 125 BHP (1989.09 - 1991.08)	430	Track Use	Not included
Toyota	Corona EXIV	T18 | 2.0 (ST183)	1989.09-1993.09	3S-GE 1998 Petrol 121 kW 165 BHP (1989.09 - 1993.09)	430	Track Use	Not included
Toyota	Corona	T17 | 2.0 (ST171)	1987.12-1992.01	3S-FE 1998 Petrol 89 kW 121 BHP (1987.12 - 1992.01)	430	Track Use	Not included
Toyota	Corona	T17 | 1.8 (ST170)	1987.12-1989.11	4S-FI 1838 Petrol 77 kW 105 BHP (1987.12 - 1989.11)	430	Track Use	Not included
Toyota	Corona	T16 | 1.8 (ST160)	1984.09-1987.10	1S-EL 1832 Petrol 74 kW 101 BHP (1984.09 - 1987.10)	430	Track Use	Not included
Toyota	Corona	T16 | 2.0 GTi (ST162)	1986.08-1987.10	3S-GELC 1998 Petrol 103 kW 140 BHP (1986.08 - 1987.10)	430	Track Use	Not included
Toyota	Corona	T17 | GT-R 2.0 (ST171)	1987.12-1992.02	3S-GE 1998 Petrol 121 kW 165 BHP (1987.12 - 1992.02)	430	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 16V (SW20_)	1989.12-1999.09	3S-GE 1998 Petrol 115 kW 156 BHP (1989.12 - 1999.09)	430	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 16V (SW20_)	1989.12-2000.05	3S-GE 1998 Petrol 125 kW 170 BHP (1989.12 - 2000.05)	430	Track Use	Not included
Toyota	MR2	Gen. II | 2.0 16V (SW20_)	1989.12-1999.07	3S-GE 1998 Petrol 129 kW 175 BHP (1989.12 - 1999.07)	430	Track Use	Not included
