KSZ17005-1A

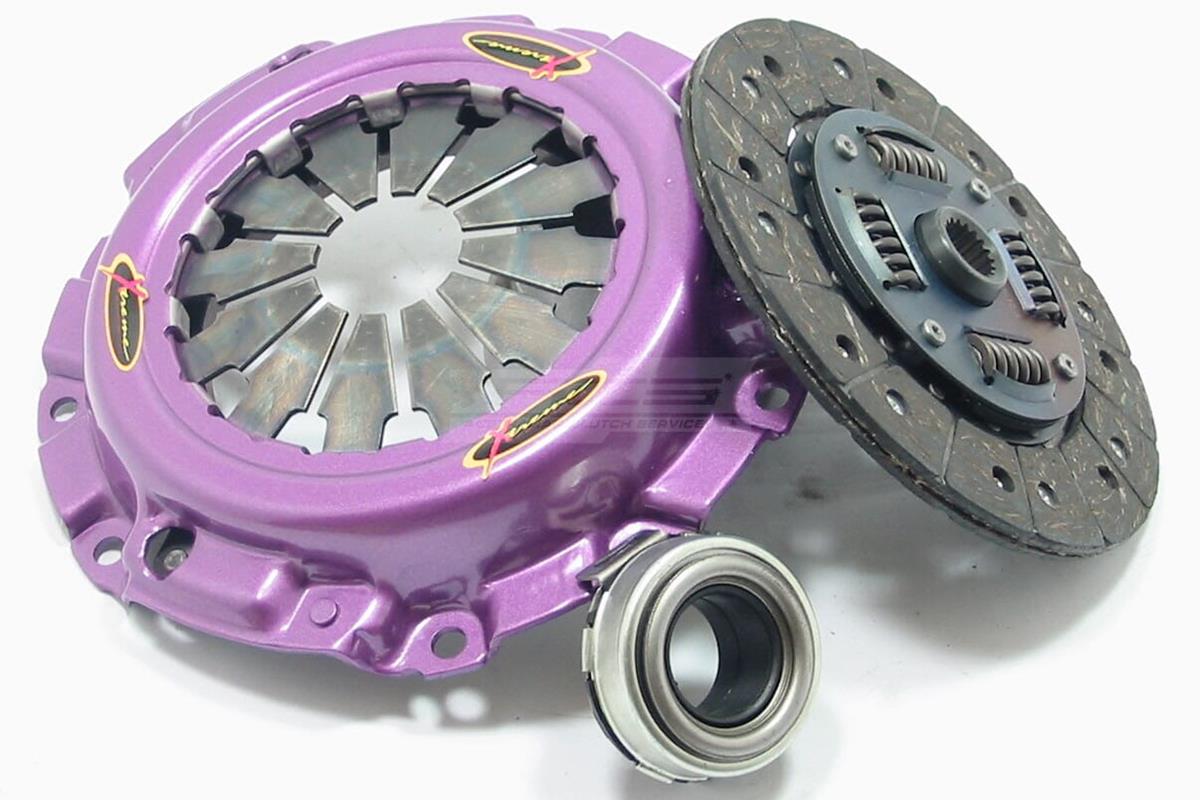

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	170
Clutch Disc Spline Count	18
Clutch Disc Spline Diameter (mm)	19.3
Torque (Nm)	120
Flywheel Step	-2.0mm/.079""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	380Kg (40% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Chevrolet	Spark	0.8	2000.09-2006.12	F8CV 796 Petrol 38 kW 52 BHP (2000.09 - 2006.12)
Chevrolet	Matiz	0.8	2005.03-2013.12	LQ2(49CUL3), LBF(49CUL3) 796 Petrol 38 kW 52 BHP (2005.03 - 2013.12)
Chevrolet	Matiz	0.8 LPG	2005.03-2007.12	LQ2(49CUL3), LBF(49CUL3) 796 Petrol 38 kW 52 BHP (2005.03 - 2007.12)
Suzuki	Swift	Gen. II | 1.0 (SF310. AA44)	1989.03-2001.05	G10A, G10 993 Petrol 37 kW 50 BHP (1989.03 - 2001.05)
Suzuki	Swift	Gen. II | 1.0 i (SF310. AA44)	1989.03-1991.12	G10A 993 Petrol 40 kW 54 BHP (1989.03 - 1991.12)
