1 1

ACS

KSU23531-2B

KSU23531-2B

€2.827,83 EUR
€2.827,83 EUR
In offerta Esaurito

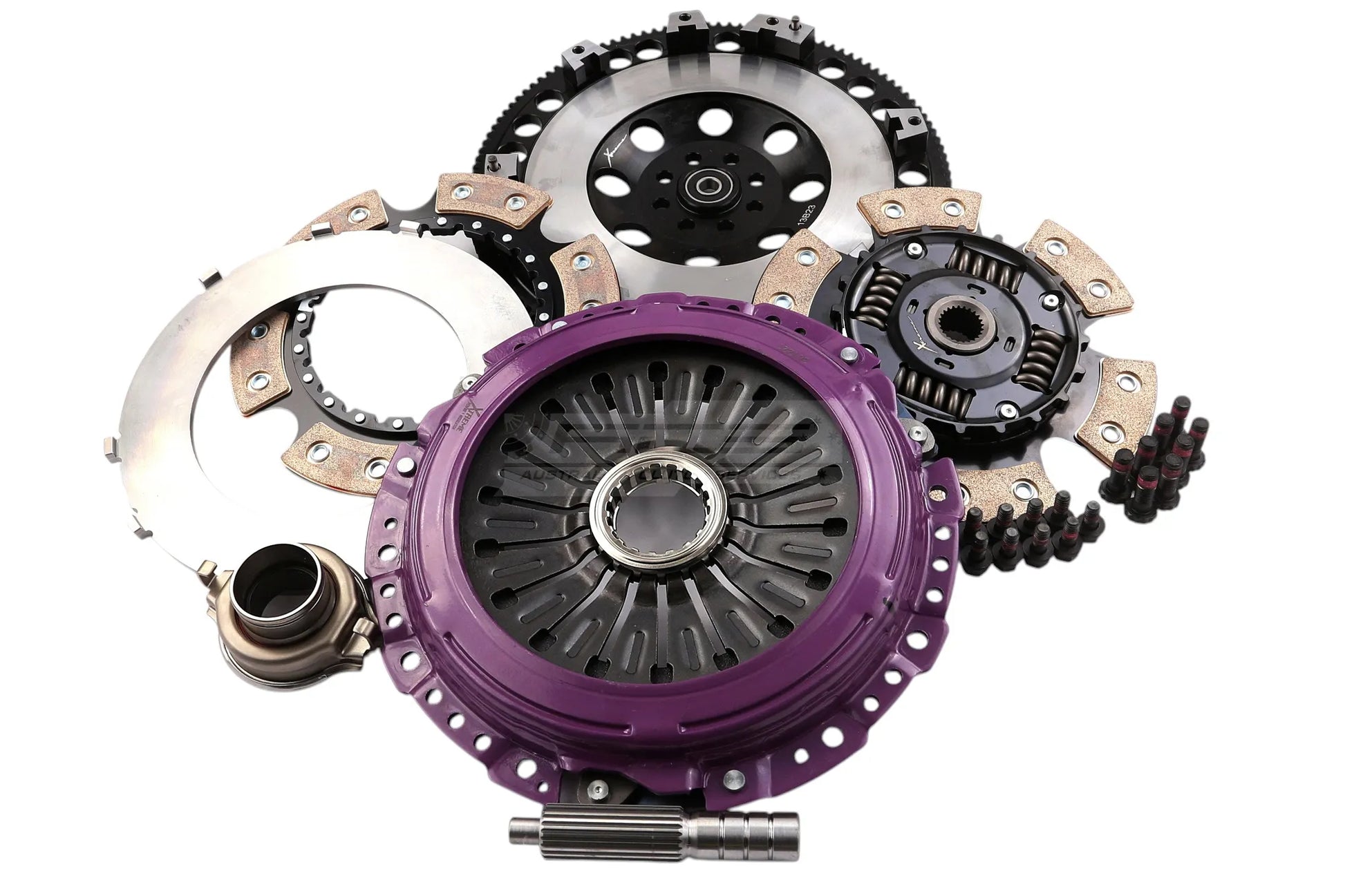

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Pull type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")
Clutch Disc Diameter (mm) 230
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.2
Flywheel Step -19,5mm
Torque (Nm) 2100
Stage 5
Usage Motorsport
Design 230mm Twin Plate Sprung Ceramic – designed for high-power street and endurance applications. Delivers maximum torque transfer with enhanced heat capacity and controlled engagement.
Tech Bulletins TSB-PULL01  TSB-171
Kit Includes Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool
Flywheel Single Mass Flywheel
Additional information Pull Type Clutch - No modification required
Compatibility
Subaru Impreza 2.0 AWD (GDA) 2001.12-2002.11 EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 Turbo AWD (GGA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 Turbo GT AWD (GC8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 Turbo GT AWD (GF8) 1998.06-2000.12 EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2000.12-2005.12 EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX Turbo AWD (GGA) 2002.12-2006.09 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2007.03 EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2007.03) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX Turbo AWD (GDA) 2002.12-2005.09 EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX AWD (GGA) 2001.09-2005.12 EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX AWD (GGA) 2005.10-2007.03 EJ205 1994 Petrol 184 kW 250 BHP (2005.10 - 2007.03) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD (GDB) 2001.11-2005.07 EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD (GGB) 2000.10-2002.10 EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD (GC8) 1996.09-2000.09 EJ207 1994 Petrol 206 kW 280 BHP (1996.09 - 2000.09) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD 2005.09-2007.12 EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD (GDB) 2005.10-2007.03 EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.09-2007.12 EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STi AWD 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STi AWD (GDF) 2005.10-2007.03 EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STI AWD (GVF) 2011.01- EJ255 2457 Petrol 221 kW 301 BHP (2011.01 - ) 2100 Motorsport Single Mass Flwyheel
Subaru WRX STi 2.5 AWD 2014.06- EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - ) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STI AWD (GRF) 2008.01-2013.08 EJ257 2457 Petrol 227 kW 309 BHP (2008.01 - 2013.08) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD (GRB) 2007.12-2010.12 EJ20 (Turbo) 1994 Petrol 227 kW 309 BHP (2007.12 - 2010.12) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.0 WRX STi AWD 2004.02-2005.07 EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) Suits 6 Speed Gearbox 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 WRX STI 330S AWD 2009.05-2010.12 EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) 2100 Motorsport Single Mass Flwyheel
Subaru Impreza 2.5 STI CS400 AWD (GRF) 2010.04-2013.08 EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) 2100 Motorsport Single Mass Flwyheel
