KSU23520-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 430Nm
• Clamp load 600Kg 30% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate

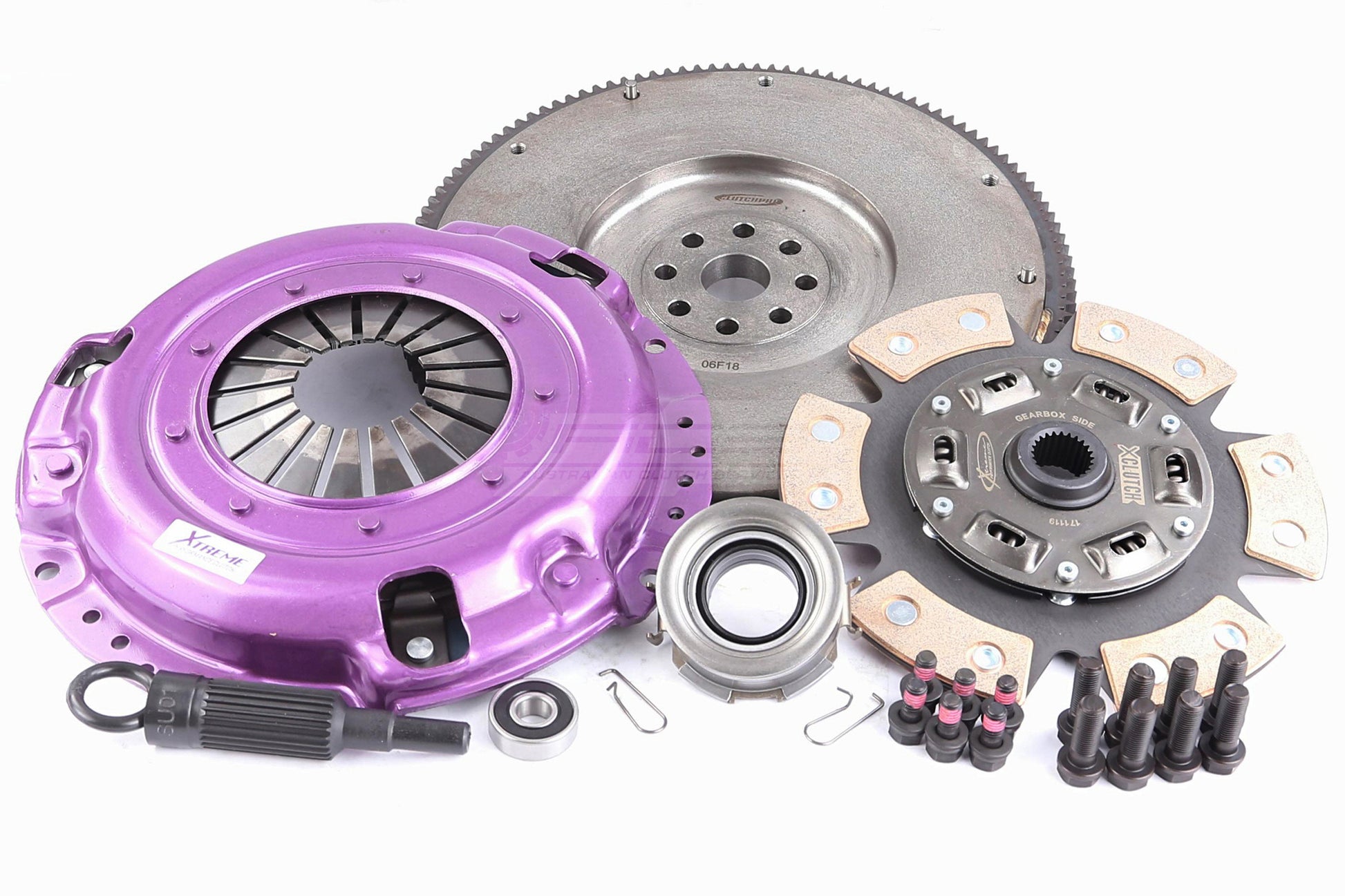

• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	430
Clamp Load	600KG (30% inc.)
Flywheel Step	Flat
Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,2
Design	Single Plate

Compatibility
Subaru	Legacy	Gen. III | 2.0 AWD (BH5)	1998.12-2003.08	EJ201 1994 Petrol 92 kW 125 BHP (1998.12 - 2003.08)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. III | 2.0 AWD (BE5)	1999.04-2003.08	EJ201 1994 Petrol 92 kW 125 BHP (1999.04 - 2003.08)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. IV | 2.0 AWD (BP5)	2003.09-2005.10	EJ202 1994 Petrol 101 kW 138 BHP (2003.09 - 2005.10)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. IV | 2.0 AWD (BL5)	2003.09-2005.10	EJ202 1994 Petrol 101 kW 138 BHP (2003.09 - 2005.10)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. II | 2.5 AWD (BG9)	1996.06-1998.11	EJ25D 2457 Petrol 110 kW 150 BHP (1996.06 - 1998.11)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Forester	SG | 2.5 AWD (SG9)	2002.06-2005.05	EJ251 2457 Petrol 112 kW 152 BHP (2002.06 - 2005.05)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Impreza	2.5 AWD (GGE)	2002.12-2005.09	EJ25 2457 Petrol 112 kW 152 BHP (2002.12 - 2005.09)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Impreza	2.5 AWD (GDE)	2002.12-2005.09	EJ251 2457 Petrol 112 kW 152 BHP (2002.12 - 2005.09)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Forester	2.5 RX Nato AWD (SG9)	2002.11-2008.12	EJ25 2457 Petrol 115 kW 156 BHP (2002.11 - 2008.12)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. II | 2.5 4WD (BD9)	1996.09-1998.11	EJ25 2457 Petrol 115 kW 156 BHP (1996.09 - 1998.11)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. II | 2.5 i 4WD (BG9)	1996.09-1998.11	EJ25D 2457 Petrol 115 kW 156 BHP (1996.09 - 1998.11)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Outback	2.5 AWD (BH9)	2000.10-2003.08	EJ25 2457 Petrol 115 kW 156 BHP (2000.10 - 2003.08)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. IV | 2.5 AWD (BP9)	2003.09-2009.04	EJ25 2457 Petrol 121 kW 165 BHP (2003.09 - 2009.04)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. IV | 2.5 AWD (BL9)	2003.09-2009.04	EJ25 2457 Petrol 121 kW 165 BHP (2003.09 - 2009.04)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Outback	2.5 AWD (BP9)	2003.11-2009.09	EJ253 2457 Petrol 121 kW 165 BHP (2003.11 - 2009.09)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Legacy	Gen. V | 2.5 i AWD (BR9)	2009.05-2014.12	EJ25 2457 Petrol 125 kW 170 BHP (2009.05 - 2014.12)	430	Track Use	Conversion Kit to Solid Flywheel
Subaru	Impreza	2.5 AWD (GDE)	2001.03-2005.09	EJ251 2457 Petrol 130 kW 177 BHP (2001.03 - 2005.09)	430	Track Use	Conversion Kit to Solid Flywheel
