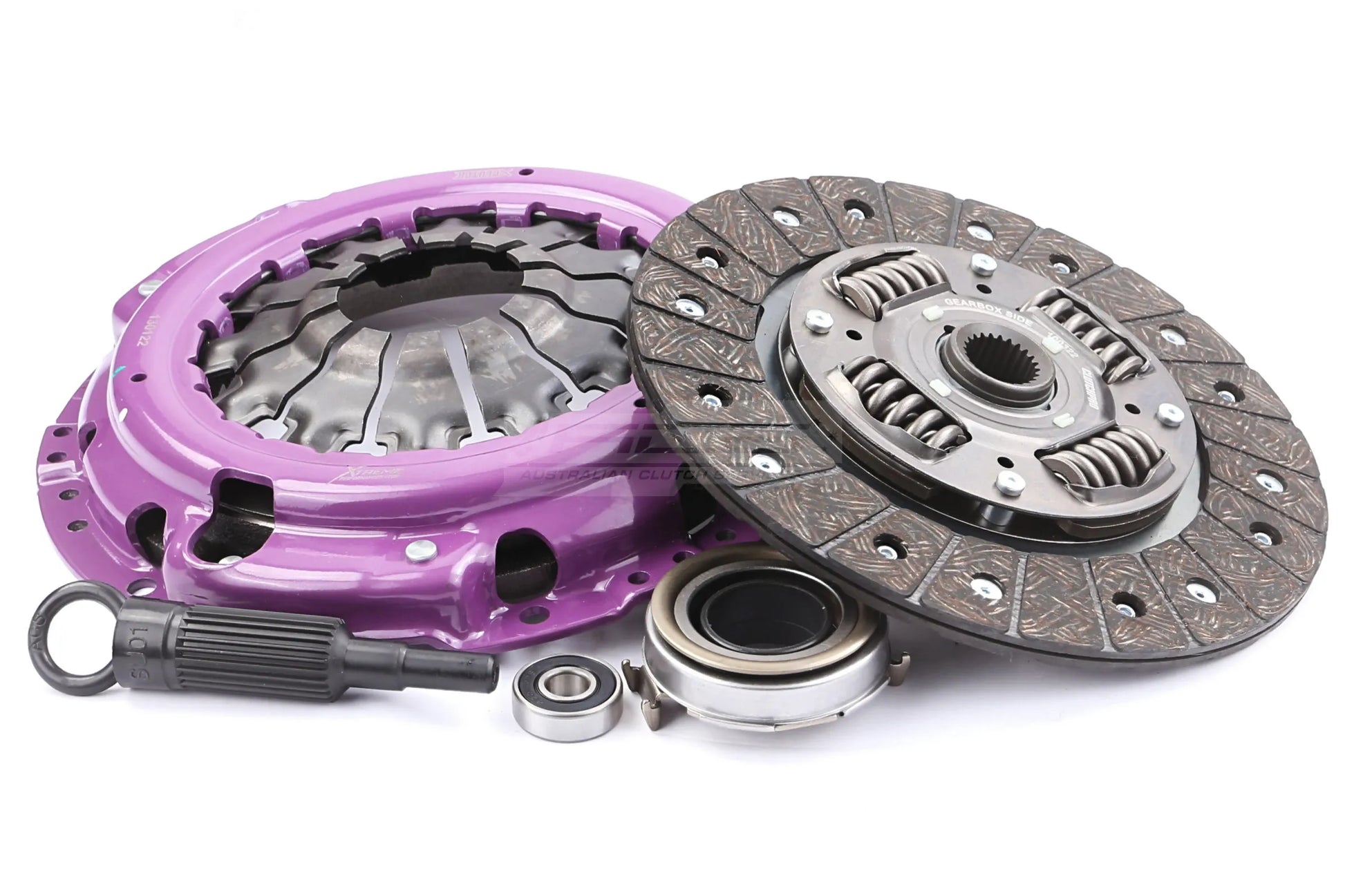

KSU23012-1AX

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Clutch Disc Diameter (mm)	230
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.2
Torque (Nm)	490
Flywheel Step	-2.0mm
Design	Single Plate
Stage
Tech Bulletins
Clamp Load	1020Kg
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Subaru	BRZ	2.0 (ZC6)	2012.06-	FA20D 1998 Petrol 147 kW 200 BHP (2012.06 - )	490	Street Upgrade	Not included
Subaru	BRZ	2.0 (ZC6)	2016.08-	FA20C 1998 Petrol 152 kW 207 BHP (2016.08 - )	490	Street Upgrade	Not included
Subaru	BRZ	2.4 (ZD8)	2021.10-	FA24C, FA24D 2387 Petrol 174 kW 237 BHP (2021.10 - )	490	Street Upgrade	Not included
Toyota	GT86	2.0 (ZN6AC_. ZN6BC_)	2012.03-	FA20, FA20D, 4U-GSE 1998 Petrol 147 kW 200 BHP (2012.03 - )	490	Street Upgrade	Not included
Toyota	GT86	2.0 (ZN6EY_)	2016.08-	FA20D, 4U-GSE 1998 Petrol 152 kW 207 BHP (2016.08 - )	490	Street Upgrade	Not included
Toyota	GR86	2.4 (ZN8)	2022.05-	FA24C, FA24D 2387 Petrol 174kW 237 BHP (2022.05 -)	490	Street Upgrade	Not included
