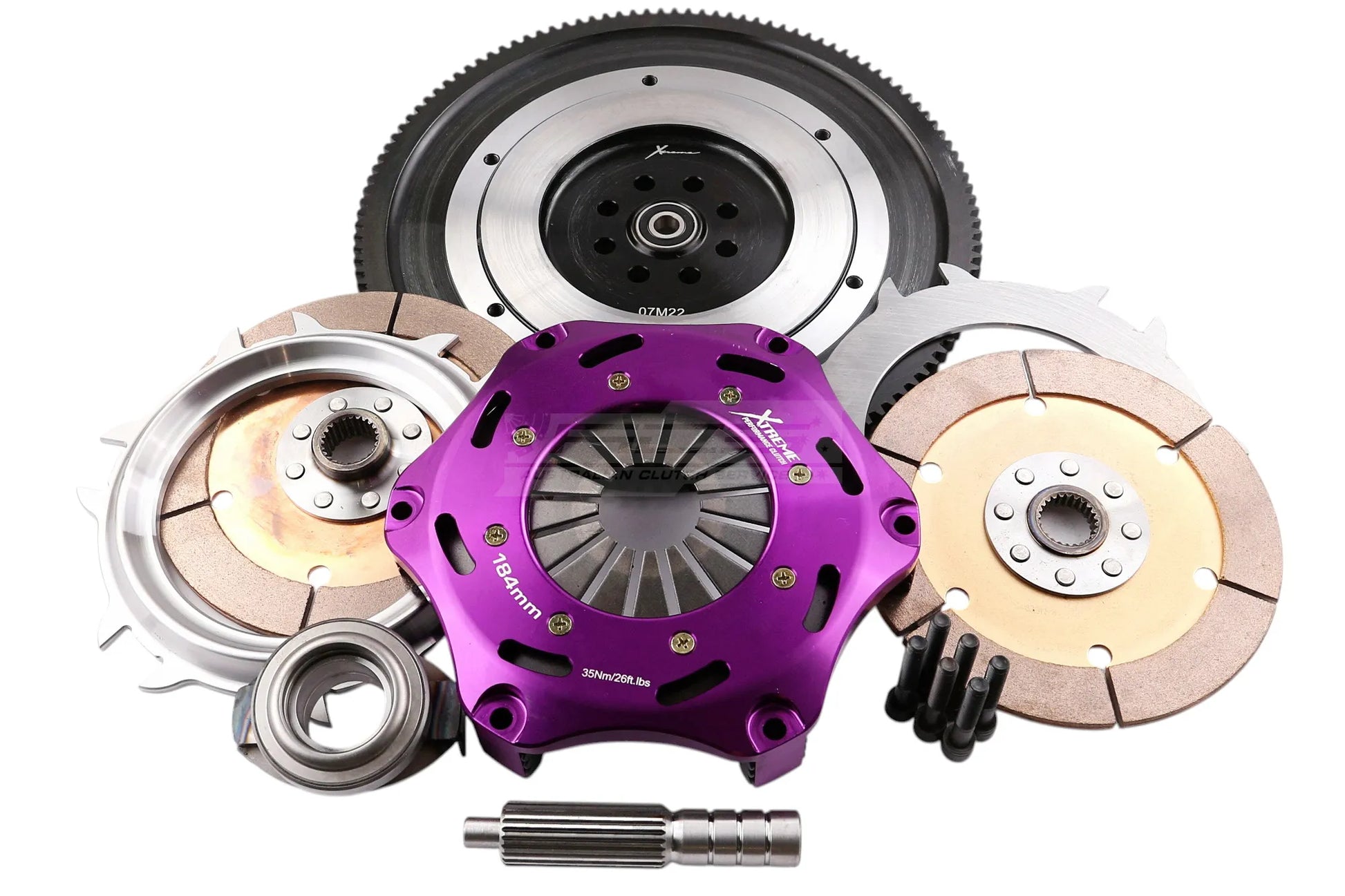

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.5
Torque (Nm) 1220
Flywheel Step +2.5mm
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load 900Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Subaru Forester SG | 2.5 AWD (SG9. S11SG. S12SH) 2005.06-2008.05 EJ255 2457 Petrol 169 kW 230 BHP (2005.06 - 2008.05) 1220 Motorsport Single Mass Flywheel
Subaru Forester SH | 2.5 AWD (SH9) 2008.06-2013.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.06 - 2013.09) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 WRX AWD (GGG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 WRX AWD (GHE) 2008.01-2011.09 EJ255 2457 Petrol 169 kW 230 BHP (2008.01 - 2011.09) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 i WRX AWD (GDG) 2005.09-2008.12 EJ255 2457 Petrol 169 kW 230 BHP (2005.09 - 2008.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza S-GT AWD (GH8) 2007.12-2011.12 EJ20 (Turbo) 1994 Petrol 184 kW 250 BHP (2007.12 - 2011.12) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 WRX S AWD 2009.02-2010.12 EJ255 2457 Petrol 188 kW 255 BHP (2009.02 - 2010.12) 1220 Motorsport Single Mass Flywheel
Subaru Forester SH | 2.5 Turbo AWD (SH9) 2011.02-2013.09 EJ255 2457 Petrol 193 kW 262 BHP (2011.02 - 2013.092) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 WRX SE AWD (GRE) 2010.07-2013.08 EJ255 2457 Petrol 195 kW 265 BHP (2010.07 - 2013.08) 1220 Motorsport Single Mass Flywheel
Subaru Impreza 2.5 WRX SE AWD (GVE, GEE) 2009.01-2014.12 EJ255 2457 Petrol 195 kW 265 BHP (2009.01 - 2014.12) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. V | 2.5 GT AWD (BM9) 2010.07-2014.12 EJ255 2457 Petrol 195 kW 265 BHP (2010.07 - 2014.12) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. V | 2.5 GT AWD (BR9) 2010.07-2014.12 EJ255 2457 Petrol 195 kW 265 BHP (2010.07 - 2014.12) 1220 Motorsport Single Mass Flywheel
Subaru WRX 2.0 AWD (GK6, GK8) 2013.09- FA20F, FA20E 1998 Petrol 197 kW 268 BHP (2013.09 - ) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. V | 2.5 GT AWD (BM9) 2009.05-2014.12 EJ255 2457 Petrol 210 kW 286 BHP (2009.05 - 2014.12) 1220 Motorsport Single Mass Flywheel
Subaru Legacy Gen. V | 2.5 GT AWD (BR9) 2009.05-2014.12 EJ255 2457 Petrol 210 kW 286 BHP (2009.05 - 2014.12) 1220 Motorsport Single Mass Flywheel
