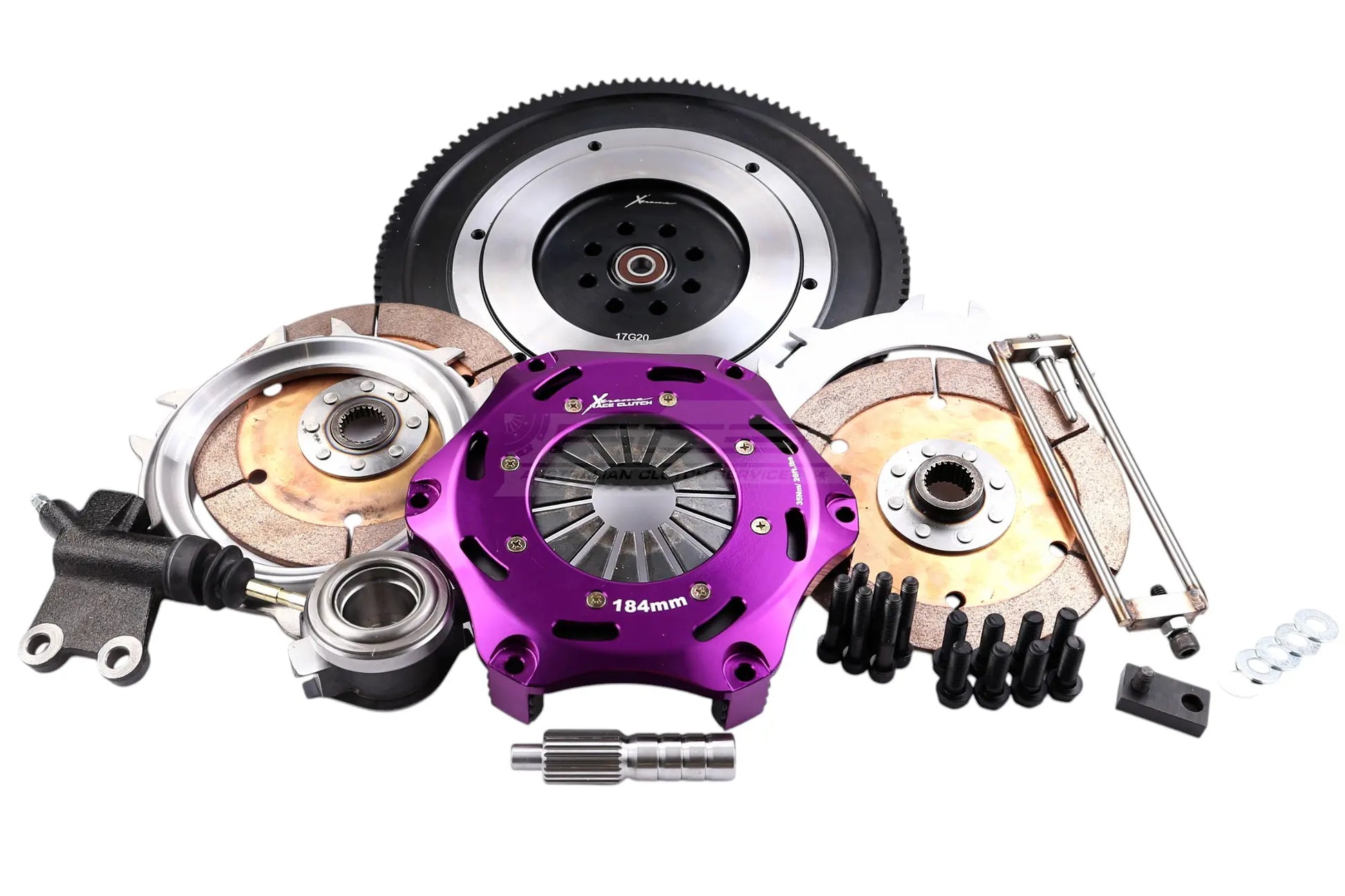

Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction. The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts. Product Features:
- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") | |
| Clutch Disc Diameter (mm) | 184 |
| Clutch Disc Spline Count | 24 |
| Clutch Disc Spline Diameter (mm) | 25.2 |
| Flywheel Step | +2.5mm |
| Torque (Nm) | 1220 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 184mm Twin Plate Solid Ceramic – for lightweight race applications. Delivers instant engagement, reduced rotational mass, and maximum torque capacity for aggressive track use. |
| Tech Bulletins | TSB-228 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Bolts, Alignment Tool, Adjustment Tool, Clutch Slave Cylinder |
| Flywheel | Single Mass Flywheel |
| Additional information | 6 Speed Gearbox - Pull To Push Conversion |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Subaru | Impreza | 2.0 AWD (GDA) | 2001.12-2002.11 | EJ205 1994 Petrol 150 kW 204 BHP (2001.12 - 2002.11) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo AWD (GGA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GC8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 Turbo GT AWD (GF8) | 1998.06-2000.12 | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2000.12-2005.12 | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX Turbo AWD (GDA) | 2002.12-2005.09 | EJ205 1994 Petrol 168 kW 228 BHP (2002.12 - 2005.09) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX AWD (GGA) | 2001.09-2005.12 | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2001.11-2005.07 | EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD | 2005.09-2007.12 | EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GC8) | 1996.09-2000.09 | EJ207 1994 Petrol 206 kW 280 BHP (1996.09 - 2000.09) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GDB) | 2005.10-2007.03 | EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD (GDF) | 2005.09-2007.12 | EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD | 2005.10-2007.03 | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STi AWD (GDF) | 2005.10-2007.03 | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI AWD (GRF) | 2008.01-2013.08 | EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI AWD (GVF) | 2011.01- | EJ255 2457 Petrol 221 kW 301 BHP (2011.01 - ) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | WRX | STi 2.5 AWD | 2014.06- | EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - ) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD (GRB) | 2007.12-2010.12 | EJ20 (Turbo) 1994 Petrol 227 kW 309 BHP (2007.12 - 2010.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.0 WRX STi AWD | 2004.02-2005.07 | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
| Subaru | Impreza | 2.5 WRX STI 330S AWD | 2009.05-2010.12 | EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) | 6 Speed-pull To Push Conversion | 1220 | Motorsport | Single Mass Flwyheel |
