ACS
KPR18601-3E
KPR18601-3E
Prezzo di listino
€5.636,41 EUR
Prezzo di listino
Prezzo scontato
€5.636,41 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

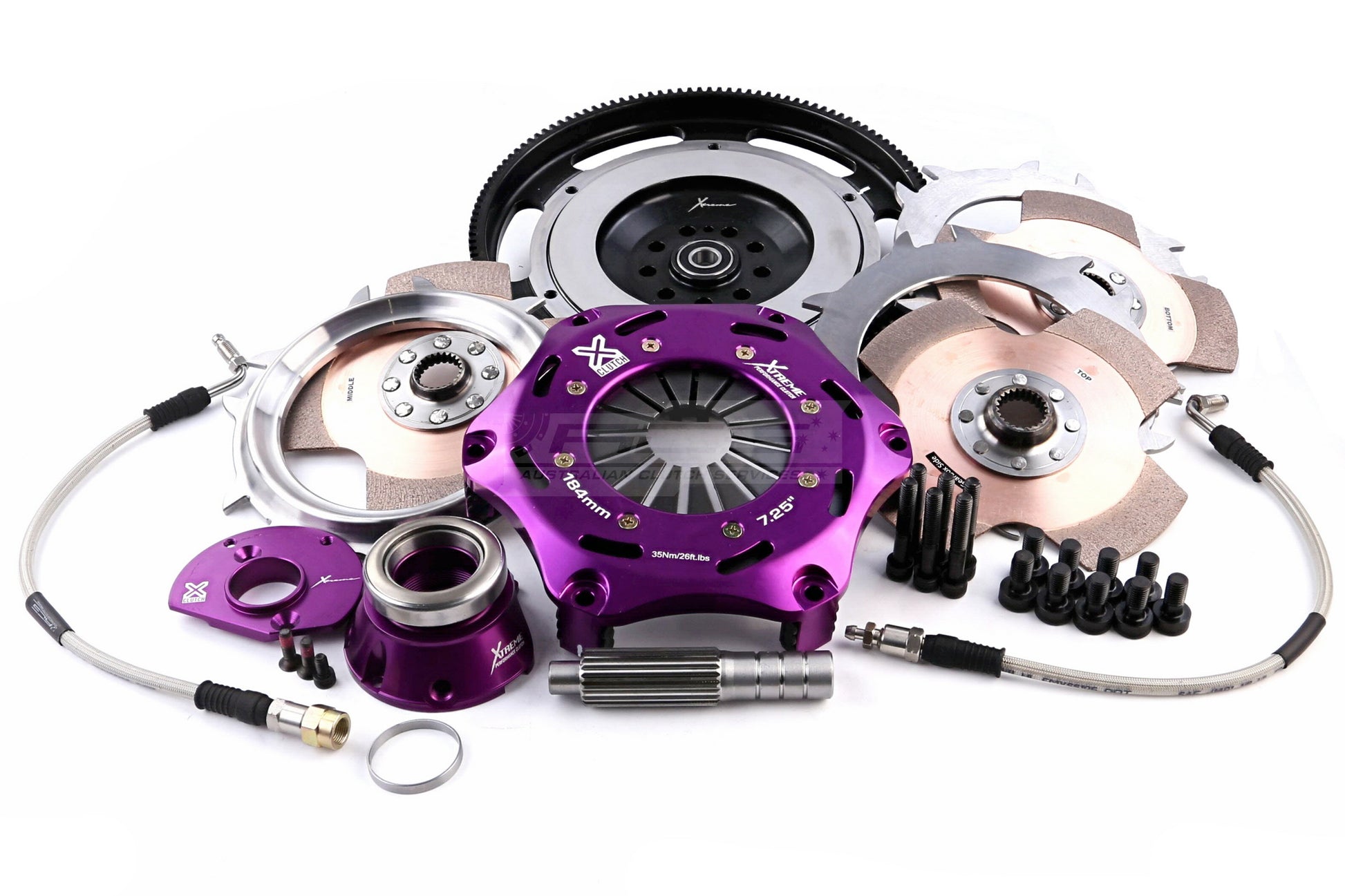

Xtreme Clutch 180mm twin plate kit
The Xtreme Clutch 180mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 180mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 180mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 180mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 180mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
| Clutch Disc Diameter (mm) | 180 |
| Design | Twin Plate |
| Stage | Multiplate - street use only |
| Recommended for | High horsepower Motorsport driven vehicles |
