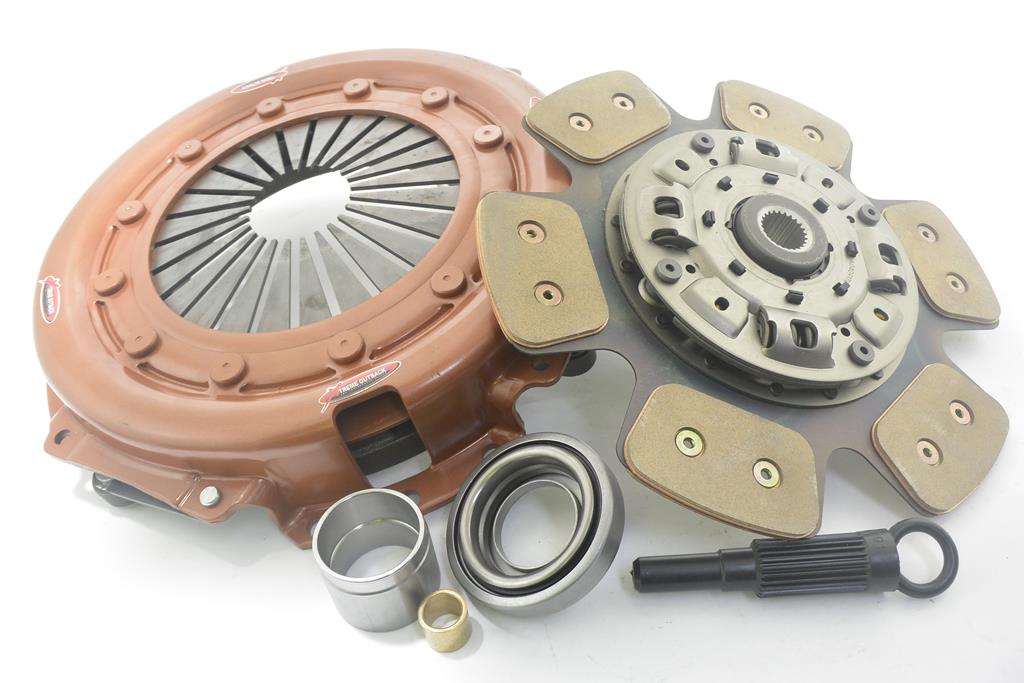

KNI30001-1R

Recommended for: Motorsport Applications

-1R kits are sprung ceramic single plate upgrades like seen in the ""-1B"" kits, however these kits offer even further clamping force for vehicles that have had significant performance modifications. Used regularly in motorsport applications, these kits are ideal for competition cars still used on the road (such as rally cars).

• Torque capacity 1140Nm
• Clamp load 1300Kg (50% inc.) Increased over standard
• Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clamp Load	1300Kg (50% inc.)
Flywheel Step	0
Clutch Disc Diameter (mm)	300
Clutch Disc Spline Count	16
Clutch Disc Spline Diameter (mm)	30
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Stage	Stage 2R

Compatibility
Nissan	Patrol	Y61 | 4.8	2001.10-2013.06	TB48DE 4759 Petrol 185 kW 252 BHP (2001.10 - 2013.06)
Nissan	Patrol	Y61 | 4.8	2000.03-	TB48DE 4759 Petrol 180 kW 245 BHP (2000.03 - )
Nissan	Patrol	Y61 | 4.8	2014.12-	TB48DE 4759 Petrol 209 kW 284 BHP (2014.12 - )
