KNI28509-1B

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 670Nm
• Clamp load 1100Kg 40% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate

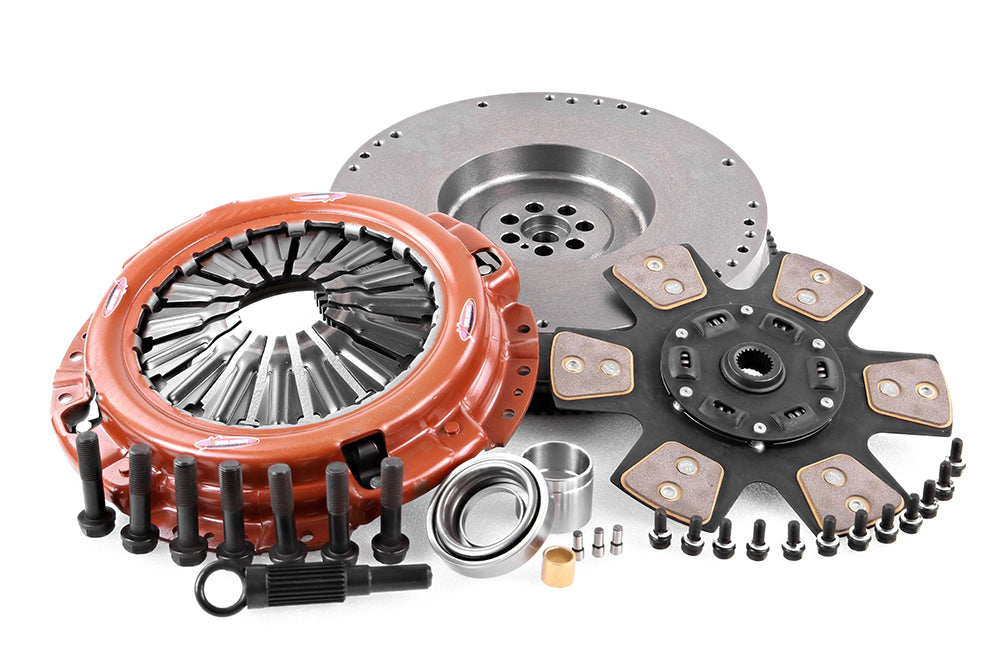

• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	670
Clamp Load	1100KG (40% inc.)
Flywheel Step	Flat
Clutch Disc Diameter (mm)	275
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25,4
Recommended for	High Speed 4x4 Trial or Desert Race - Stage 2
Design	Single Plate
Diameter [mm]	275
Stage	Stage 2

Compatibility
Nissan	Terrano	R20 | 3.0 DiTD 4WD	1997.10-2004.12	ZD30DDTi 2953 Diesel 125 kW 170 BHP (1997.10 - 2004.12)	275mm clutch. Some models uses smaller 260mm option.	Suits vehicles manufactured until 07/2004.
Nissan	Patrol	Y61 | 3.0 DTi	2000.05-	ZD30DDTi 2953 Diesel 118 kW 160 BHP (2000.05 - )		Suits vehicles manufactured until 07/2004.
Nissan	Patrol	Y61 | 3.0 DTi	2000.05-	ZD30DDTi 2953 Diesel 116 kW 158 BHP (2000.05 - )		Suits vehicles manufactured until 07/2004.
