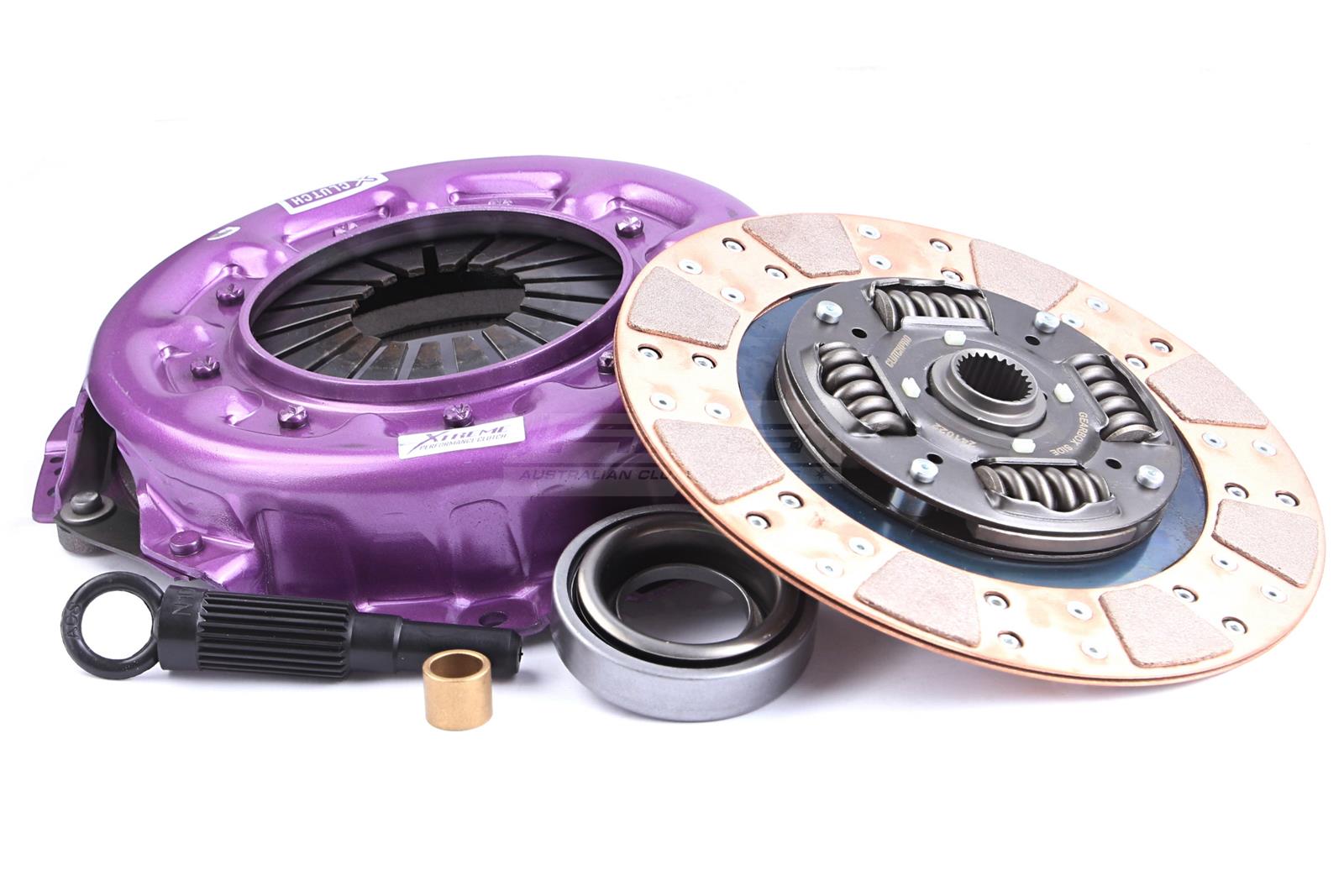

KNI24003-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 570Nm
• Clamp load 800Kg 35% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	570
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	800Kg (35% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	180SX	S13 | 2.0 Turbo	1991.04 - 1994.03	SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03)	570	Track Use	Not included
Nissan	180SX	S13 | 2.0 Turbo	1992.01 - 1997.01	SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01)	570	Track Use	Not included
Nissan	Silvia	S13 | 2.0 Turbo	1991.01 - 1993.09	SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09)	570	Track Use	Not included
Nissan	Silvia	S13 | 2.0 Turbo	1991.01 - 1993.09	SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09)	570	Track Use	Not included
Nissan	200SX	S14 | 2.0 Turbo	1994.04 - 2000.11	SR20DET 1998 Petrol 147 kW 200 BHP (1994.04 - 2000.11)	570	Track Use	Not included
Nissan	200SX	S14 | 2.0 Turbo	1993.10 - 1999.12	SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)	570	Track Use	Not included
Nissan	Silvia	S14 | 2.0 Turbo	1994.04 - 1999.09	SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09)	570	Track Use	Not included
Nissan	Silvia	S14 | 2.0 Turbo	1993.10 - 1999.12	SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12)	570	Track Use	Not included
