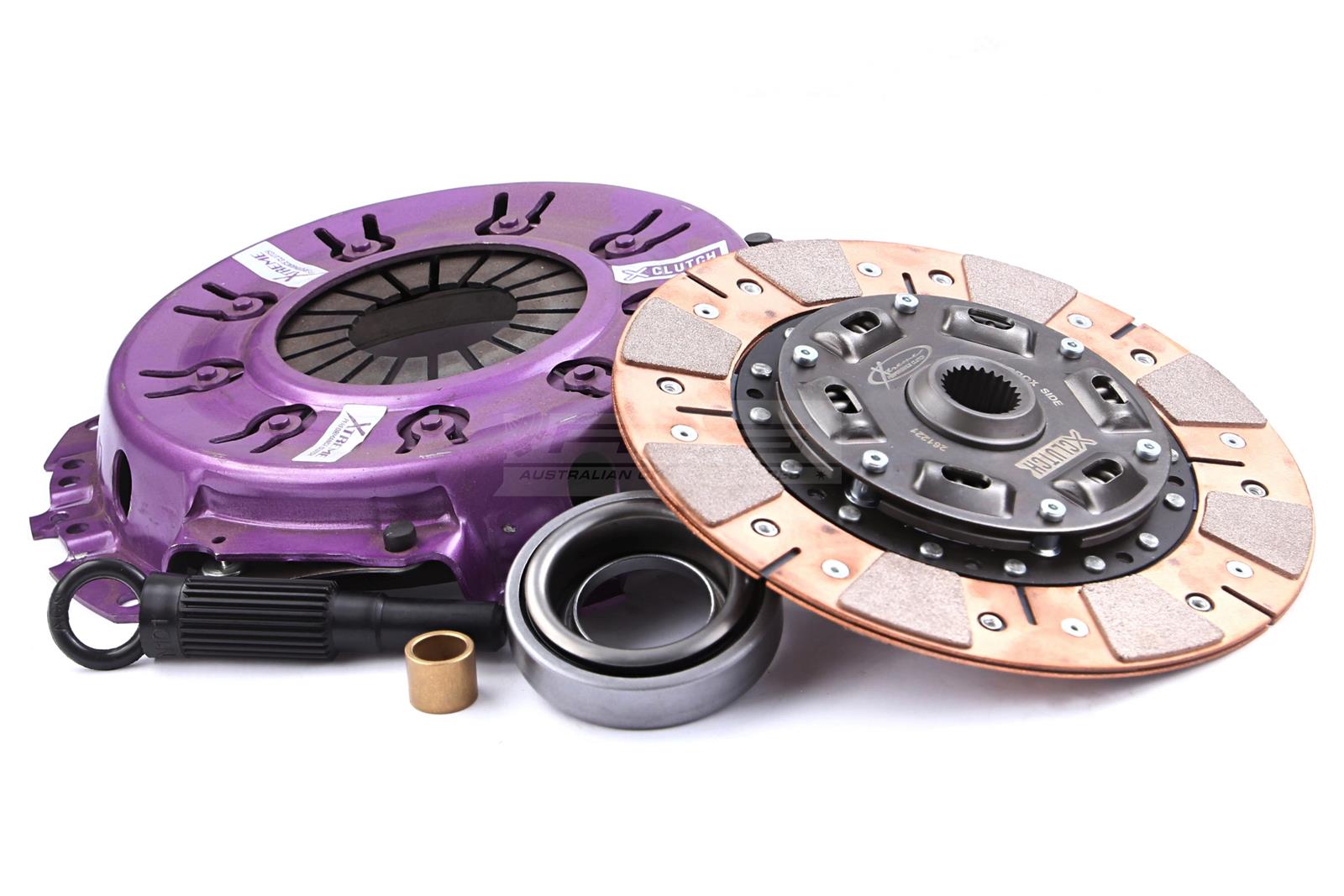

KNI23009-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 500Nm
• Clamp load 750Kg 50% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	24
Clutch Disc Spline Diameter (mm)	25.5
Torque (Nm)	500
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	750Kg (50% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Nissan	180SX	S13 | 1.8 Turbo	1988.09-1992.06	CA18DET 1809 Petrol 130 kW 177 BHP (1988.09 - 1992.06)	500	Track Use	Not included
Nissan	180SX	S13 | 1.8 Turbo	1989.04-1992.06	CA18DET 1809 Petrol 148 kW 201 BHP (1989.04 - 1992.06)	500	Track Use	Not included
Nissan	Silvia	S13 | 1.8 Turbo	1988.08-1994.03	CA18DT 1809 Petrol 124 kW 169 BHP (1988.08 - 1994.03)	500	Track Use	Not included
Nissan	180SX	S13 | 1.8 Turbo	1988.09-1992.06	CA18DT 1809 Petrol 124 kW 169 BHP (1988.09 - 1992.06)	500	Track Use	Not included
Nissan	Silvia	S13 | 1.8 Turbo	1988.08-1990.12	CA18DT 1809 Petrol 131 kW 178 BHP (1988.08 - 1990.12)	500	Track Use	Not included
Nissan	Bluebird	U12 | 1.8 Turbo	1985.12-1990.05	CA18T 1809 Petrol 99 kW 135 BHP (1985.12 - 1990.05)	500	Track Use	Not included
Nissan	Laurel	C31 | 1.8	1982.10-1984.10	CA18S 1809 Petrol 66 kW 90 BHP (1982.10 - 1984.10)	500	Track Use	Not included
Nissan	Laurel	C32 | 1.8	1984.10-1993.04	CA18S 1809 Petrol 66 kW 90 BHP (1984.10 - 1993.04)	500	Track Use	Not included
Nissan	Skyline	R31 | 1.8	1985.08-1989.04	CA18S 1809 Petrol 63 kW 85 BHP (1985.08 - 1989.04)	500	Track Use	Not included
