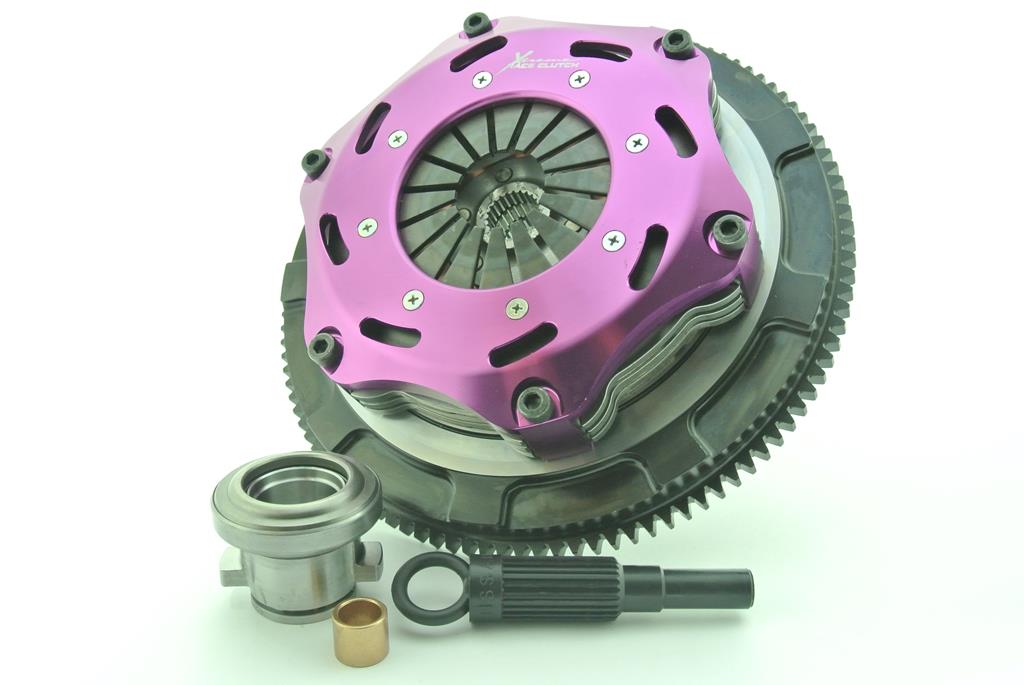

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
  Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1600Nm 1820Nm
Bearing Contact Diameter 44-52mm 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm 5mm
Assembly Mass (without flywheel) 4.75kg 4.75kg
Disc Set Static Mass 1.2kg
Friction Thickness New 2.6mm (0.103") 2.6mm (0.103")
Friction Thickness Worn 2.36mm (0.093") 2.36mm (0.093")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Clutch Disc Diameter (mm) 184
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 25.5
Torque (Nm) 1830
Flywheel Step +2.5mm
Design Triple Plate
Stage Multiplate - track use only
Tech Bulletins
Clamp Load 900Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Nissan 180SX S13 | 2.0 Turbo 1991.04 - 1994.03 SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) 1830 Motorsport Single Mass Flywheel
Nissan 180SX S13 | 2.0 Turbo 1992.01 - 1997.01 SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) 1830 Motorsport Single Mass Flywheel
Nissan Silvia S13 | 2.0 Turbo 1991.01 - 1993.09 SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) 1830 Motorsport Single Mass Flywheel
Nissan Silvia S13 | 2.0 Turbo 1991.01 - 1993.09 SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) 1830 Motorsport Single Mass Flywheel
Nissan 200SX S14 | 2.0 Turbo 1994.04 - 2000.11 SR20DET 1998 Petrol 147 kW 200 BHP (1994.04 - 2000.11) 1830 Motorsport Single Mass Flywheel
Nissan 200SX S14 | 2.0 Turbo 1993.10 - 1999.12 SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) 1830 Motorsport Single Mass Flywheel
Nissan Silvia S14 | 2.0 Turbo 1994.04 - 1999.09 SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) 1830 Motorsport Single Mass Flywheel
Nissan Silvia S14 | 2.0 Turbo 1993.10 - 1999.12 SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) 1830 Motorsport Single Mass Flywheel
