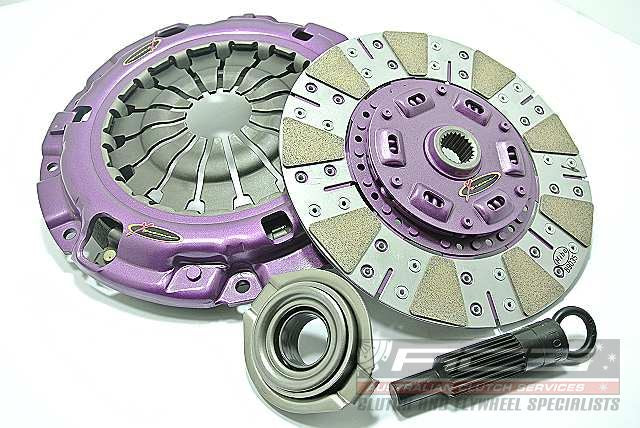

KMI25003-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 700Nm
• Clamp load 1100Kg 30% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	25.4
Torque (Nm)	700
Flywheel Step	-21.0mm/.827""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	1100Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	3000 GT	3.0 4WD (Z16A)	1989.06-1999.08	6G72 (DOHC 24V) 2972 Petrol 165 kW 224 BHP (1989.06 - 1999.08)	700	Track Use	Not included
Mitsubishi	3000 GT	3.0 Turbo 4WD (Z16A)	1990.01-1999.08	6G72-T 2972 Petrol 210 kW 286 BHP (1990.01 - 1999.08)	700	Track Use	Not included
Mitsubishi	GTO	3.0 AWD	1994.01-2000.12	6G72-T 2972 Petrol 210 kW 286 BHP (1994.01 - 2000.12)	700	Track Use	Not included
Mitsubishi	GTO	3.0 AWD	1996.05-2000.09	6G72-T 2972 Petrol 206 kW 280 BHP (1996.05 - 2000.09)	700	Track Use	Not included
