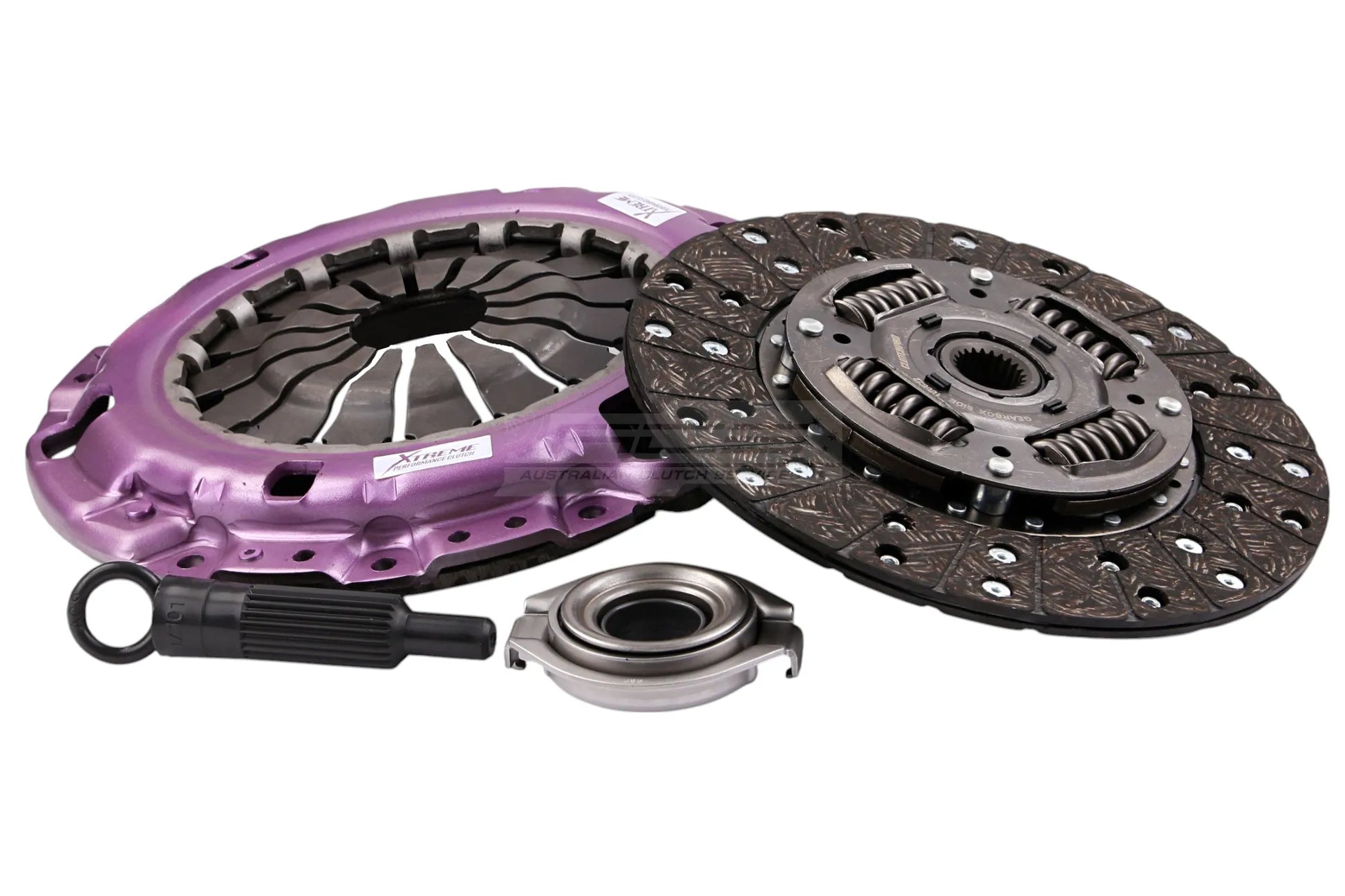

KMI25003-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 470Nm

• Clamp load 1100kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	25.4
Torque (Nm)	470
Flywheel Step	-21.0mm/.827""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	1100Kg (30% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	3000 GT	3.0 4WD (Z16A)	1989.06-1999.08	6G72 (DOHC 24V) 2972 Petrol 165 kW 224 BHP (1989.06 - 1999.08)	470	Street Upgrade	Not included
Mitsubishi	3000 GT	3.0 Turbo 4WD (Z16A)	1990.01-1999.08	6G72-T 2972 Petrol 210 kW 286 BHP (1990.01 - 1999.08)	470	Street Upgrade	Not included
Mitsubishi	GTO	3.0 AWD	1994.01-2000.12	6G72-T 2972 Petrol 210 kW 286 BHP (1994.01 - 2000.12)	470	Street Upgrade	Not included
Mitsubishi	GTO	3.0 AWD	1996.05-2000.09	6G72-T 2972 Petrol 206 kW 280 BHP (1996.05 - 2000.09)	470	Street Upgrade	Not included
