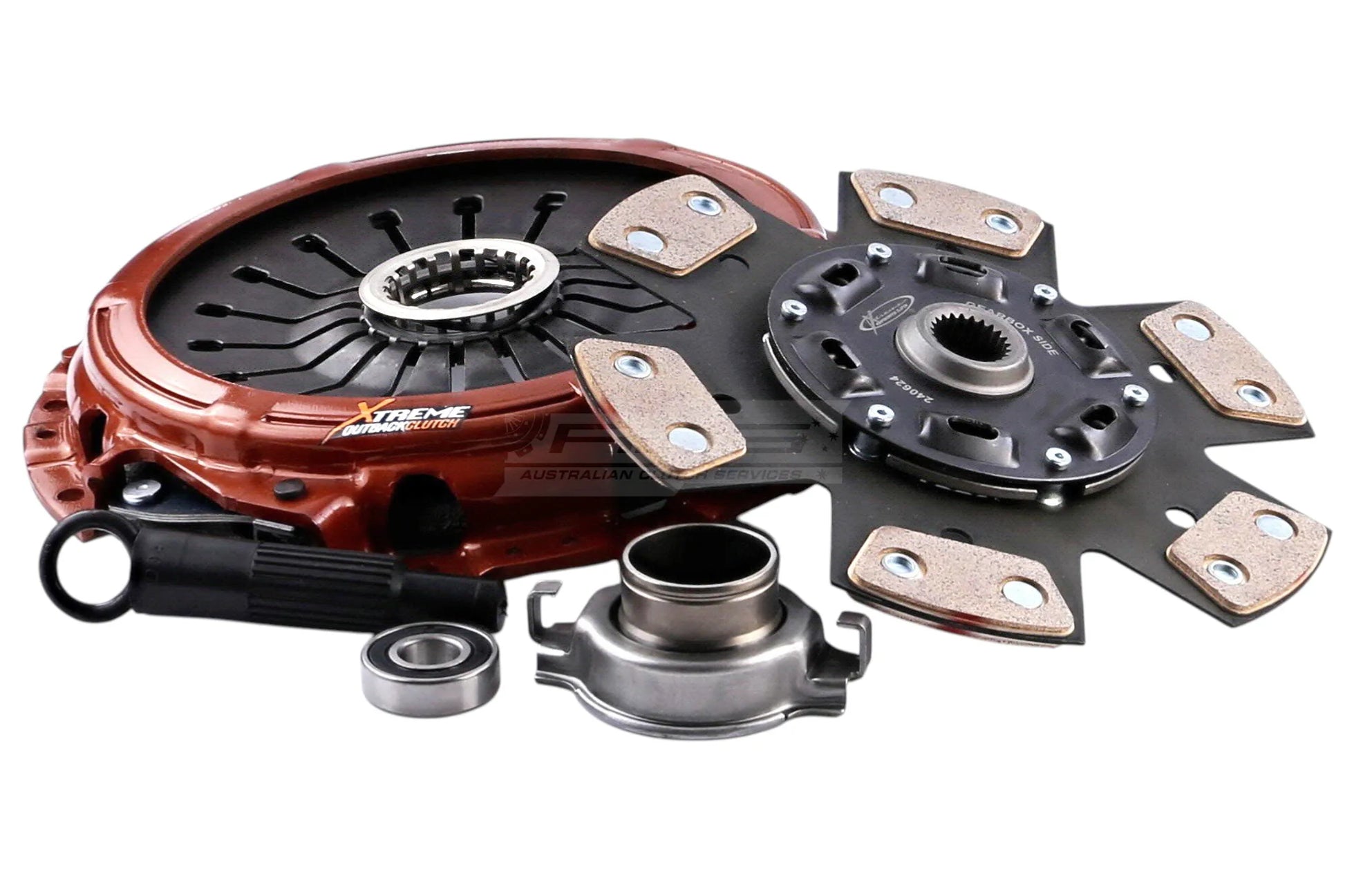

KMI25002-1BX

Recommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

• Torque capacity 870Nm
• Clamp load 1150Kgs 55% Increased over standard
• Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Designed and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Torque (Nm)	820
Clamp Load	1150kgs (55% inc)
Flywheel Step	Flat
Clutch Disc Diameter (mm)	250
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26,3
Design	Single Plate
Stage	Stage 2

Compatibility
Mitsubishi	Pajero	Gen. II | 2.8 TDiC (V46W, V26W, V36W)	1993.11-1997.07	4M40-A 2835 Diesel 71 kW 97 BHP (1993.11 - 1997.07)	VIN: V46V, V46W, V26C, V26W	Suits cars with OE Solid Flywheel
Mitsubishi	Pajero	Gen. II | 2.8 TD (V46W, V26W)	1994.06-1999.10	4M40-T 2835 Diesel 92 kW 125 BHP (1994.06 - 1999.10)	VIN: V46W	Suits cars with OE Solid Flywheel
Mitsubishi	Delica / Space Gear	2.8 D 4WD (PD8W, PE8W, PF8W)	1994.01-2006.12	4M40-T 2835 Diesel 92 kW 125 BHP (1994.01 - 2006.12)
Mitsubishi	L200	2.8 TD 4WD (K77T)	2003.04-2006.06	4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.06)
Mitsubishi	L200	2.8 TD (K67T)	2003.04-2006.06	4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.06)
Mitsubishi	L200	2.8 TD 4WD (K77T)	2003.04-2006.12	4M40-T 2835 Diesel 92 kW 125 BHP (2003.04 - 2006.12)
Mitsubishi	Delica / Space Gear	2.8 D 4WD (PD8W, PE8W)	1994.01-2006.12	4M40-T 2835 Diesel 103 kW 140 BHP (1994.01 - 2006.12)
Mitsubishi	Pajero	Gen. II | 2.8 TD (V46W, V26W)	1993.11-1999.10	4M40-T 2835 Diesel 103 kW 140 BHP (1993.11 - 1999.10)	VIN: V46W	Suits cars with OE Solid Flywheel
