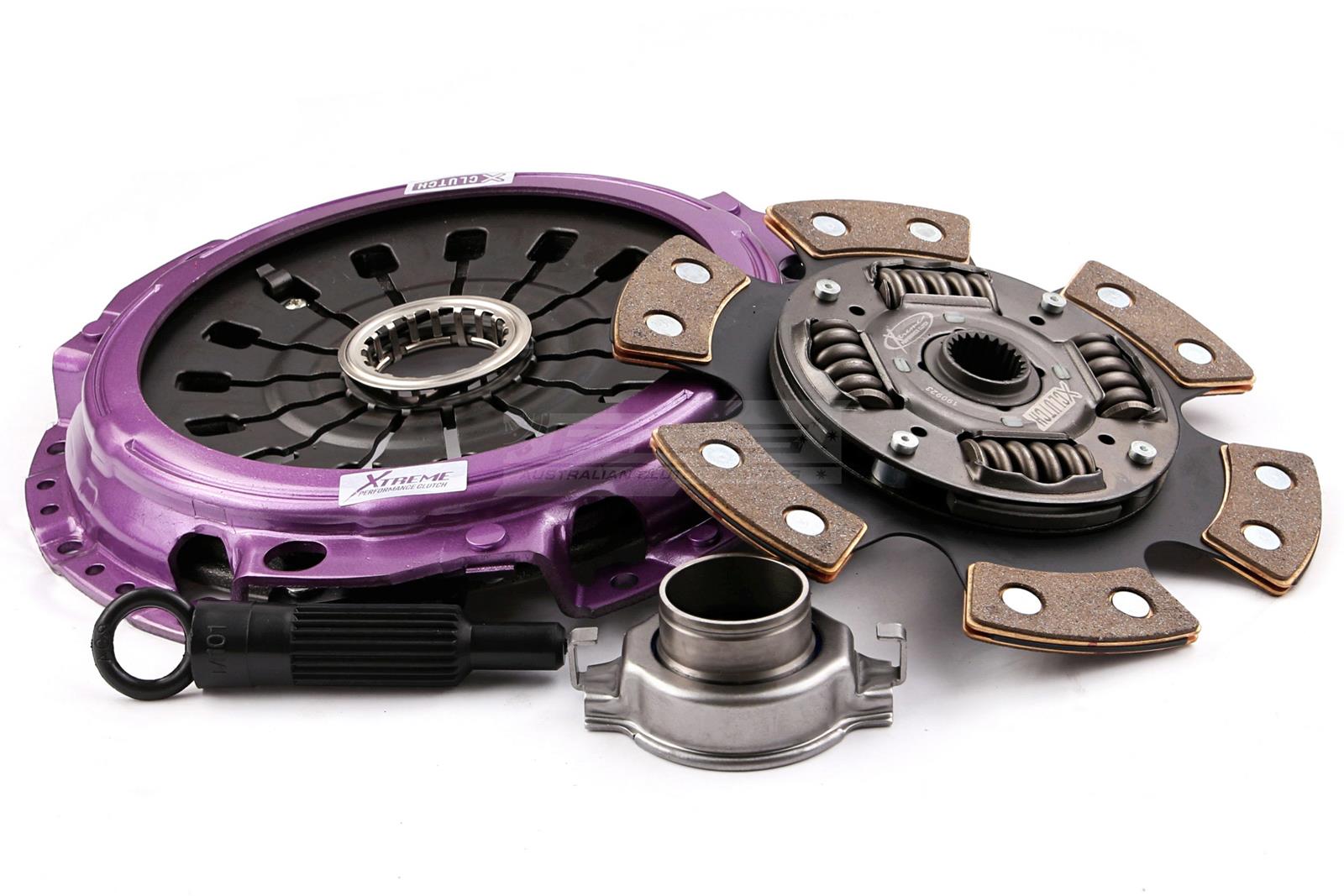

KMI24003-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 660Nm
• Clamp load 1000kg 25% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26.1
Torque (Nm)	670
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	1000Kg (25% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	Magna	3.5 LPG (TJ)	2002.07-2005.06	6G74 (SOHC 24V) 3497 Petrol 143 kW 194 BHP (2002.07 - 2005.06)	670	Track Use	Not included
Mitsubishi	Magna	3.5 LPG (TW)	2004.10-2005.07	6G74 (SOHC 24V) 3497 Petrol 143 kW 194 BHP (2004.10 - 2005.07)	670	Track Use	Not included
Mitsubishi	Magna	3.5 (TH)	1999.03-2000.08	6G74 (SOHC 24V) 3497 Petrol 147 kW 200 BHP (1999.03 - 2000.08)	670	Track Use	Not included
Mitsubishi	Magna	3.5 (TJ)	2000.08-2003.05	6G74 (SOHC 24V) 3497 Petrol 147 kW 200 BHP (2000.08 - 2003.05)	670	Track Use	Not included
Mitsubishi	Magna	3.5 (TJ)	2000.08-2003.05	6G74 (SOHC 24V) 3497 Petrol 155 kW 211 BHP (2000.08 - 2003.05)	670	Track Use	Not included
Mitsubishi	Magna	3.5 (TW)	2003.06-2005.07	6G74 (SOHC 24V) 3497 Petrol 155 kW 211 BHP (2003.06 - 2005.07)	670	Track Use	Not included
Mitsubishi	Magna	3.5 (TW)	2004.10-2005.07	6G74 (SOHC 24V) 3497 Petrol 157 kW 214 BHP (2004.10 - 2005.07)	670	Track Use	Not included
Mitsubishi	Magna	3.5 Series II Sports AWD (TJ)	2002.07-2003.05	6G74 (SOHC 24V) 3497 Petrol 159 kW 216 BHP (2002.07 - 2003.05)	670	Track Use	Not included
Mitsubishi	Magna	3.5 Sports VR-X (TJ)	2000.08-2003.05	6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2000.08 - 2003.05)	670	Track Use	Not included
Mitsubishi	Magna	3.5 VR-X (TW)	2003.06-2005.07	6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2003.06 - 2005.07)	670	Track Use	Not included
Mitsubishi	Magna	3.5 Series II Sports VR-X (TJ)	2002.08-2003.05	6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2002.08 - 2003.05)	670	Track Use	Not included
Mitsubishi	Magna	3.5 Series II Ralliart (TJ)	2002.08-2003.05	6G74 (SOHC 24V) 3497 Petrol 180 kW 245 BHP (2002.08 - 2003.05)	670	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 VR4 V6 24V (EC5A)	1996.09-2002.10	6A13TT 2498 Petrol 206 kW 280 BHP (1996.09 - 2002.10)	670	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 VR4 V6 24V (EC5W)	1996.09-2002.12	6A13TT 2498 Petrol 206 kW 280 BHP (1996.09 - 2002.12)	670	Track Use	Not included
