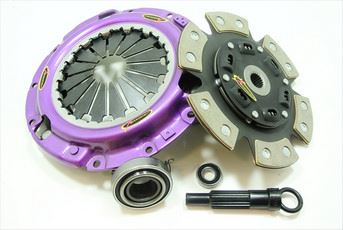

KMI23019-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 630Nm
• Clamp load 900kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.4
Torque (Nm)	630
Flywheel Step	-15.5mm/.610""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	900Kg (20% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Mitsubishi	Galant	Gen. VIII | 2.0 TDI (EA6A)	1996.09-2004.10	4D68 T 1998 Diesel 66 kW 90 BHP (1996.09 - 2004.10)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.0 TDI (EA6W)	1996.09-2003.10	4D68 T 1998 Diesel 66 kW 90 BHP (1996.09 - 2003.10)	630	Track Use	Not included
Mitsubishi	Magna	2.4 (TE)	1996.04-1997.06	4G64 (16V) 2351 Petrol 105 kW 143 BHP (1996.04 - 1997.06)	630	Track Use	Not included
Mitsubishi	Magna	2.4 (TF)	1997.06-1999.03	4G64 (16V) 2351 Petrol 105 kW 143 BHP (1997.06 - 1999.03)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VII | 2.0 V6-24 (E64A, E54A)	1992.11-1996.08	6A12 1999 Petrol 110 kW 150 BHP (1992.11 - 1996.08)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 V6 24V (EA5A)	2000.09-2004.10	6A13 2498 Petrol 118 kW 160 BHP (2000.09 - 2004.10)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 V6 24V (EA5W)	2000.09-2003.10	6A13 2498 Petrol 118 kW 160 BHP (2000.09 - 2003.10)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 V6 24V (EA5A)	1996.09-2000.09	6A13 2498 Petrol 120 kW 163 BHP (1996.09 - 2000.09)	630	Track Use	Not included
Mitsubishi	Galant	Gen. VIII | 2.5 V6 24V (EA5W)	1996.09-2000.09	6A13 2498 Petrol 120 kW 163 BHP (1996.09 - 2000.09)	630	Track Use	Not included
Mitsubishi	Diamante	2.5 (F13A, F15A)	1990.05-1996.07	6G73 2497 Petrol 129 kW 175 BHP (1990.05 - 1996.07)	630	Track Use	Not included
