ACS

KMI22002-1B

KMI22002-1B

€493,37 EUR
€493,37 EUR
In offerta Esaurito

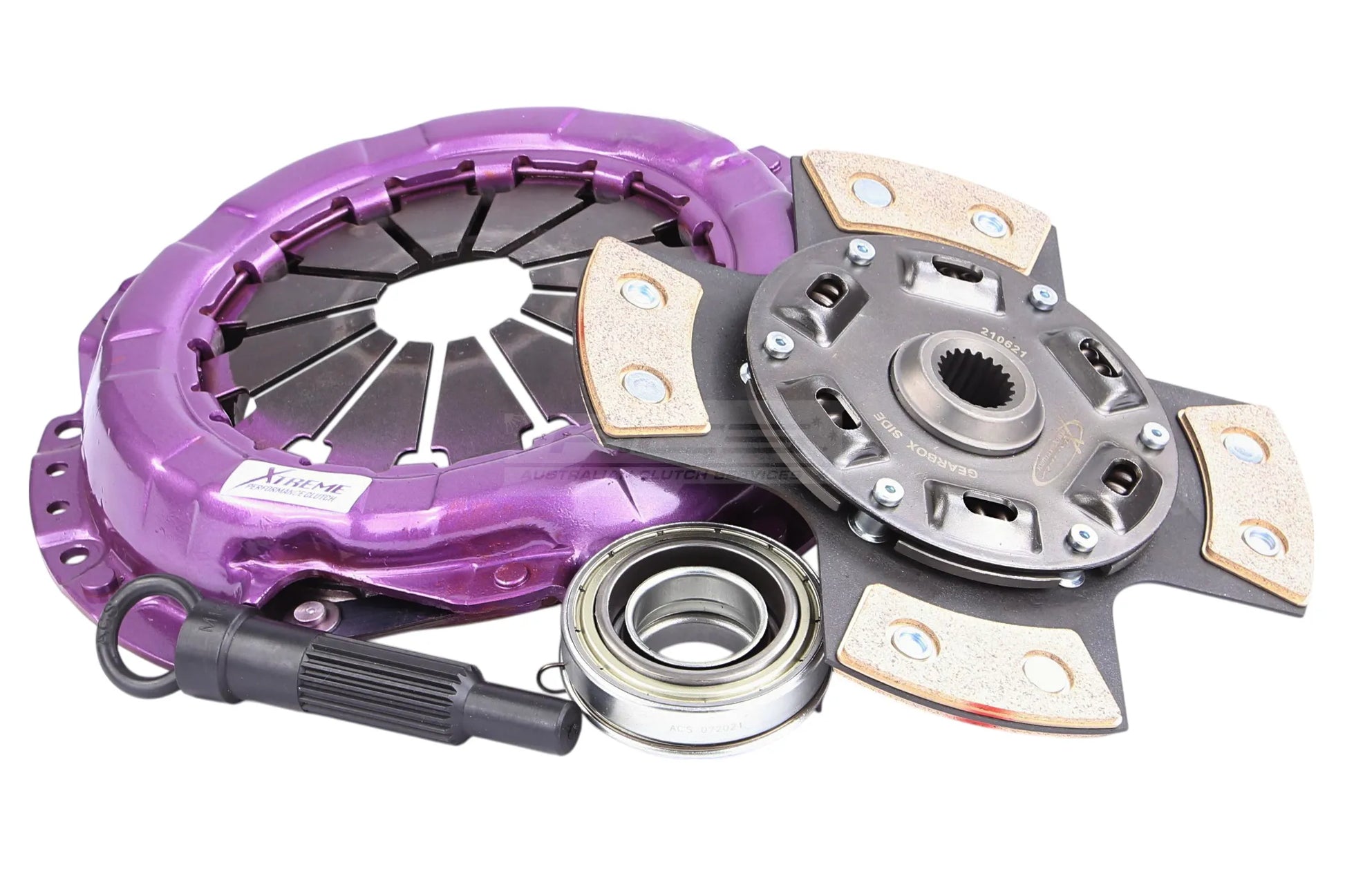

Xtreme Performance - sprung ceramic kit /-1B
Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 370Nm
  • Clamp load 600kg 30% Increased over standard
  • Sprung Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 215
Clutch Disc Spline Count 20
Clutch Disc Spline Diameter (mm) 22.4
Torque (Nm) 370
Flywheel Step 0
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 600Kg (30% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Hyundai Lantra Gen. I | 1.8 i.e. 16V 1990.10-1995.11 G4CR 1596 Petrol 78 kW 106 BHP (1990.10 - 1995.11) Suits vehicles manufactured between 11/1993 and 09/1995. 370 Track Use Not included
Hyundai Sonata Gen. II | 1.8 i 1988.09-1993.10 G4CM 1796 Petrol 70 kW 95 BHP (1988.09 - 1993.10) 370 Track Use Not included
Hyundai Sonata Gen. II | 3.0 i V6 1991.01-1993.10 G6AT 2972 Petrol 107 kW 145 BHP (1991.01 - 1993.10) 370 Track Use Not included
Hyundai Sonata Gen. III | 1.8 GLS 1996.07-1998.05 1795 Petrol 63 kW 86 BHP (1996.07 - 1998.05) 370 Track Use Not included
Hyundai Sonata Gen. III | 1.8 i 1993.05-1998.06 G4CM 1796 Petrol 72 kW 98 BHP (1993.05 - 1998.06) 370 Track Use Not included
Hyundai Sonata Gen. III | 3.0 i V6 1993.05-1998.06 G6AT 2972 Petrol 107 kW 146 BHP (1993.05 - 1998.06) 370 Track Use Not included
Proton Persona 400 418 GLXi 1996.05-2000.07 4 G 93 (DOHC) 1834 Petrol 85 kW 115 BHP (1996.05 - 2000.07) 370 Track Use Not included
Proton Putra 1.8 EXi (C99D) 1995.01-2000.11 4 G 93 P 1834 Petrol 103 kW 140 BHP (1995.01 - 2000.11) 370 Track Use Not included
Mitsubishi Colt Gen. II | 1.6 Turbo ECi (C13A) 1986.07-1988.04 G32BT 1597 Petrol 77 kW 105 BHP (1986.07 - 1988.04) 370 Track Use Not included
Mitsubishi Colt Gen. II | 1.6 Turbo ECi (C13A) 1984.02-1988.04 4G32 T/C 1597 Petrol 92 kW 125 BHP (1984.02 - 1988.04) 370 Track Use Not included
Mitsubishi Colt Gen. III | 1.8 GTi 16V Cat (C58A) 1990.06-1992.05 4G67 1836 Petrol 100 kW 136 BHP (1990.06 - 1992.05) 370 Track Use Not included
Mitsubishi Colt Gen. IV | 1.6 4WD (CC4A) 1993.08-1995.08 4G92 (SOHC 16V) 1597 Petrol 84 kW 114 BHP (1993.08 - 1995.08) 370 Track Use Not included
Mitsubishi Colt Gen. IV | 1.8 GTi 16V (CA5A) 1992.04-1996.04 4G93 (DOHC 16V) 1834 Petrol 103 kW 140 BHP (1992.04 - 1996.04) 370 Track Use Not included
Mitsubishi Cordia 1.8 Turbo ECi (A213A) 1984.11-1989.07 4G62-T 1795 Petrol 90 kW 122 BHP (1984.11 - 1989.07) 370 Track Use Not included
Mitsubishi Cordia 1.8 Turbo ECi (A213A) 1984.10-1989.07 4G62-T 1795 Petrol 100 kW 136 BHP (1984.10 - 1989.07) 370 Track Use Not included
Mitsubishi Cordia 1.8 Turbo ECi (A213A) 1983.04-1984.10 4G62-T 1795 Petrol 110 kW 150 BHP (1983.04 - 1984.10) 370 Track Use Not included
Mitsubishi Eclipse Gen. I | 2.0 i 16V (D22A, D27A) 1991.04-1995.11 4G63 (DOHC 16V) 1997 Petrol 110 kW 150 BHP (1991.04 - 1995.11) 370 Track Use Not included
Mitsubishi Eclipse Gen. I | 2.0 i 16V 4WD (D22A, D27A) 1991.04-1995.11 4G63 (DOHC 16V) 1997 Petrol 110 kW 150 BHP (1991.04 - 1995.11) 370 Track Use Not included
Mitsubishi Galant Gen. V | 2.0 Turbo ECi (E15A) 1984.06-1990.04 4G63-T (SOHC 8V) 1997 Petrol 110 kW 150 BHP (1984.06 - 1990.04) 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 (E39A. E38A. E33A) 1989.05-1992.12 4G63 (SOHC 8V) 1997 Petrol 77 kW 105 BHP (1989.05 - 1992.12) 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 (E39A. E38A. E33A) 1989.04-1992.10 4G63 (SOHC 8V) 1997 Petrol 80 kW 109 BHP (1989.04 - 1992.10) Suits vehicles manufactured until 07/1990. 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 4WD (E33A. E38A. E39A) 1989.04-1992.10 4G63 (SOHC 8V) 1997 Petrol 80 kW 109 BHP (1989.04 - 1992.10) 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A) 1988.11-1992.10 4G63 (DOHC 16V) 1997 Petrol 106 kW 144 BHP (1988.11 - 1992.10) Suits vehicles manufactured until 07/1990. 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A) 1988.11-1992.10 4G63 (DOHC 16V) 1997 Petrol 107 kW 146 BHP (1988.11 - 1992.10) Suits vehicles manufactured until 07/1990. 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 (E39A. E38A. E33A) 1987.11-1992.10 4G63 (SOHC 8V) 1997 Petrol 80 kW 109 BHP (1987.11 - 1992.10) 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 4WD (E33A. E38A. E39A) 1988.12-1992.10 4G63 (SOHC 8V) 1997 Petrol 80 kW 109 BHP (1988.12 - 1992.10) 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A) 1987.11-1992.10 4G63 (DOHC 16V) 1997 Petrol 106 kW 144 BHP (1987.11 - 1992.10) Suits vehicles manufactured until 07/1990. 370 Track Use Not included
Mitsubishi Galant Gen. VI | 2.0 GTi 16V (E39A. E38A. E33A) 1988.11-1992.10 4G63 (DOHC 16V) 1997 Petrol 107 kW 145 BHP (1988.11 - 1992.10) Suits vehicles manufactured until 07/1990. 370 Track Use Not included
Mitsubishi Galant Gen. VII | 2.0 (E55A) 1993.04-1995.03 4G63 (SOHC 16V) 1997 Petrol 90 kW 122 BHP (1993.04 - 1995.03) 370 Track Use Not included
Mitsubishi Galant Gen. VII | 2.0 GLSI (E55A) 1992.11-1996.08 4G63 (SOHC 16V) 1997 Petrol 101 kW 137 BHP (1992.11 - 1996.08) 370 Track Use Not included
Mitsubishi Galant Gen. VII | 2.0 GLSI 4WD (E75A) 1992.11-1996.08 4G63 (SOHC 16V) 1997 Petrol 101 kW 137 BHP (1992.11 - 1996.08) 370 Track Use Not included
Mitsubishi Galant Gen. VII | 2.0 1992.11-1996.08 4G63 (SOHC 16V) 1997 Petrol 100 kW 136 BHP (1992.11 - 1996.08) 370 Track Use Not included
Mitsubishi Lancer Gen. IV | 1.6 16V (C76A. C66A) 1992.06-1994.05 4G92 (SOHC 16V) 1597 Petrol 83 kW 113 BHP (1992.06 - 1994.05) 370 Track Use Not included
Mitsubishi Lancer Gen. IV | 1.6 4WD (C76A. C66A) 1992.06-1993.11 4G92 (SOHC 16V) 1597 Petrol 84 kW 114 BHP (1992.06 - 1993.11) 370 Track Use Not included
Mitsubishi Lancer Gen. IV | 1.8 GTi 16V (C68A) 1989.11-1992.05 4G67 1836 Petrol 100 kW 136 BHP (1989.11 - 1992.05) 370 Track Use Not included
Mitsubishi Lancer Gen. IV | 1.8 GTi 16V (C69A) 1992.06-1993.12 4G93 (DOHC 16V) 1834 Petrol 103 kW 140 BHP (1992.06 - 1993.12) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.6 16V (CB4A) 1994.02-1996.12 4G92 (SOHC 16V) 1597 Petrol 66 kW 90 BHP (1994.02 - 1996.12) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.6 16V (CB4A) 1992.06-1996.12 4G92 (SOHC 16V) 1597 Petrol 83 kW 113 BHP (1992.06 - 1996.12) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.6 16V 4WD (CD4A) 1992.06-1996.12 4G92 (SOHC 16V) 1597 Petrol 83 kW 113 BHP (1992.06 - 1996.12) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 16V (CB5A) 1992.06-1993.12 4G93 (DOHC 16V) 1834 Petrol 103 kW 140 BHP (1992.06 - 1993.12) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 GTi (CB5A) 1991.07-1993.07 4G93 (DOHC 16V) 1834 Petrol 100 kW 136 BHP (1991.07 - 1993.07) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 16V (CB5A) 1992.09-1996.07 4G93 (SOHC 16V) 1834 Petrol 86 kW 117 BHP (1992.09 - 1996.07) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.6 16V (CB4W) 1992.12-2003.10 4G92 (SOHC 16V) 1597 Petrol 83 kW 113 BHP (1992.12 - 2003.10) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.6 16V 4WD (CD4W) 1992.12-2003.10 4G92 (SOHC 16V) 1597 Petrol 83 kW 113 BHP (1992.12 - 2003.10) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 4WD (CD5W) 1995.03-2003.10 4G93-T 1834 Petrol 158 kW 215 BHP (1995.03 - 2003.10) 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 (CC5A) 1992.09-1996.07 4G93 (DOHC 16V) 1834 Petrol 115 kW 156 BHP (1992.09 - 1996.07) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. V | 1.8 (CC5A) 1992.09-1996.07 4G93 (SOHC 16V) 1834 Petrol 86 kW 117 BHP (1992.09 - 1996.07) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Lancer Gen. VI | 1.6 16V (CK4A) 1995.12-2003.08 4G92 (SOHC 16V) 1597 Petrol 66 kW 90 BHP (1995.12 - 2003.08) Suits vehicles manufactured until 10/1996. 370 Track Use Not included
Mitsubishi Magna 2.6 (TN) 1987.04-1989.04 4G54 2555 Petrol 83 kW 113 BHP (1987.04 - 1989.04) 370 Track Use Not included
Mitsubishi Magna 2.6 (TN) 1987.04-1989.04 4G54 2555 Petrol 93 kW 126 BHP (1987.04 - 1989.04) 370 Track Use Not included
Mitsubishi Magna 2.6 (TN) 1987.04-1989.04 G54B 2555 Petrol 114 kW 155 BHP (1987.04 - 1989.04) 370 Track Use Not included
Mitsubishi Mirage Gen. IV | 1.6 (CJ4A) 1991.12-1995.08 4G92 (SOHC 16V) 1597 Petrol 88 kW 119 BHP (1991.12 - 1995.08) 370 Track Use Not included
Mitsubishi Mirage Gen. IV | 1.6 4WD (CL4A) 1992.03-1993.07 4G92 (SOHC 16V) 1597 Petrol 84 kW 114 BHP (1992.03 - 1993.07) 370 Track Use Not included
Mitsubishi Mirage Gen. IV | 1.6 4WD (CL4A) 1991.12-1995.08 4G92 (SOHC 16V) 1597 Petrol 88 kW 119 BHP (1991.12 - 1995.08) 370 Track Use Not included
Mitsubishi Mirage Gen. IV | 1.6 ZR (CJ4A) 1995.09-1999.08 4G92 (DOHC 16V) 1597 Petrol 128 kW 174 BHP (1995.09 - 1999.08) 370 Track Use Not included
Mitsubishi Mirage Gen. V | 1.6 ZR (CJ4A) 1995.09-1999.08 4G92 (DOHC 16V) 1597 Petrol 128 kW 174 BHP (1995.09 - 1999.08) 370 Track Use Not included
Mitsubishi Mirage Gen. V | 1.6 (CJ4A) 1999.09-2003.07 4G92 (SOHC 16V) 1597 Petrol 84 kW 114 BHP (1999.09 - 2003.07) 370 Track Use Not included
Mitsubishi Space Wagon 2.0 GLX (D04W) 1986.06-1988.05 G63B 1997 Petrol 62 kW 84 BHP (1986.06 - 1988.05) 370 Track Use Not included
Mitsubishi Space Wagon 2.0 GLX 4WD (D08W) 1986.06-1988.05 G63B 1997 Petrol 62 kW 84 BHP (1986.06 - 1988.05) 370 Track Use Not included
Mitsubishi Space Wagon 1.8 (N31W) 1991.10-1998.10 4G93 (SOHC 16V) 1834 Petrol 90 kW 122 BHP (1991.10 - 1998.10) 370 Track Use Not included
Mitsubishi Space Wagon 1.8 4WD (N41W) 1991.10-1998.10 4G93 (SOHC 16V) 1834 Petrol 90 kW 122 BHP (1991.10 - 1998.10) 370 Track Use Not included
Mitsubishi Space Wagon 2.0 (N33W) 1992.10-1998.10 4G63 (SOHC 16V) 1997 Petrol 98 kW 133 BHP (1992.10 - 1998.10) 370 Track Use Not included
Mitsubishi Space Wagon 2.0 (N33W) 1991.05-1997.10 4G63 (SOHC 8V) 1997 Petrol 77 kW 105 BHP (1991.05 - 1997.10) 370 Track Use Not included
Mitsubishi Space Wagon 2.0 4WD (N43W) 1992.10-1998.10 4G63 (SOHC 16V) 1997 Petrol 98 kW 133 BHP (1992.10 - 1998.10) 370 Track Use Not included
Mitsubishi Space Runner 1.8 (N11W) 1996.06-1999.08 4G93 (SOHC 16V) 1834 Petrol 85 kW 116 BHP (1996.06 - 1999.08) 370 Track Use Not included
Mitsubishi Space Runner 1.8 (N11W) 1991.10-1999.08 4G93 (SOHC 16V) 1834 Petrol 90 kW 122 BHP (1991.10 - 1999.08) 370 Track Use Not included
Mitsubishi Space Runner 1.8 4WD (N21W) 1996.06-1999.08 4G93 (SOHC 16V) 1834 Petrol 85 kW 116 BHP (1996.06 - 1999.08) 370 Track Use Not included
Mitsubishi Space Runner 1.8 4WD (N21W) 1991.10-1999.08 4G93 (SOHC 16V) 1834 Petrol 90 kW 122 BHP (1991.10 - 1999.08) 370 Track Use Not included
