Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

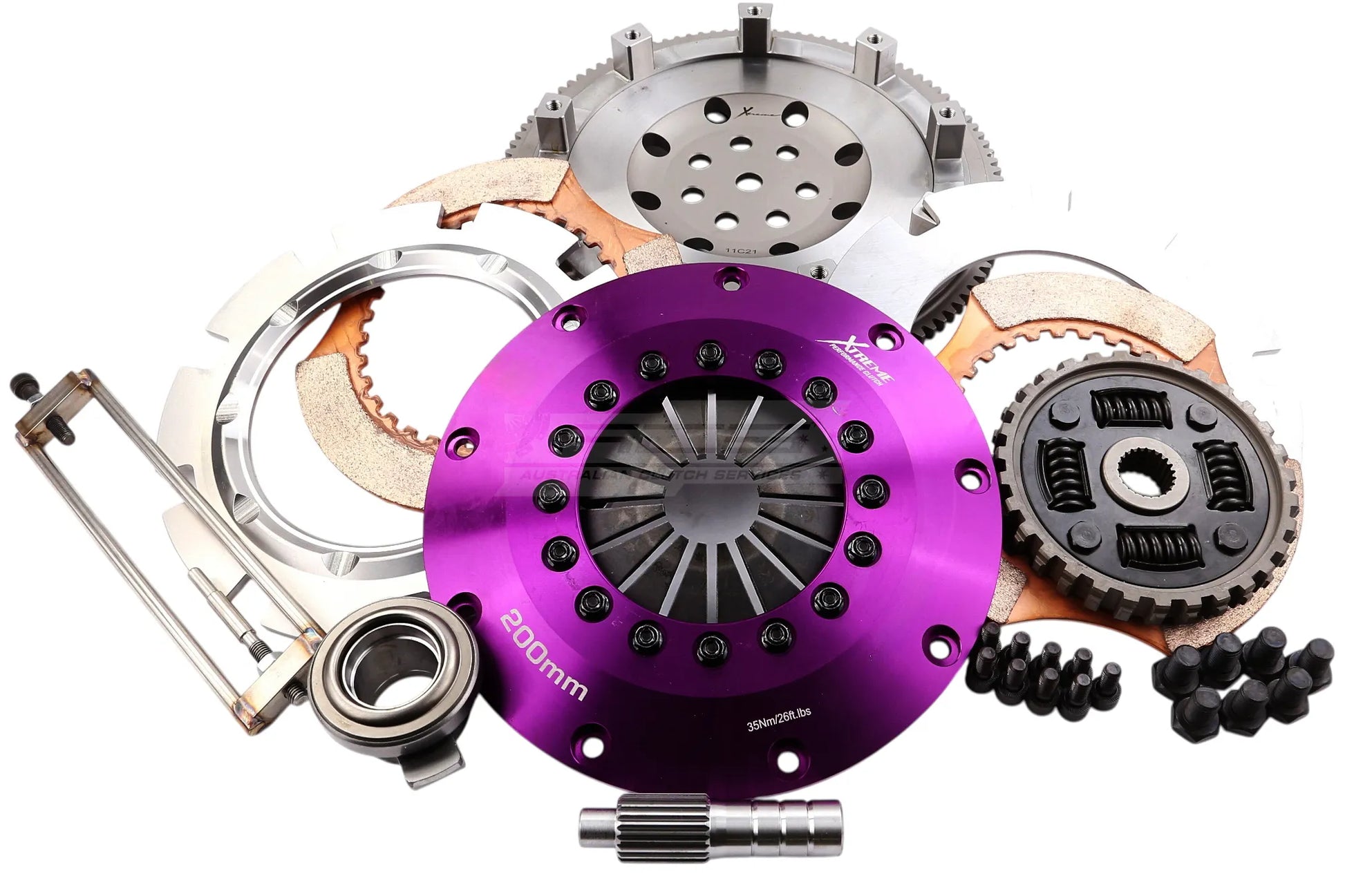

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")
Clutch Disc Diameter (mm) 200
Clutch Disc Spline Count 23
Clutch Disc Spline Diameter (mm) 26.1
Torque (Nm) 1200
Flywheel Step +2.2mm
Design Twin Plate
Stage Multiplate - track use only
Tech Bulletins TSB-200-2-X-1TSB-227
Clamp Load 1100Kg
Recommended for Motorsport
Ring Gear Tooth count
Additional infotmation
Compatibility
Mitsubishi Lancer EVO VIII - 260 (CT9A) 2004.03-2005.07 4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VII (CT9A) 2001.01-2003.01 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IV (CN9A) 1996.08-1997.12 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1996.08 - 1997.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VI (CP9A) 1999.01-2001.02 4G63 Turbo 1997 Petrol 207 kW 281 BHP (1999.01 - 2001.02) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO V (CP9A) 1998.01-1998.12 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VII (CT9A) 2001.01-2003.01 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IX (CT9A) 2005.01-2007.09 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII (CT9A) 2003.04-2005.03 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IX (CT9A) 2005.08-2006.09 4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-300 (CT9A) 2003.04-2004.04 4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IX - FQ-300 (CT9A) 2005.06-2006.12 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-300 (CT9A) 2003.04-2004.04 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-320 (CT9A) 2004.04-2006.08 4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-330 (CT9A) 2003.10-2006.08 4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-340 (CT9A) 2004.04-2005.03 4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IX - FQ-340 (CT9A) 2005.06-2007.12 4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO IX - FQ-360 (CT9A) 2006.07-2007.12 4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VIII - FQ-400 (CT9A) 2004.10-2006.08 4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO V - RS450 Ralliart (CP9A) 1998.01-1998.06 4G63 Turbo 1997 Petrol 336 kW 456 BHP (1998.01 - 1998.06) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
