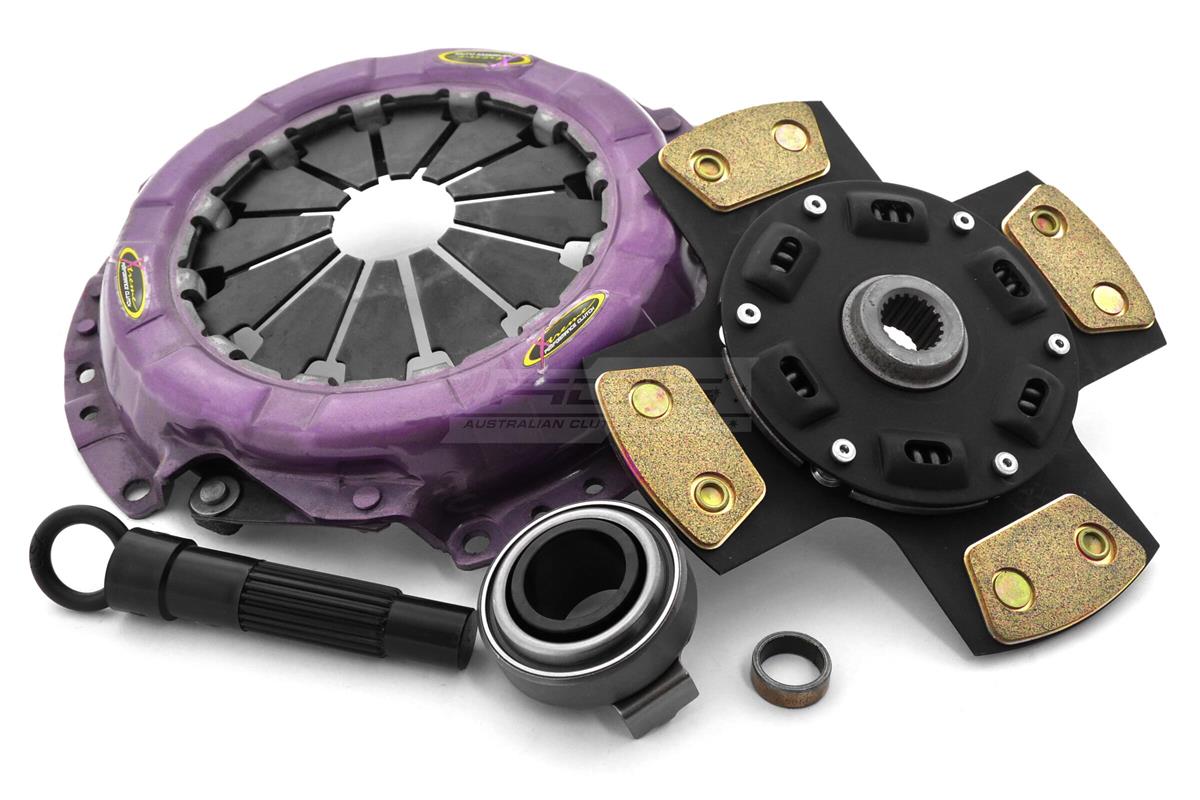

KHN22026-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 450Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	450
Flywheel Step
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Civic	Gen. IX | 1.8 i-VTEC (FK2)	2012.02-2016.12	R18Z4 1798 Petrol 104 kW 141 BHP (2012.02 - 2016.12)	450	Track Use	Not included
Honda	Civic	Gen. IX | 1.8 i-VTEC (FK2)	2014.01-2016.12	R18Z4 1798 Petrol 104 kW 141 BHP (2014.01 - 2016.12)	450	Track Use	Not included
Honda	Civic	Gen. IX | 1.6 (FB7, FB1)	2011.09-2016.12	R16B1, R16B2 1597 Petrol 92 kW 125 BHP (2011.09 - 2016.12)	450	Track Use	Not included
Honda	Civic	Gen. IX | 1.8 (FB2)	2012.02-2016.12	R18A1 1799 Petrol 104 kW 141 BHP (2012.02 - 2016.12)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.8 (FN1, FK2)	2005.09-2011.12	R18A2 1799 Petrol 103 kW 140 BHP (2005.09 - 2011.12)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.6	2005.09-2012.12	R16A1 1595 Petrol 92 kW 125 BHP (2005.09 - 2012.12)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.6	2012.01-2012.12	R16B1 1597 Petrol 92 kW 125 BHP (2012.01 - 2012.12)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.6 (FD6)	2005.09-2012.12	R16A1 1595 Petrol 84 kW 114 BHP (2005.09 - 2012.12)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.8 (FD1, FD7, FA1)	2005.09-2012.02	R18A1, R18A2 1799 Petrol 103 kW 140 BHP (2005.09 - 2012.02)	450	Track Use	Not included
Honda	Civic	Gen. VIII | 1.8 EXS Flex	2006.11-2013.05	R18A1 1799 Petrol 103 kW 140 BHP (2006.11 - 2013.05)	450	Track Use	Not included
