ACS

KHN22005-1C

KHN22005-1C

€783,28 EUR
€783,28 EUR
In offerta Esaurito

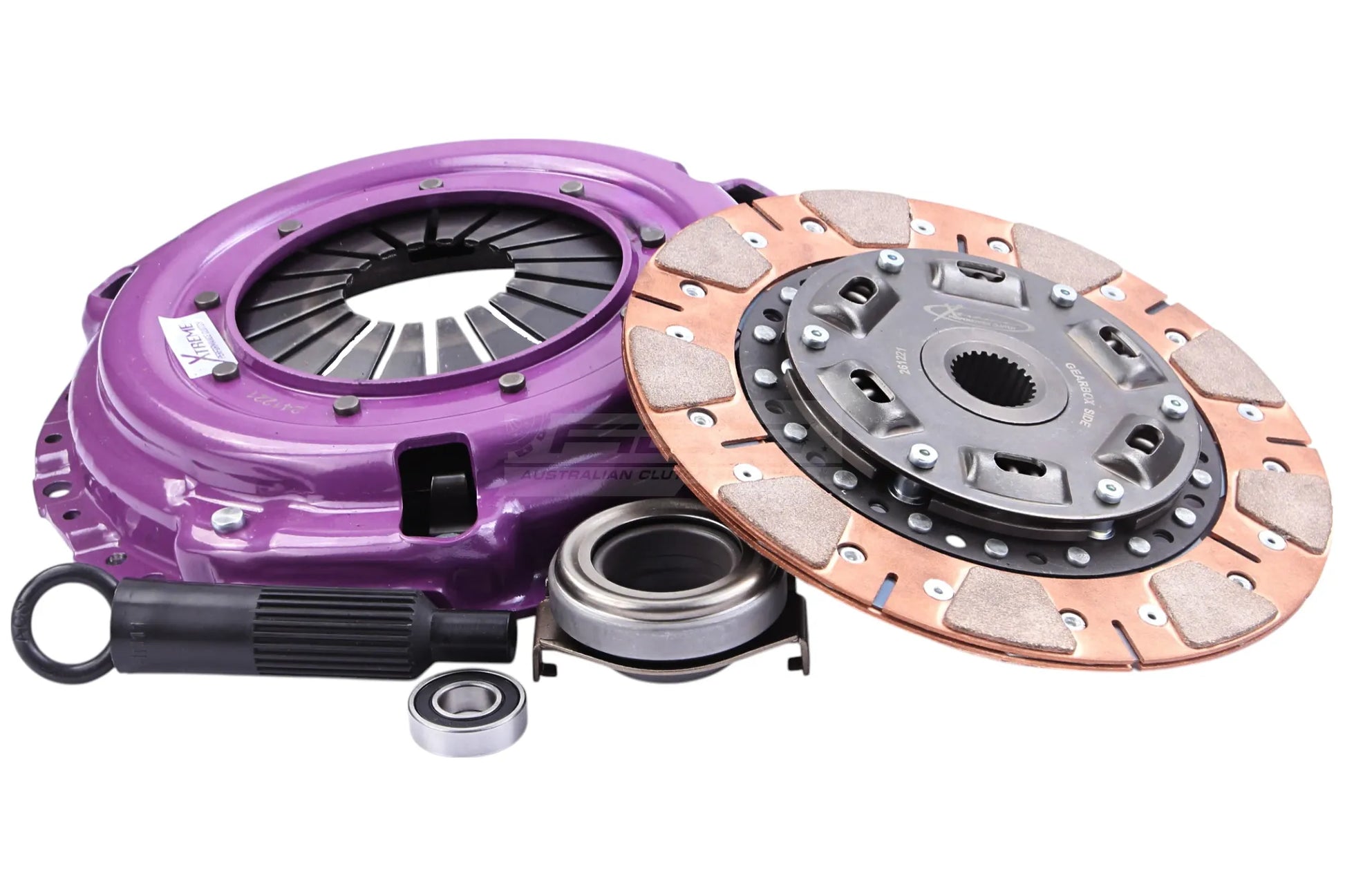

Xtreme Performance - Cushioned Ceramic kit /-1C
Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

Specifications:
  • Torque capacity 410Nm
  • Clamp load 635Kg 45% Increased over standard
  • Cushioned Ceramic Friction Disc
  • Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

Xtreme Performance
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
What's in the Box?
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
Clutch Disc Diameter (mm) 220
Clutch Disc Spline Count 24
Clutch Disc Spline Diameter (mm) 26
Torque (Nm) 410
Flywheel Step +2.75mm/.108""
Design Single Plate
Stage Stage 2
Tech Bulletins
Clamp Load 635Kg (45% inc.)
Recommended for Track - Stage 2
Ring Gear Tooth count
Additional infotmation
Compatibility
Honda Civic Gen. VI | 1.8 16V (MC2) 1998.04-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) 410 Track Use Not included
Honda Civic Gen. VI | 1.8 16V (MB6) 1997.01-2001.02 B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) 410 Track Use Not included
Honda Civic Gen. VI | 1.6 VTEC Type R (EK9) 1997.08-2000.09 B16B 1595 Petrol 136 kW 185 BHP (1997.08 - 2000.09) 410 Track Use Not included
Honda Civic Gen. VI | 1.6 VTi (EK4) 1995.11-2001.02 B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) 410 Track Use Not included
Honda Civic Gen. VI | 1.6 i Vtec (EM1) 1999.04-2000.12 B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) 410 Track Use Not included
Honda CR-V Gen. I | 2.0 (RD1) 1999.04-2002.02 B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) 410 Track Use Not included
Honda CR-V Gen. I | 2.0 16V 4WD (RD1. RD3) 1995.10-2001.12 B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) 410 Track Use Not included
Honda CR-V Gen. I | 2.0 16V 4WD (RD1. RD3) 1999.01-2002.02 B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) 410 Track Use Not included
Honda Domani 1.8 (MA5) 1992.10-1997.12 B18B6 1834 Petrol 103 kW 140 BHP (1992.10 - 1997.12) 410 Track Use Not included
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) 410 Track Use Not included
Honda Integra 1.8 (DC2) 1993.07-2001.11 B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) 410 Track Use Not included
Honda Integra 1.8 SiR (DC2) 1993.09-2001.08 B18C 1797 Petrol 132 kW 180 BHP (1993.09 - 2001.08) 410 Track Use Not included
Honda Integra 1.8 Type-R (DC2) 1997.11-2001.10 B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) 410 Track Use Not included
Honda Integra 1.8 Type-R (DC2) 1993.09-2001.08 B18C1 1797 Petrol 147 kW 200 BHP (1993.09 - 2001.08) 410 Track Use Not included
Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) 410 Track Use Not included
Honda Integra 1.8 VTiR (DC2) 1993.07-1999.11 B18C1 1797 Petrol 127 kW 173 BHP (1993.07 - 1999.11) 410 Track Use Not included
Honda Integra 1.8 ESI (DB7) 1993.09-2001.08 B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) 410 Track Use Not included
Honda Integra 1.8 (DB7) 1993.09-2001.08 B18C3 1797 Petrol 147 kW 200 BHP (1993.09 - 2001.08) 410 Track Use Not included
Honda Integra 1.8 VTEC (DB8) 1993.09-2001.08 B18C 1797 Petrol 132 kW 180 BHP (1993.09 - 2001.08) 410 Track Use Not included
Honda Orthia / Partner 1.8 (EL1, EY4) 1995.10-2001.09 B18B6 1834 Petrol 103 kW 140 BHP (1995.10 - 2001.09) 410 Track Use Not included
Honda Orthia / Partner 2.0 (EL2) 1995.10-2001.09 B20B 1973 Petrol 110 kW 150 BHP (1995.10 - 2001.09) 410 Track Use Not included
Honda Orthia / Partner 2.0 4WD (EL3) 1995.10-2001.09 B20B 1973 Petrol 110 kW 150 BHP (1995.10 - 2001.09) 410 Track Use Not included
