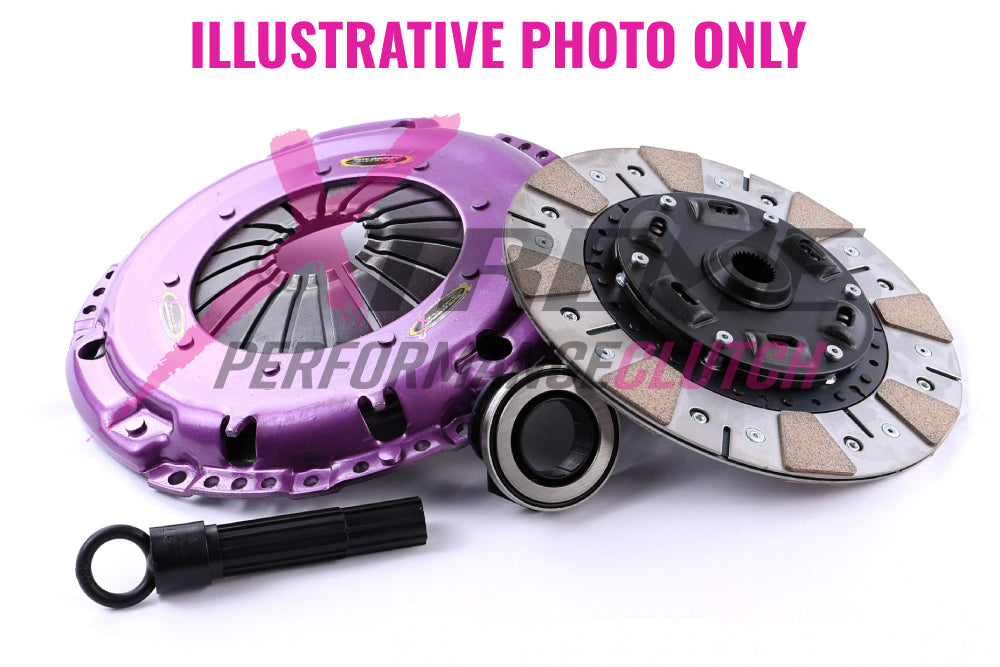

KHN22002-1C

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 370Nm
• Clamp load 550Kg 60% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	215
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	370
Flywheel Step	-15.5mm/.610""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	550Kg (60% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	City	Gen. IV | 1.2	2003.05-2005.09	L12A2 1243 Petrol 58 kW 79 BHP (2003.05 - 2005.09)	370	Track Use	Not included
Honda	Accord	Gen. III | 2.0 EX	1985.11-1989.12	A20A1 1955 Petrol 75 kW 102 BHP (1985.11 - 1989.12)	370	Track Use	Not included
Honda	Accord	Gen. III | 2.0 EX	1985.11-1989.05	A20A2 1955 Petrol 78 kW 106 BHP (1985.11 - 1989.05)	370	Track Use	Not included
Honda	Accord	Gen. III | 2.0 EXi	1986.01-1989.12	A20A3 1955 Petrol 85 kW 116 BHP (1986.01 - 1989.12)	370	Track Use	Not included
Honda	Accord	Gen. III | 2.0 EXi	1987.10-1989.12	A20A3 1955 Petrol 85 kW 116 BHP (1987.10 - 1989.12)	370	Track Use	Not included
Honda	Accord	Gen. III | 2.0 EXi	1988.01-1989.12	A20A3 1955 Petrol 90 kW 122 BHP (1988.01 - 1989.12)	370	Track Use	Not included
Honda	Prelude	BA | 2.0 EX 16V	1986.04-1987.12	B20A1 1958 Petrol 101 kW 137 BHP (1986.04 - 1987.12)	370	Track Use	Not included
