KHN20009-1B

Recommended for: Motorsport Applications

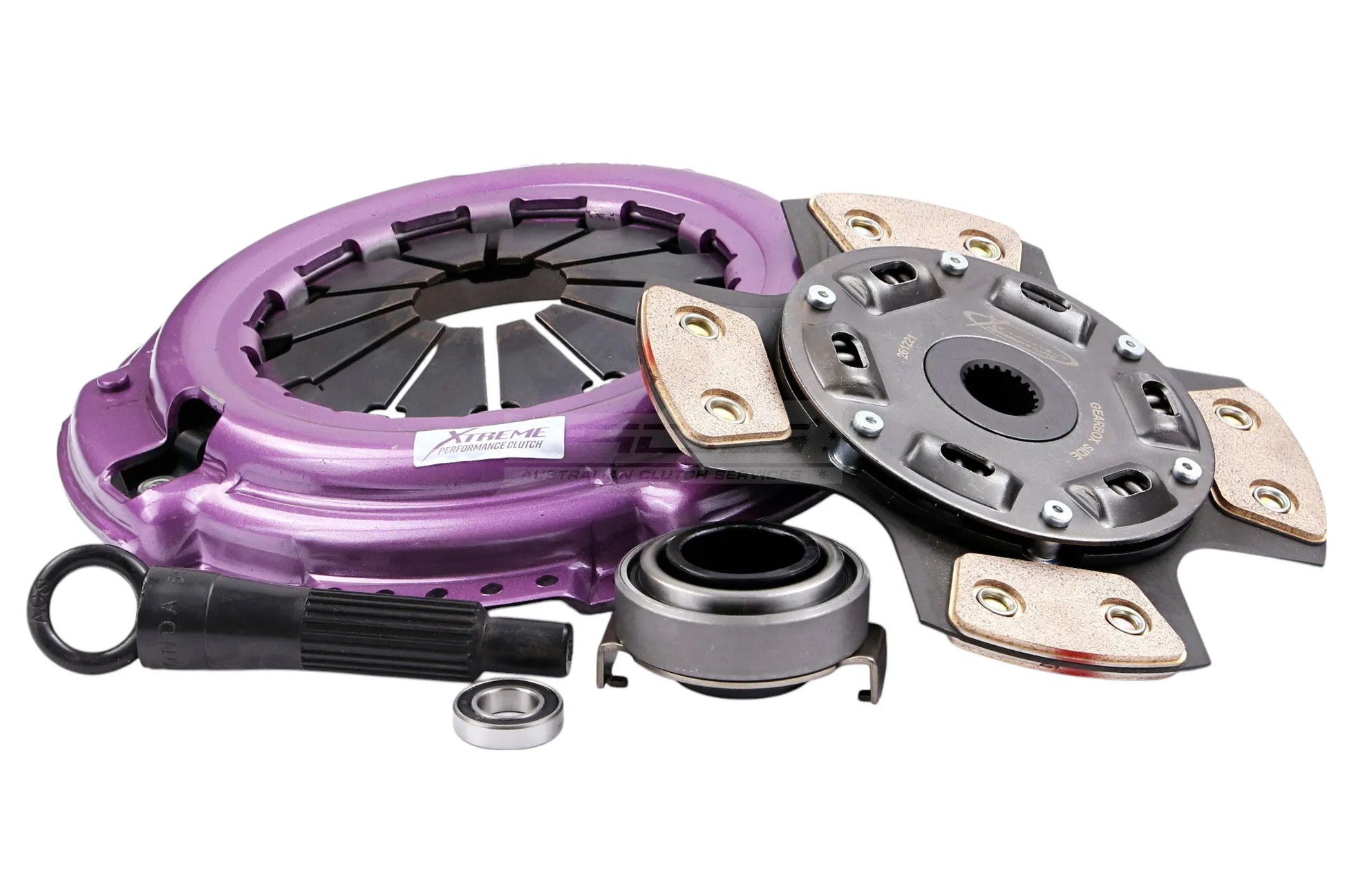

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 335Nm
• Clamp load 570kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	190
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	320
Flywheel Step	-1.0mm
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	570Kg (20% inc.
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Jazz	Gen. III | 1.2 (GG1)	2008.07-	L12B1 1198 Petrol 66 kW 90 BHP (2008.07 - )	320	Track Use	Not included
Honda	Jazz	Gen. IV | 1.3	2015.09-	L13B, L13B2 1318 Petrol 75 kW 102 BHP (2015.09 - )	320	Track Use	Not included
Honda	Jazz	Gen. III | 1.4	2008.11-	L13Z1 1339 Petrol 74 kW 101 BHP (2008.11 - )	320	Track Use	Not included
Honda	Jazz	Gen. III | 1.3 (GE6, GG3, GG6)	2008.07-	L13Z1, L13Z2 1339 Petrol 73 kW 100 BHP (2008.07 - )	320	Track Use	Not included
Honda	Jazz	Gen. IV | 1.5 (GK5)	2014.09-	L15B1 1497 Petrol 97 kW 132 BHP (2014.09 - )	320	Track Use	Not included
Honda	Jazz	Gen. III | 1.5 i-VTEC (GE8)	2008.07-2014.06	L15-A7 1496 Petrol 88 kW 120 BHP (2008.07 - 2014.06)	320	Track Use	Not included
Honda	Jazz	Gen. IV | 1.5 (GK5)	2014.09-	L15A, L15Z2, L15Z5 1497 Petrol 88 kW 120 BHP (2014.09 - )	320	Track Use	Not included
Honda	City	Gen. V | 1.5 i-VTEC (GM2)	2009.02-	L15-A7 1497 Petrol 88 kW 120 BHP (2009.02 - )	320	Track Use	Not included
Honda	City	Gen. VI | 1.5 i-VTEC (GM6)	2014.01-	L15-A7, L15Z1 1497 Petrol 88 kW 119 BHP (2014.01 - )	320	Track Use	Not included
Honda	Jazz	Gen. IV | 1.5	2017.09-2020	L15B3 1498 Petrol 96 kW 130 BHP (2017.09-2020)	320	Track Use	Not included
