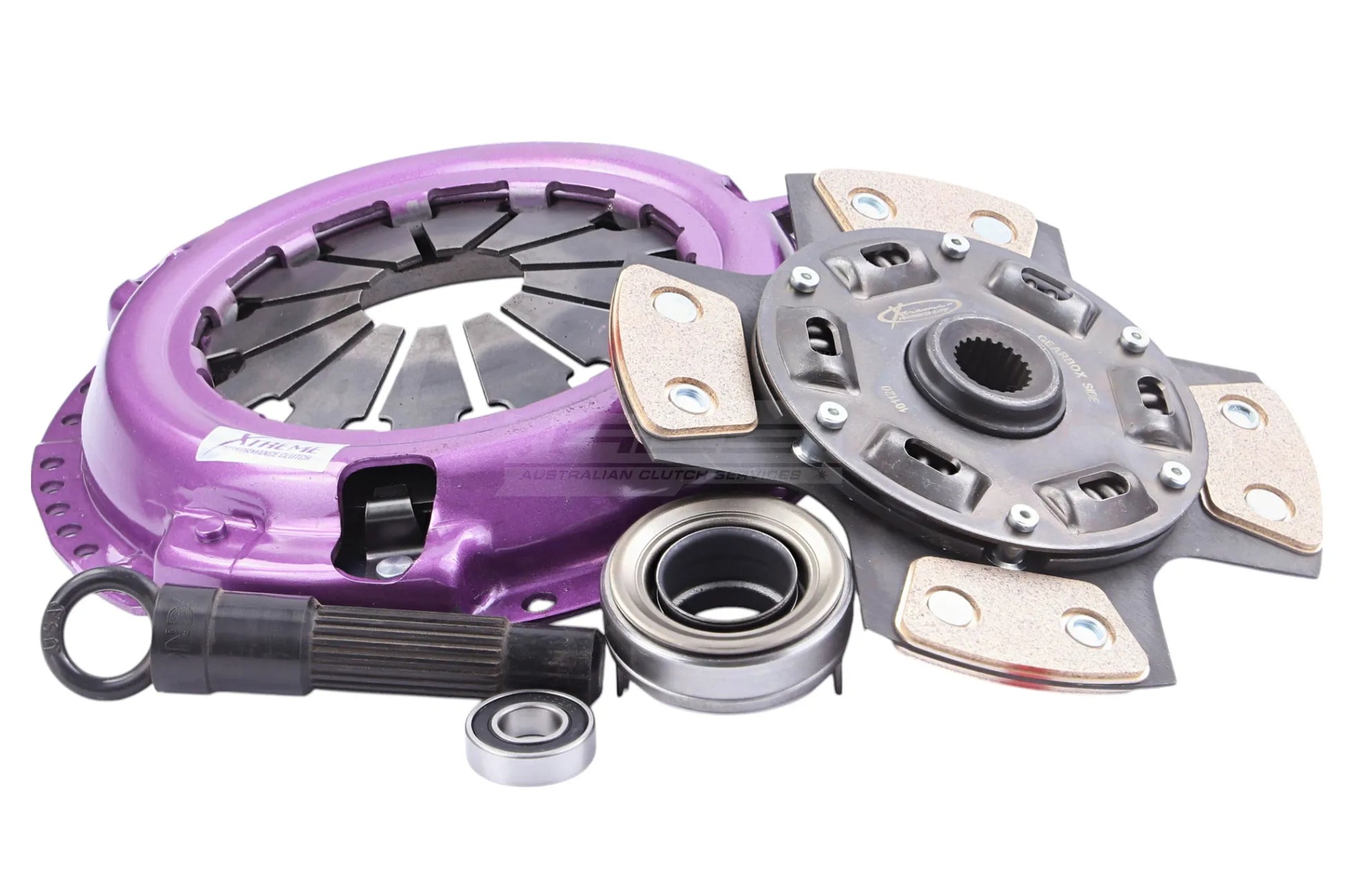

KHN20001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 320Nm
• Clamp load 500kg 60% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	21
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	320
Flywheel Step	-.65mm/.025""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	500Kg (60% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Honda	Accord	Gen. I | 1.6 L/EX	1979.01-1983.09	EL 1602 Petrol 59 kW 80 BHP (1979.01 - 1983.09)	Suits vehicles manufactured from 01/1982.	320	Track Use	Not included
Honda	Accord	Gen. I | 1.6 L/EX	1978.01-1983.09	EG, EL 1602 Petrol 59 kW 80 BHP (1978.01 - 1983.09)	Suits vehicles manufactured from 01/1982.	320	Track Use	Not included
Honda	Accord	Gen. II | 1.6 EX	1983.09-1985.10	EZ 1598 Petrol 65 kW 88 BHP (1983.09 - 1985.10)		320	Track Use	Not included
Honda	Accord	Gen. II | 1.8 EX	1983.09-1985.10	ET1 1829 Petrol 74 kW 101 BHP (1983.09 - 1985.10)	Suits 3 Pin Flywheel	320	Track Use	Not included
Honda	Accord	Gen. III | 1.6	1985.11-1989.12	A16A1 1598 Petrol 65 kW 88 BHP (1985.11 - 1989.12)		320	Track Use	Not included
Honda	Integra	DA | 1.6	1986.03-1989.08	D16A3 1590 Petrol 88 kW 120 BHP (1986.03 - 1989.08)		320	Track Use	Not included
Honda	Prelude	AB | 1.8 EX	1983.11-1987.04	ET3, ET2 1829 Petrol 77 kW 105 BHP (1983.11 - 1987.04)	Suits 3 Pin Flywheel	320	Track Use	Not included
Honda	Prelude	AB | 1.8 EX	1985.11-1987.04	ET3, ET4 1829 Petrol 74 kW 101 BHP (1985.11 - 1987.04)	Suits 3 Pin Flywheel	320	Track Use	Not included
Rover	416	1.6 i	1986.05-1989.12	D 16 A3 1590 Petrol 88 kW 120 BHP (1986.05 - 1989.12)		320	Track Use	Not included
Rover	Quintet	1.6 i	1983.05-1985.10	EL 1602 Petrol 59 kW 80 BHP (1983.05 - 1985.10)		320	Track Use	Not included
