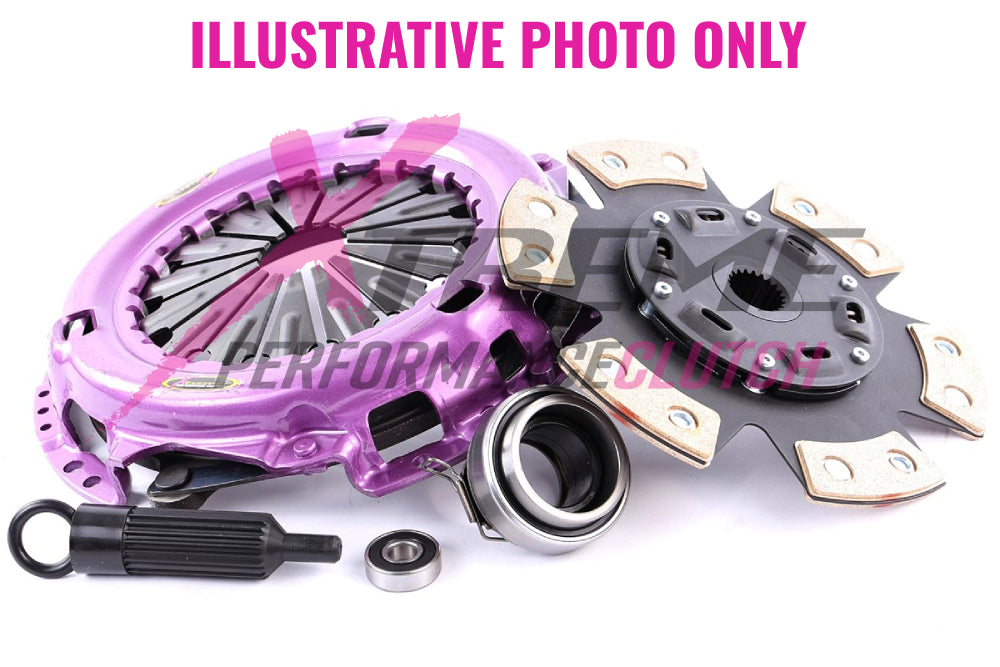

KHD20003-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 530Nm
• Clamp load 900Kg 125% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.8
Torque (Nm)	530
Flywheel Step	0
Design	Single Plate
Stage	Stage 2R
Tech Bulletins
Clamp Load	900Kg (125% inc.)
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Hyundai	Getz	1.3	2003.09-2005.09	G4EA 1341 Petrol 63 kW 85 BHP (2003.09 - 2005.09)
Hyundai	Getz	1.3 i	2002.09-2004.03	G4EA 1341 Petrol 60 kW 82 BHP (2002.09 - 2004.03)
Hyundai	Getz	1.5 i	2003.03-2005.09	G4EC 1495 Petrol 73 kW 99 BHP (2003.03 - 2005.09)
Hyundai	Accent	Gen. I | 1.5 i 12V	1994.10-2000.01	G4EK 1495 Petrol 65 kW 88 BHP (1994.10 - 2000.01)
Hyundai	Accent	Gen. I | 1.5 i 16V	1995.12-2000.01	G4FK 1495 Petrol 73 kW 99 BHP (1995.12 - 2000.01)
Hyundai	Accent	Gen. II | 1.3	2000.01-2005.11	G4EA 1341 Petrol 55 kW 75 BHP (2000.01 - 2005.11)
Hyundai	Accent	Gen. II | 1.3	2000.01-2005.11	G4EA 1341 Petrol 61 kW 83 BHP (2000.01 - 2005.11)
Hyundai	Accent	Gen. II | 1.3	2002.08-2005.11	G4EA 1341 Petrol 62 kW 84 BHP (2002.08 - 2005.11)
Hyundai	Accent	Gen. II | 1.3	2000.01-2005.11	G4EA 1341 Petrol 63 kW 86 BHP (2000.01 - 2005.11)
Hyundai	Accent	Gen. II | 1.5	2000.09-2005.11	G4EC-G 1495 Petrol 75 kW 102 BHP (2000.09 - 2005.11)
Hyundai	Accent	Gen. II | 1.5	2000.06-2002.12	G4ECX 1495 Petrol 76 kW 103 BHP (2000.06 - 2002.12)
Hyundai	Accent	Gen. II | 1.5	1999.09-2002.10	G4EK 1495 Petrol 65 kW 88 BHP (1999.09 - 2002.10)
