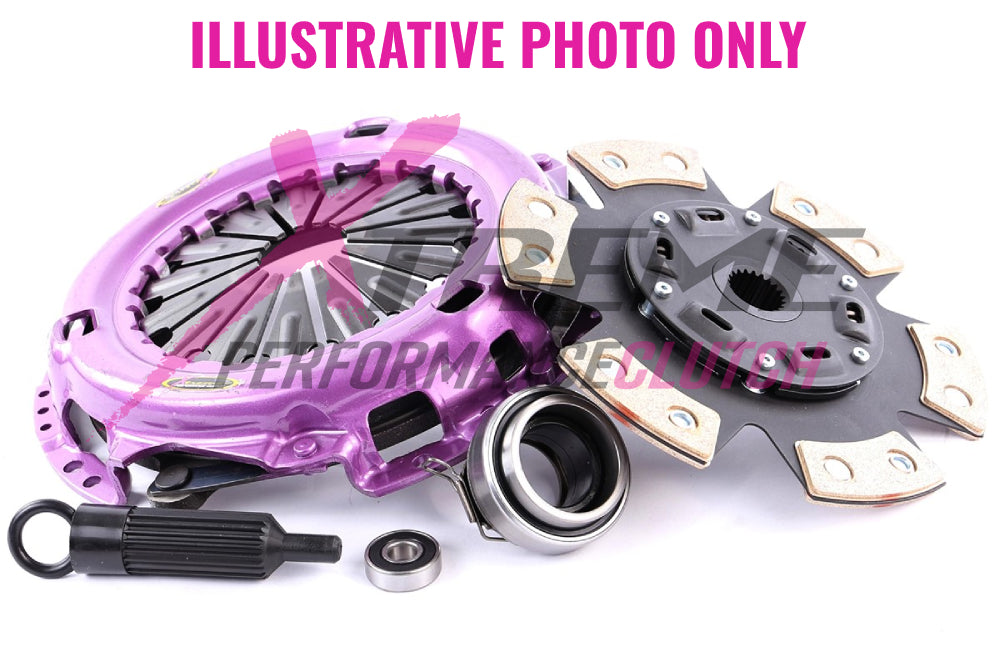

KGM22001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 490Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	220
Clutch Disc Spline Count	10
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	490
Flywheel Step	0
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	H Series	3.0	1968.07-1969.06	186 3048 Petrol 108 kW 147 BHP (1968.07 - 1969.06)
Holden	H Series	3.0	1969.06-1970.08	186 3048 Petrol 108 kW 147 BHP (1969.06 - 1970.08)
Holden	H Series	3.0	1970.08-1971.07	186 3048 Petrol 108 kW 147 BHP (1970.08 - 1971.07)
Holden	H Series	3.0	1970.08-1971.07	186 3048 Petrol 92 kW 125 BHP (1970.08 - 1971.07)
Holden	H Series	3.0	1968.07-1969.06	186 3048 Petrol 94 kW 128 BHP (1968.07 - 1969.06)
Holden	H Series	3.0	1969.06-1970.08	186 3048 Petrol 97 kW 132 BHP (1969.06 - 1970.08)
Holden	H Series	3.0	1970.08-1971.07	186 3048 Petrol 97 kW 132 BHP (1970.08 - 1971.07)
Holden	H Series	3.3	1971.07-1974.10	33LFN 3298 Petrol 96 kW 131 BHP (1971.07 - 1974.10)
Holden	H Series	3.3	1974.10-1976.07	33LFP 3298 Petrol 101 kW 137 BHP (1974.10 - 1976.07)
Holden	H Series	3.3	1974.10-1976.07	33LFP 3298 Petrol 96 kW 131 BHP (1974.10 - 1976.07)
Holden	H Series	3.3	1974.07-1974.10	GMH 202 (Red) 3298 Petrol 101 kW 137 BHP (1974.07 - 1974.10)
Holden	H Series	HG | 2.6	1970.07-1971.07	GMH 161 (Red) 2640 Petrol 81 kW 110 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 2.6	1970.07-1971.07	GMH 161 (Red) 2640 Petrol 85 kW 116 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 3.0	1970.07-1971.07	GMH 186 (Red) 3048 Petrol 108 kW 147 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 3.0	1970.07-1971.07	GMH 186 (Red) 3048 Petrol 92 kW 125 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 3.0	1970.07-1971.07	GMH 186 (Red) 3048 Petrol 97 kW 132 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 3.3	1970.07-1971.11	GMH 202 (Red) 3298 Petrol 101 kW 137 BHP (1970.07 - 1971.11)
Holden	H Series	HG | 3.3	1970.07-1971.11	GMH 202 (Red) 3298 Petrol 96 kW 131 BHP (1970.07 - 1971.11)
Holden	H Series	HJ | 2.8	1974.10-1976.07	GMH 173 (Red) 2838 Petrol 88 kW 120 BHP (1974.10 - 1976.07)
Holden	H Series	HJ | 3.3	1974.10-1976.07	33LFP 3298 Petrol 96 kW 131 BHP (1974.10 - 1976.07)
Holden	H Series	HJ | 3.3	1974.10-1976.07	GMH 202 (Red) 3298 Petrol 108 kW 147 BHP (1974.10 - 1976.07)
Holden	H Series	HJ | 3.3	1974.10-1976.07	GMH 202 (Red) 3298 Petrol 96 kW 131 BHP (1974.10 - 1976.07)
Holden	H Series	HK | 2.6	1968.01-1969.05	GMH 161 (Red) 2640 Petrol 81 kW 110 BHP (1968.01 - 1969.05)
Holden	H Series	HK | 2.6	1968.01-1969.05	GMH 161 (Red) 2640 Petrol 85 kW 116 BHP (1968.01 - 1969.05)
Holden	H Series	HK | 3.0	1968.01-1969.05	GMH 186 (Red) 3048 Petrol 108 kW 147 BHP (1968.01 - 1969.05)
Holden	H Series	HK | 3.0	1968.01-1969.05	GMH 186 (Red) 3048 Petrol 94 kW 128 BHP (1968.01 - 1969.05)
Holden	H Series	HQ | 3.3	1971.08-1974.10	GMH 202 (Red) 3298 Petrol 101 kW 137 BHP (1971.08 - 1974.10)
Holden	H Series	HQ | 3.3	1971.08-1974.10	GMH 202 (Red) 3298 Petrol 96 kW 131 BHP (1971.08 - 1974.10)
Holden	H Series	HT | 2.6	1969.05-1970.07	161 2640 Petrol 81 kW 110 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 2.6	1969.05-1970.07	186 3048 Petrol 92 kW 125 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 2.6	1969.05-1970.07	GMH 161 (Red) 2640 Petrol 81 kW 110 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 2.6	1969.05-1970.07	GMH 161 (Red) 2640 Petrol 85 kW 116 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 3.0	1969.05-1970.07	GMH 186 (Red) 3048 Petrol 108 kW 147 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 3.0	1969.05-1970.07	GMH 186 (Red) 3048 Petrol 92 kW 125 BHP (1969.05 - 1970.07)
Holden	H Series	HT | 3.0	1969.05-1970.07	GMH 186 (Red) 3048 Petrol 97 kW 132 BHP (1969.05 - 1970.07)
Holden	H Series	HX | 3.3	1976.07-1977.09	33LF 3298 Petrol 76 kW 103 BHP (1976.07 - 1977.09)
Holden	H Series	HX | 3.3	1976.07-1977.09	GMH 202 (Red) 3298 Petrol 76 kW 103 BHP (1976.07 - 1977.09)
Holden	H Series	HX | 3.3	1976.03-1977.09	GMH 202 (Red) 3298 Petrol 81 kW 110 BHP (1976.03 - 1977.09)
Holden	H Series	HZ | 3.3	1977.10-1980.04	33LF 3298 Petrol 76 kW 103 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 3.3	1977.10-1980.04	GMH 202 (Red) 3298 Petrol 76 kW 103 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 3.3	1977.10-1980.04	GMH 202 (Red) 3298 Petrol 81 kW 110 BHP (1977.10 - 1980.04)
Holden	H Series	HZ | 3.3	1977.10-1980.04	GMH 202 (Red) 3298 Petrol 88 kW 120 BHP (1977.10 - 1980.04)
