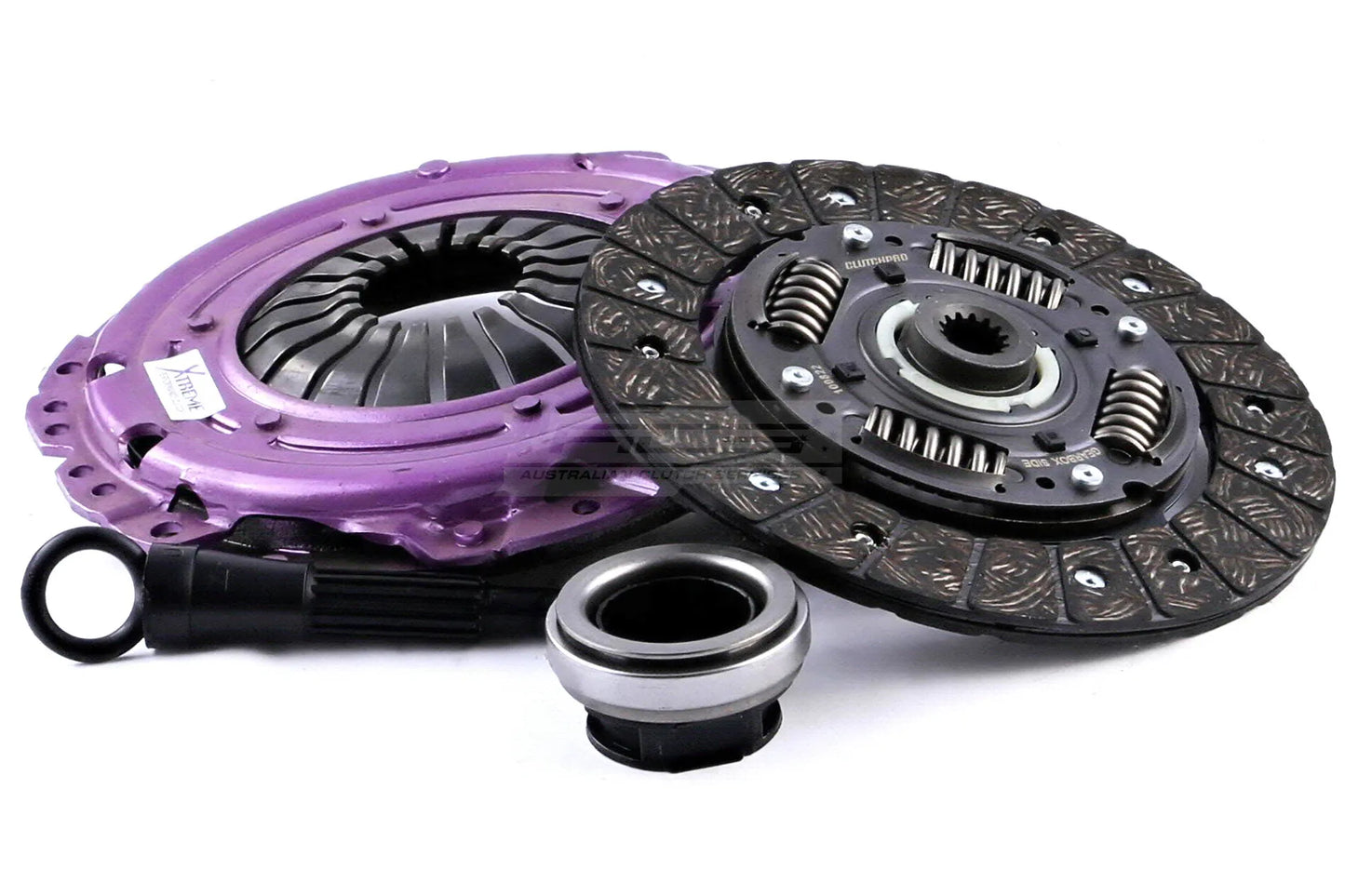

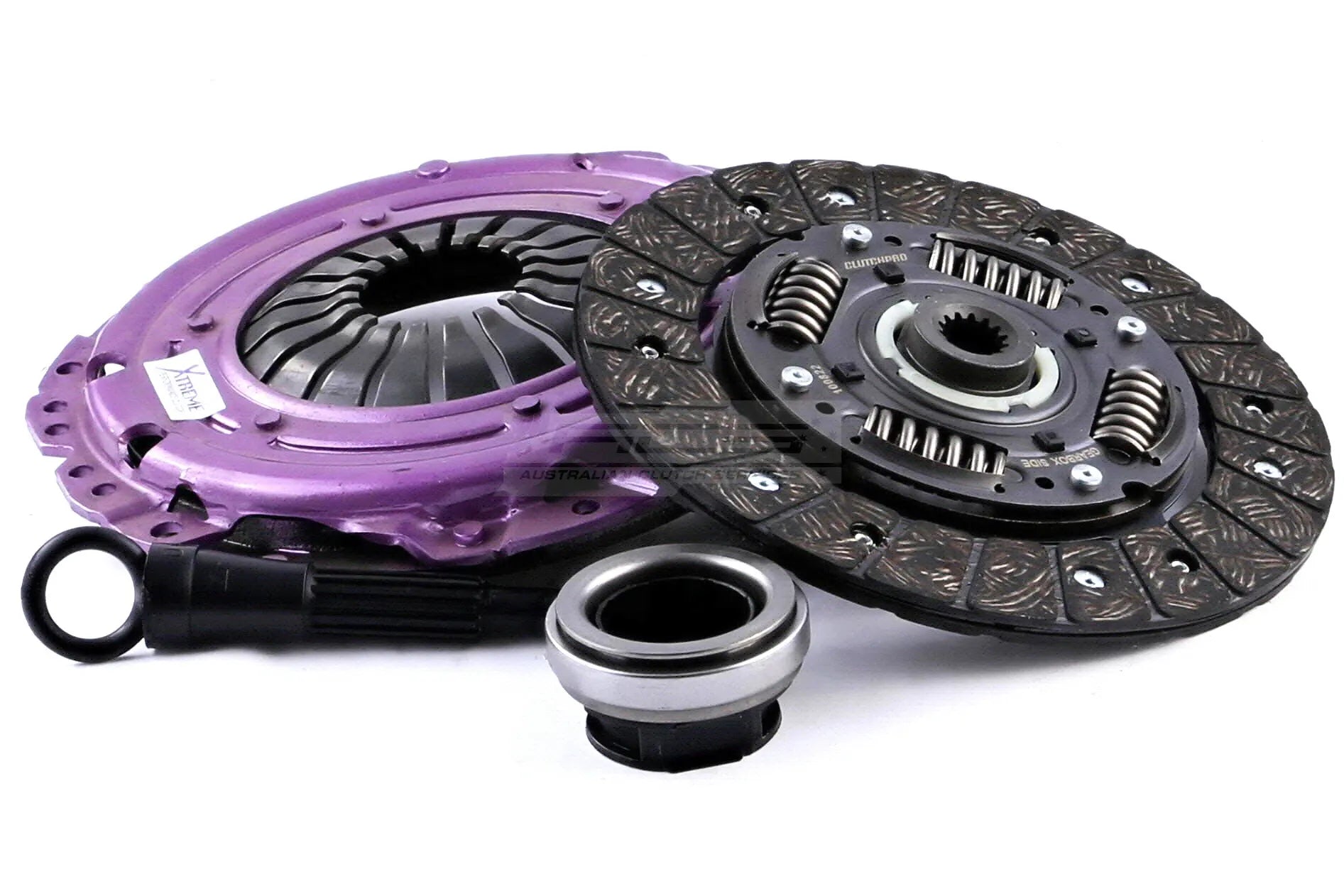

KGM20009-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 220Nm

• Clamp load 550kg 20% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	18.8
Torque (Nm)	220
Flywheel Step	-19.0mm/.748""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	550Kg (20% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Opel	Corsa	1.6 GSI	1989.09-1993.03	C 16 SEI 1598 Petrol 72 kW 98 BHP (1989.09 - 1993.03)
Vauxhall	Nova	1.6 GSI	1989.09-1993.03	C 16 SEI 1598 Petrol 72 kW 98 BHP (1989.09 - 1993.03)
Opel	Corsa	1.6 GSI	1988.05-1992.03	E 16 SE 1598 Petrol 74 kW 100 BHP (1988.05 - 1992.03)
Vauxhall	Nova	1.6 GSI	1988.05-1992.03	E 16 SE 1598 Petrol 74 kW 100 BHP (1988.05 - 1992.03)
Opel	Corsa	1.6 GSI Cat	1992.02-1993.03	C 16 SE 1598 Petrol 74 kW 101 BHP (1992.02 - 1993.03)
Vauxhall	Nova	1.6 GSI Cat	1992.02-1993.03	C 16 SE 1598 Petrol 74 kW 101 BHP (1992.02 - 1993.03)
Vauxhall	Astra	E | 1.6	1984.09-1991.08	16 SV 1598 Petrol 60 kW 82 BHP (1984.09 - 1991.08)
Vauxhall	Astra	E | 1.6 D	1985.09-1991.08	16 D, 16 DA 1598 Diesel 40 kW 54 BHP (1985.09 - 1991.08)
Vauxhall	Astra	E | 1.6 D	1984.09-1989.12	16 DA 1598 Diesel 40 kW 54 BHP (1984.09 - 1989.12)
Vauxhall	Astra	E | 1.7 D	1989.01-1991.12	17 D 1699 Diesel 42 kW 57 BHP (1989.01 - 1991.12)
Vauxhall	Astra	E | 1.7 D	1988.09-1991.08	17 DR 1699 Diesel 42 kW 57 BHP (1988.09 - 1991.08)
Vauxhall	Astra	F | 1.6 i	1991.09-1998.02	C 16 NZ, E 16 NZ, X 16 SZR, 16 NZR 1598 Petrol 55 kW 75 BHP (1991.09 - 1998.02)
Vauxhall	Astra	F | 1.6 i	1992.03-1998.02	C 16 SE 1598 Petrol 74 kW 100 BHP (1992.03 - 1998.02)
Vauxhall	Astra	F | 1.6 i	1994.07-1998.02	X 16 SZ 1598 Petrol 52 kW 71 BHP (1994.07 - 1998.02)
Vauxhall	Astravan	F | 1.6 i (F70)	1991.10-1998.08	C 16 NZ 1598 Petrol 55 kW 75 BHP (1991.10 - 1998.08)
Vauxhall	Astravan	F | 1.6 i (F70)	1994.09-1996.08	X 16 SZ 1598 Petrol 52 kW 71 BHP (1994.09 - 1996.08)
Vauxhall	Astra	F | 1.7 D	1991.12-1998.02	17 D 1699 Diesel 42 kW 57 BHP (1991.12 - 1998.02)
Vauxhall	Astra	F | 1.7 D	1992.07-1998.09	17 DR 1699 Diesel 44 kW 60 BHP (1992.07 - 1998.09)
Vauxhall	Astravan	F | 1.7 D (F70)	1991.10-1994.12	17 DR 1699 Diesel 44 kW 60 BHP (1991.10 - 1994.12)
Vauxhall	Cavalier	Gen. II | 1.6 D	1982.03-1988.08	16 D 1598 Diesel 40 kW 54 BHP (1982.03 - 1988.08)
Vauxhall	Cavalier	Gen. II | 1.6 D	1982.03-1988.08	16 DA 1598 Diesel 40 kW 54 BHP (1982.03 - 1988.08)
Vauxhall	Cavalier	Gen. II | 1.6 i	1986.08-1988.08	E 16 NZ 1598 Petrol 55 kW 75 BHP (1986.08 - 1988.08)
Vauxhall	Cavalier	Gen. II | 1.6 i Cat	1986.08-1988.08	C 16 NZ, C 16 LZ 1598 Petrol 55 kW 75 BHP (1986.08 - 1988.08)
Vauxhall	Cavalier	Gen. III | 1.6	1988.09-1993.05	16 SV 1598 Petrol 60 kW 82 BHP (1988.09 - 1993.05)
Vauxhall	Cavalier	Gen. III | 1.6 i	1988.09-1995.11	C 16 NZ, E 16 NZ 1598 Petrol 55 kW 75 BHP (1988.09 - 1995.11)
Vauxhall	Cavalier	Gen. III | 1.6 i	1993.09-1995.11	X 16 SZ 1598 Petrol 52 kW 71 BHP (1993.09 - 1995.11)
Vauxhall	Cavalier	Gen. III | 1.7 D	1988.09-1992.09	17 D 1699 Diesel 42 kW 57 BHP (1988.09 - 1992.09)
Vauxhall	Cavalier	Gen. III | 1.7 D	1992.07-1995.11	17 DR 1699 Diesel 44 kW 60 BHP (1992.07 - 1995.11)
Holden	Barina	SB | 1.6i	1994.04-1998.08	X 16 XE 1598 Petrol 78 kW 104 BHP (1994.04 - 1998.08)
Holden	H Series	TR | 1.6 CD	1995.08-1998.01	C 16 SE 1598 Petrol 74 kW 101 BHP (1995.08 - 1998.01)
