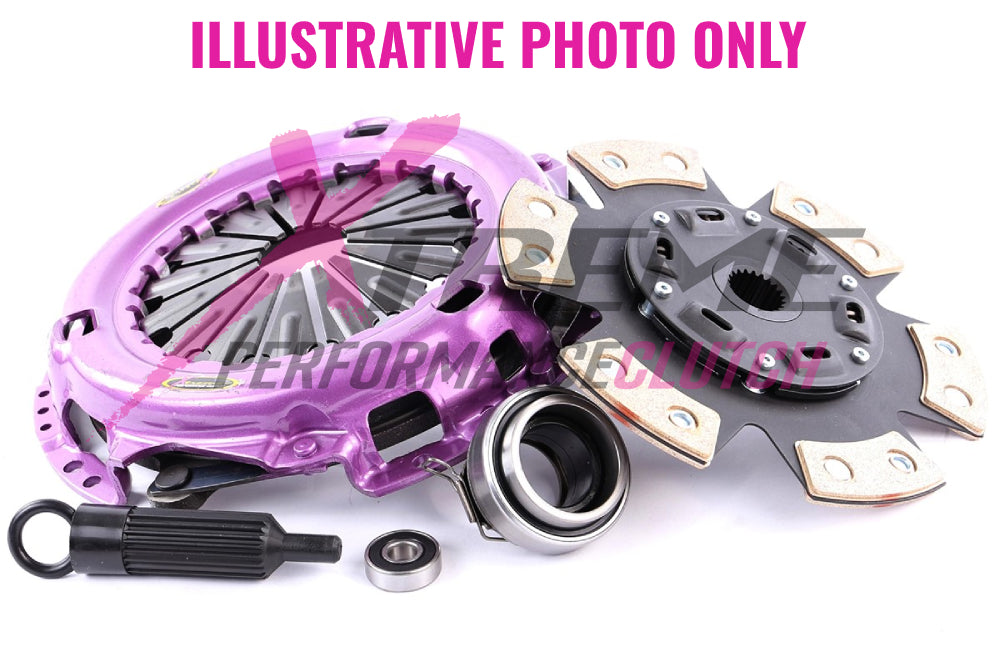

KGM18001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 300Nm
• Clamp load 550kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	190
Clutch Disc Spline Count	14
Clutch Disc Spline Diameter (mm)	18.8
Torque (Nm)	300
Flywheel Step	-2.2mm/.087""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	550Kg (30% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Opel	Corsa	1.0	1982.09-1992.09	10 S 993 Petrol 33 kW 45 BHP (1982.09 - 1992.09)
Vauxhall	Nova	1.0	1983.05-1993.03	10 S 993 Petrol 33 kW 45 BHP (1983.05 - 1993.03)
Opel	Corsa	1.2	1982.09-1990.08	12 NC, E 12 GV 1196 Petrol 33 kW 45 BHP (1982.09 - 1990.08)
Opel	Corsa	1.2	1990.01-1993.03	12 NV 1196 Petrol 38 kW 52 BHP (1990.01 - 1993.03)
Vauxhall	Novavan	1.2	1990.01-1994.10	12 NV 1196 Petrol 38 kW 52 BHP (1990.01 - 1994.10)
Opel	Corsa	1.2	1982.09-1987.10	12 S 1196 Petrol 43 kW 58 BHP (1982.09 - 1987.10)
Opel	Corsa	1.2	1982.09-1990.08	12 S 1196 Petrol 44 kW 60 BHP (1982.09 - 1990.08)
Opel	Corsa	1.2	1986.02-1989.04	12 ST 1196 Petrol 40 kW 54 BHP (1986.02 - 1989.04)
Opel	Corsa	1.2	1982.09-1993.03	12 ST 1196 Petrol 40 kW 55 BHP (1982.09 - 1993.03)
Opel	Corsa	1.2	1989.09-1993.03	C 12 NZ 1195 Petrol 33 kW 45 BHP (1989.09 - 1993.03)
Vauxhall	Nova	1.2	1989.09-1993.03	C 12 NZ 1196 Petrol 33 kW 45 BHP (1989.09 - 1993.03)
Opel	Corsa	1.2 i 16V	1998.03-2000.09	X 12 XE 1199 Petrol 48 kW 65 BHP (1998.03 - 2000.09)
Vauxhall	Nova	1.2 N	1990.01-1993.03	12 NV 1196 Petrol 38 kW 52 BHP (1990.01 - 1993.03)
Vauxhall	Nova	1.2 S	1983.05-1990.02	12 ST 1196 Petrol 40 kW 55 BHP (1983.05 - 1990.02)
Opel	Corsa	1.2i	1993.03-2000.09	12 NZ 1195 Petrol 33 kW 45 BHP (1993.03 - 2000.09)
Opel	Corsa	1.2i	1993.03-2000.09	X 12 SZ, C 12 NZ 1195 Petrol 33 kW 45 BHP (1993.03 - 2000.09)
Opel	Corsa	1.3	1985.09-1989.10	13 NB 1297 Petrol 44 kW 60 BHP (1985.09 - 1989.10)
Opel	Corsa	1.3	1985.09-1987.10	13 NB, C 13 N 1297 Petrol 44 kW 60 BHP (1985.09 - 1987.10)
Opel	Corsa	1.3	1986.02-1989.04	13 SB 1297 Petrol 51 kW 69 BHP (1986.02 - 1989.04)
Opel	Corsa	1.3	1982.09-1989.10	13 SB 1297 Petrol 51 kW 70 BHP (1982.09 - 1989.10)
Opel	Corsa	1.3	1986.09-1990.09	C 13 N 1297 Petrol 44 kW 60 BHP (1986.09 - 1990.09)
Vauxhall	Nova	1.3 S	1983.05-1989.10	13 SB 1297 Petrol 51 kW 70 BHP (1983.05 - 1989.10)
Vauxhall	Nova	1.4 i	1990.01-1993.03	C 14 NZ 1389 Petrol 44 kW 60 BHP (1990.01 - 1993.03)
Vauxhall	Nova	1.4 i S	1991.09-1993.03	C 14 SE 1389 Petrol 60 kW 82 BHP (1991.09 - 1993.03)
Opel	Corsa	1.4 S	1989.09-1993.03	14 NV 1389 Petrol 53 kW 72 BHP (1989.09 - 1993.03)
Vauxhall	Nova	1.4 S	1990.01-1993.02	14 NV 1389 Petrol 55 kW 75 BHP (1990.01 - 1993.02)
Opel	Corsa	1.4 Si	1991.09-1993.03	C 14 SE 1389 Petrol 60 kW 82 BHP (1991.09 - 1993.03)
Opel	Corsa	1.4i	1985.01-1993.03	C 14 NZ 1389 Petrol 40 kW 54 BHP (1985.01 - 1993.03)
Opel	Corsa	1.4i	1989.10-1993.03	C 14 NZ 1389 Petrol 44 kW 60 BHP (1989.10 - 1993.03)
Opel	Corsa	1.4i	1993.03-2000.09	C 14 NZ, X 14 SZ 1389 Petrol 44 kW 60 BHP (1993.03 - 2000.09)
Opel	Corsa	1.4Si	1993.03-2000.09	C 14 SE 1389 Petrol 60 kW 82 BHP (1993.03 - 2000.09)
Vauxhall	Corsa	B | 1.2 i	1993.03-2000.09	X 12 SZ, C 12 NZ 1195 Petrol 33 kW 45 BHP (1993.03 - 2000.09)
Vauxhall	Corsa	B | 1.2 i 16V	1998.03-2000.09	X 12 XE 1199 Petrol 48 kW 65 BHP (1998.03 - 2000.09)
Vauxhall	Corsa	B | 1.4 i	1993.03-2000.09	C 14 NZ, X 14 SZ 1389 Petrol 44 kW 60 BHP (1993.03 - 2000.09)
Vauxhall	Corsavan	B | 1.4 i	1994.01-2000.09	C 14 NZ, X 14 SZ 1389 Petrol 44 kW 60 BHP (1994.01 - 2000.09)
Vauxhall	Corsa	B | 1.4 i S	1993.03-2000.09	C 14 SE 1389 Petrol 60 kW 82 BHP (1993.03 - 2000.09)
Vauxhall	Astra	E | 1.2	1984.09-1991.08	12 S 1196 Petrol 44 kW 60 BHP (1984.09 - 1991.08)
Vauxhall	Astra	E | 1.3	1984.09-1991.08	13 S 1297 Petrol 55 kW 75 BHP (1984.09 - 1991.08)
Vauxhall	Astra	E | 1.4 i	1990.01-1991.12	C 14 NZ 1389 Petrol 44 kW 60 BHP (1990.01 - 1991.12)
Vauxhall	Astra	E | 1.4 S	1989.01-1991.08	14 NV 1389 Petrol 55 kW 75 BHP (1989.01 - 1991.08)
Vauxhall	Astra	F | 1.4 i	1992.04-1998.09	C 14 NZ 1389 Petrol 44 kW 60 BHP (1992.04 - 1998.09)
Vauxhall	Astra	F | 1.4 i	1991.09-1998.02	C 14 NZ, X 14 NZ 1389 Petrol 44 kW 60 BHP (1991.09 - 1998.02)
Vauxhall	Astra	F | 1.4 i	1991.03-1998.02	C 14 SE 1389 Petrol 60 kW 82 BHP (1991.03 - 1998.02)
Vauxhall	Astravan	F | 1.4 i (F70)	1991.09-1995.08	C 14 NZ 1389 Petrol 44 kW 60 BHP (1991.09 - 1995.08)
Vauxhall	Astra	F | 1.4 S	1991.09-1998.02	14 NV 1389 Petrol 55 kW 75 BHP (1991.09 - 1998.02)
Vauxhall	Cavalier	Gen. II | 1.3 S	1981.09-1988.08	13 S 1297 Petrol 55 kW 75 BHP (1981.09 - 1988.08)
Vauxhall	Cavalier	Gen. III | 1.4 S	1988.09-1995.11	14 NV 1389 Petrol 55 kW 75 BHP (1988.09 - 1995.11)
Holden	H Series	SB | 1.2i	1994.04-1997.07	C 12 NZ 1196 Petrol 33 kW 44 BHP (1994.04 - 1997.07)
Holden	H Series	SB | 1.4i	1994.04-1997.07	C 14 NZ 1389 Petrol 44 kW 59 BHP (1994.04 - 1997.07)
Holden	H Series	SB | 1.4i	1997.09-2001.02	C 14 SE 1389 Petrol 60 kW 80 BHP (1997.09 - 2001.02)
