KFD24640-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 910Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate

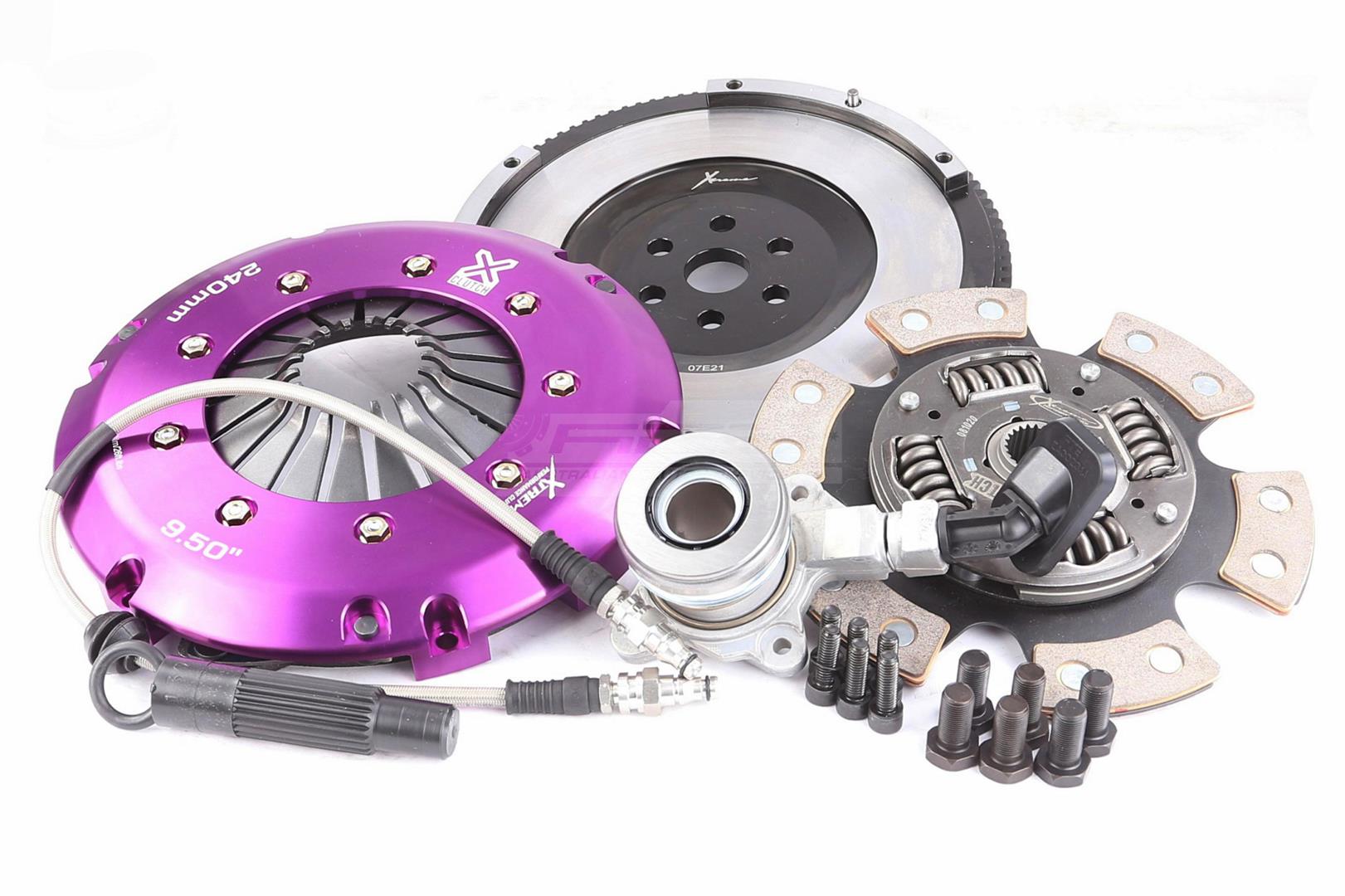

• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	23
Clutch Disc Spline Diameter (mm)	26
Torque (Nm)	910
Flywheel Step	-9.53mm
Design	Single Plate
Stage	Stage 2R
Tech Bulletins	TSB-167TSB-226
Clamp Load
Recommended for	Race Vehicles - Stage 2R
Ring Gear Tooth count
Additional infotmation

Compatibility
Ford	Mondeo	2.0 EcoBoost	2010.03-2014.09	TPBA 1999 Petrol 176 kW 239 BHP (2010.03 - 2014.09)
Ford	Mondeo	2.0 EcoBoost	2010.07-2015.01	TPBA 1999 Petrol 176 kW 240 BHP (2010.07 - 2015.01)
Ford	S-MAX	2.0 EcoBoost	2010.07-2014.12	TPWA 1999 Petrol 176 kW 240 BHP (2010.07 - 2014.12)
Ford	Focus	2.0 ST	2012.07-2017.12	R9DA, R9DB, R9DC, R9DD 1999 Petrol 184 kW 250 BHP (2012.07 - 2017.12)
Ford	Focus	2.3 RS AWD	2015.11-2018.12	YVDA 2261 Petrol 257 kW 350 BHP (2015.11 - 2018.12)
