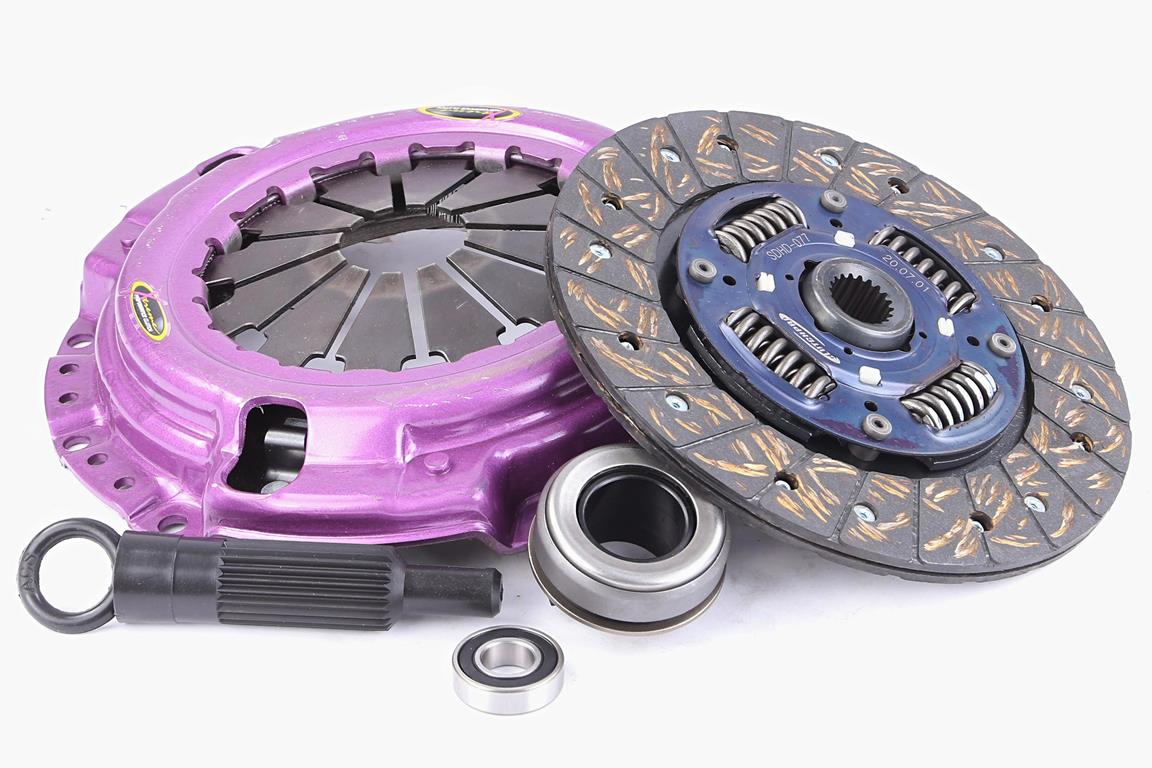

KFD20003-1A

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 210Nm

• Clamp load 630kg 50% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22.8
Torque (Nm)	210
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 1
Tech Bulletins
Clamp Load	630Kg (50% inc.)
Recommended for	Street Performance & Towing - Stage 1
Ring Gear Tooth count
Additional infotmation

Compatibility
Mazda	2	1.5 (DY5W)	2003.04-2007.06	ZY-VE 1498 Petrol 82 kW 111 BHP (2003.04 - 2007.06)
Mazda	323	1.6 (BA11)	1994.08-1998.09	1598 Petrol 80 kW 109 BHP (1994.08 - 1998.09)
Mazda	323	1.8 (BA)	1994.08-1998.09	BP (DOHC) 1840 Petrol 92 kW 125 BHP (1994.08 - 1998.09)
Mazda	323	1.8 (BA11)	1994.07-1998.09	BP (DOHC) 1840 Petrol 92 kW 125 BHP (1994.07 - 1998.09)
Mazda	323	1.8 16V (BA)	1994.08-1998.09	BP (DOHC) 1840 Petrol 92 kW 125 BHP (1994.08 - 1998.09)
