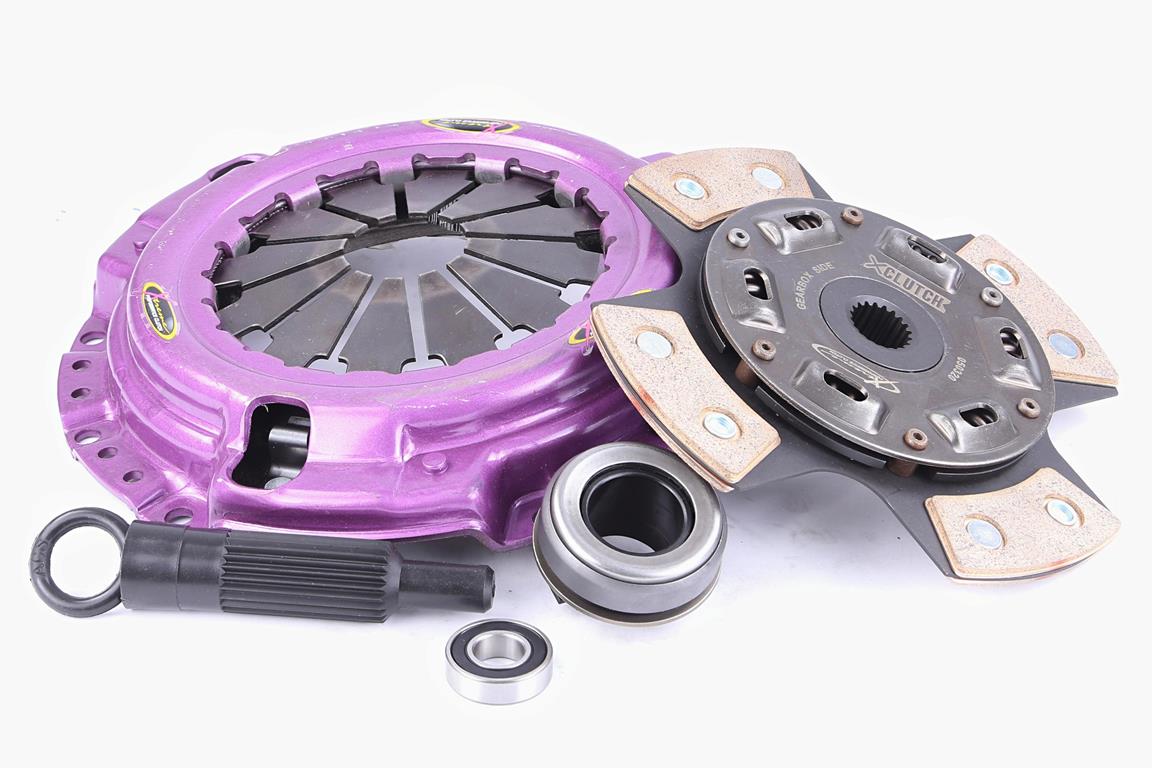

KFD20001-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 320Nm
• Clamp load 630kg 50% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	200
Clutch Disc Spline Count	20
Clutch Disc Spline Diameter (mm)	22
Torque (Nm)	320
Flywheel Step	+.5mm/.020""
Design	Single Plate
Stage	Stage 2
Tech Bulletins
Clamp Load	630Kg (50% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Mazda	323	1.6 (BJ10M)	1998.09-2001.02	1598 Petrol 80 kW 109 BHP (1998.09 - 2001.02)
Mazda	323	1.6 (BJ10M)	2001.01-2004.05	ZM 1598 Petrol 72 kW 98 BHP (2001.01 - 2004.05)
Mazda	323	1.6 (BJ10M)	1998.09-2003.12	ZM 1598 Petrol 78 kW 106 BHP (1998.09 - 2003.12)
Mazda	323	1.6 Astina (BJ10M)	1998.09-2002.05	ZM 1598 Petrol 78 kW 106 BHP (1998.09 - 2002.05)
Mazda	323	1.8 16V (BG8P)	1989.06-1991.03	BP19 1840 Petrol 77 kW 105 BHP (1989.06 - 1991.03)
Mazda	323	1.8 16V (BG8P)	1989.08-1994.07	BP52 1840 Petrol 76 kW 103 BHP (1989.08 - 1994.07)
Mazda	323	1.8 16V (BG8S. BG8P)	1989.08-1994.07	BP 1840 Petrol 76 kW 103 BHP (1989.08 - 1994.07)
Mazda	323	1.8 Astina (BJ8W)	1998.09-2004.05	BP (DOHC) 1840 Petrol 92 kW 125 BHP (1998.09 - 2004.05)
Mazda	323	1.8 Protege (BJ10M)	1998.05-2004.05	BP (DOHC), FP55 1840 Petrol 92 kW 125 BHP (1998.05 - 2004.05)
Mazda	Premacy	1.9 (CP10P)	1999.01-2002.12	1840 Petrol 96 kW 131 BHP (1999.01 - 2002.12)
Mazda	Premacy	1.9 (CP10P)	1999.07-2005.03	FP 1840 Petrol 84 kW 114 BHP (1999.07 - 2005.03)
Kia	Rio	DC | 1.5 16V	2002.09-2005.02	A5D 1493 Petrol 71 kW 97 BHP (2002.09 - 2005.02)
Kia	Rio	DC | 1.5 16V	2000.08-2005.02	A5D 1493 Petrol 72 kW 98 BHP (2000.08 - 2005.02)
Kia	Rio	DC | 1.5 16V	2000.09-2005.02	A5D 1493 Petrol 72 kW 98 BHP (2000.09 - 2005.02)
