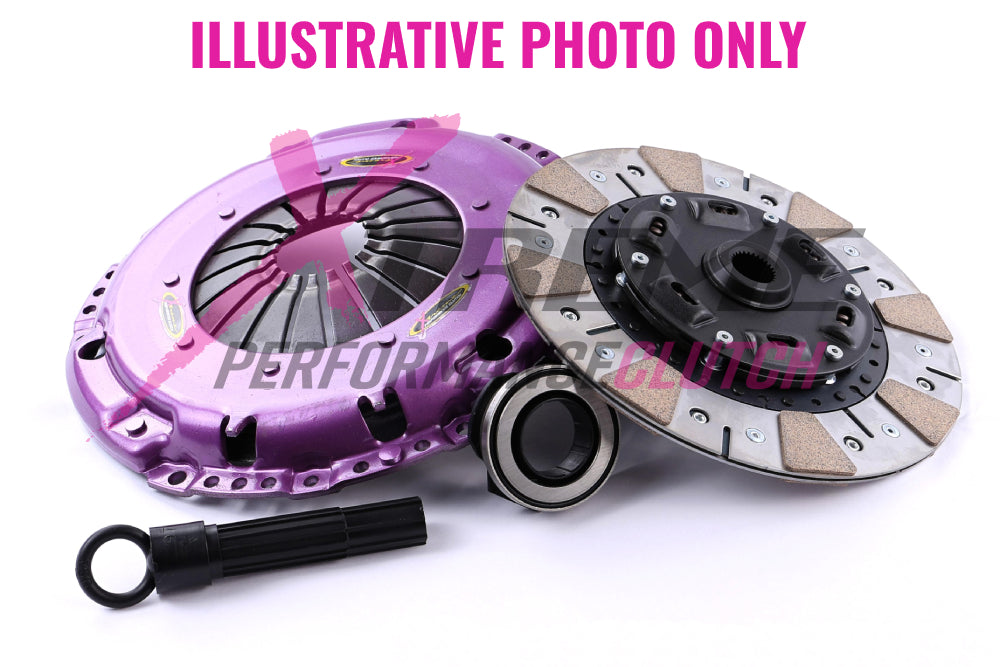

KBU26001-1CX

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 1070Nm
• Clamp load 1200Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	265
Clutch Disc Spline Count	10
Clutch Disc Spline Diameter (mm)	28.6
Torque (Nm)	1070
Flywheel Step	0
Design	Single Plate
Stage
Tech Bulletins
Clamp Load	1200Kg (40% inc.)
Recommended for	Track - Stage 2
Ring Gear Tooth count
Additional infotmation

Compatibility
Holden	H Series	5.0	1968.07-1969.06	5025 Petrol 157 kW 214 BHP (1968.07 - 1969.06)
Holden	H Series	5.0	1969.06-1970.08	5025 Petrol 157 kW 214 BHP (1969.06 - 1970.08)
Pontiac	Firebird	5.0	1981.12-1989.10	LG4 5002 Petrol 112 kW 152 BHP (1981.12 - 1989.10)
Holden	H Series	5.4	1968.07-1969.06	54C 5361 Petrol 186 kW 253 BHP (1968.07 - 1969.06)
Chevrolet	Corvette	C2 | 5.4	1962.10-1965.12	327 5354 Petrol 187 kW 254 BHP (1962.10 - 1965.12)
Chevrolet	Corvette	C2 | 5.4	1963.10-1965.12	L84(327CUV8) 5357 Petrol 280 kW 380 BHP (1963.10 - 1965.12)
Chevrolet	Corvette	C2 | 5.4	1962.10-1967.12	LF7 5354 Petrol 224 kW 305 BHP (1962.10 - 1967.12)
Holden	H Series	HG | 5.3	1970.07-1971.07	5363 Petrol 205 kW 279 BHP (1970.07 - 1971.07)
Holden	H Series	HG | 5.3	1970.08-1971.07	54I 5361 Petrol 206 kW 280 BHP (1970.08 - 1971.07)
Holden	H Series	HK | 5.0	1968.01-1969.05	50HL 5044 Petrol 157 kW 214 BHP (1968.01 - 1969.05)
Holden	H Series	HK | 5.3	1968.01-1969.05	54C 5363 Petrol 186 kW 253 BHP (1968.01 - 1969.05)
Holden	H Series	HT | 5.3	1969.05-1970.07	54I 5363 Petrol 224 kW 305 BHP (1969.05 - 1970.07)
