KBM24566-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 910Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	240
Clutch Disc Spline Count	26
Clutch Disc Spline Diameter (mm)	35
Flywheel Step (mm)	-9.53
Torque (Nm)	910
Clamp Force
Clamp Force Increase	70%
Stage	Stage 2R
Usage	Track Use
Design	Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins	TSB-226  TSB-269  TSB-SMF02   TSB-214

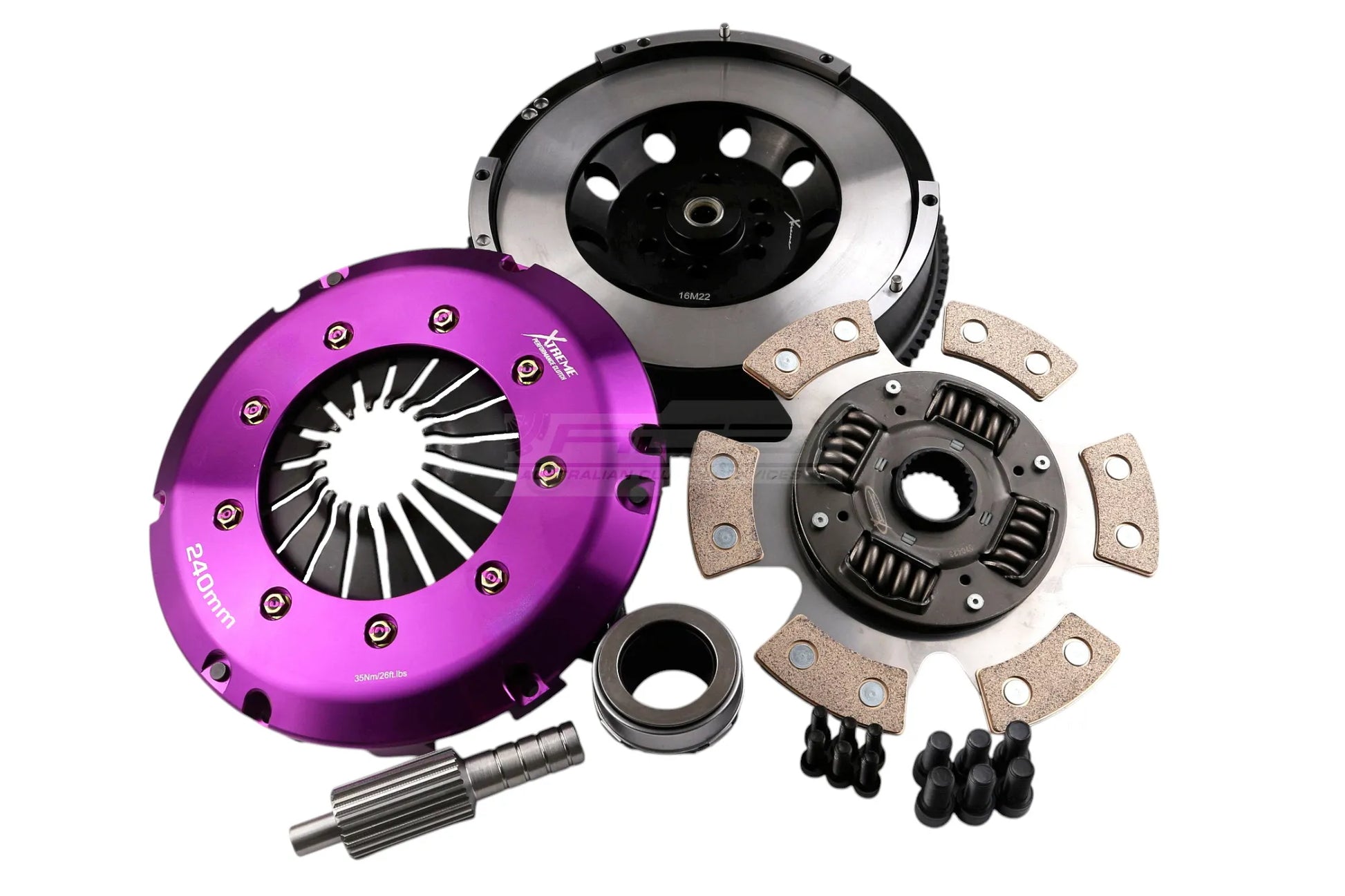

Kit Includes	Pressure Plate, Clutch Disc, Release Bearing, Spigot Bearing, Alignment Tool, Bolts, Flywheel
Flywheel	Conversion to Single Mass Flywheel

Compatibility
BMW	X1	E84 | xDrive 20 i	2011.09-2015.06	N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.09 - 2015.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	X3	F25 | xDrive 20 i	2011.10-2017.08	N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.10 - 2017.09)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E90 | 335i	2006.03-2011.12	N55 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12)	910	Track Use	Conversion to Single Mass Flywheel
BMW	1-Series	E82 | 135i	2007.10-2013.10	N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	1-Series	E88 | 135i	2008.03-2013.10	N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F30, F80 | 335i	2011.11-2015.07	N55 B30 A 2979 Petrol 225 kW 306 BHP (2011.11 - 2015.07)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F30, F80 | 335i xDrive	2012.07-2015.07	N55 B30 A 2979 Petrol 225 kW 306 BHP (2012.07 - 2015.07)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F34 | 335i	2013.03-2016.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2016.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E90 | 335i	2006.09-2011.12	N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E90 | 335i xDrive	2008.09-2011.10	N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E91 | 335i	2006.09-2012.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E91 | 335i xDrive	2008.09-2012.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E91 | 335xi	2007.03-2008.08	N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2008.08)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F31 | 335i	2013.03-2015.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F31 | 335i xDrive	2013.03-2015.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E92 | 335i	2006.06-2013.06	N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E92 | 335i xDrive	2008.11-2013.12	N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E92 | 335xi	2007.03-2010.02	N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	E93 | 335i	2016.12-2013.10	N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	4-Series	F32, F82 | 435i	2013.07-2016.02	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02)	910	Track Use	Conversion to Single Mass Flywheel
BMW	4-Series	F32, F82 | 435i xDrive	2013.07-2016.02	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02)	910	Track Use	Conversion to Single Mass Flywheel
BMW	4-Series	F33, F83 | 435i	2013.11-2016.02	N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.11 - 2016.02)	910	Track Use	Conversion to Single Mass Flywheel
BMW	5-Series	F10 | 535i	2010.01-2016.10	N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.01 - 2016.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	5-Series	E60 | 535i	2006.04-2009.12	N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.04 - 2009.12)	910	Track Use	Conversion to Single Mass Flywheel
BMW	5-Series	F11 | 535i	2010.06-2017.02	N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.06 - 2017.02)	910	Track Use	Conversion to Single Mass Flywheel
BMW	1-Series	E82 | 135i	2007.10-2013.10	N55 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10)	910	Track Use	Conversion to Single Mass Flywheel
BMW	1-Series	E88 | 135i	2008.03-2013.12	N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.12)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F30, F80 | 335i xDrive	2012.07-2013.06	N55 B30 A 2979 Petrol 240 kW 326 BHP (2012.07 - 2013.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	1-Series	E82 | M	2011.03-2012.06	N54 B30 A 2979 Petrol 250 kW 340 BHP (2011.03 - 2012.06)	910	Track Use	Conversion to Single Mass Flywheel
BMW	3-Series	F30, F80 | 335i xDrive	2012.07-2015.07	N55 B30 A 2979 Petrol 250 kW 340 BHP (2012.07 - 2015.07)	910	Track Use	Conversion to Single Mass Flywheel
BMW	4-Series	F32, F82 | 435i	2013.07-2016.02	N55 B30 A 2979 Petrol 250 kW 340 BHP (2013.07 - 2016.02)	910	Track Use	Conversion to Single Mass Flywheel
