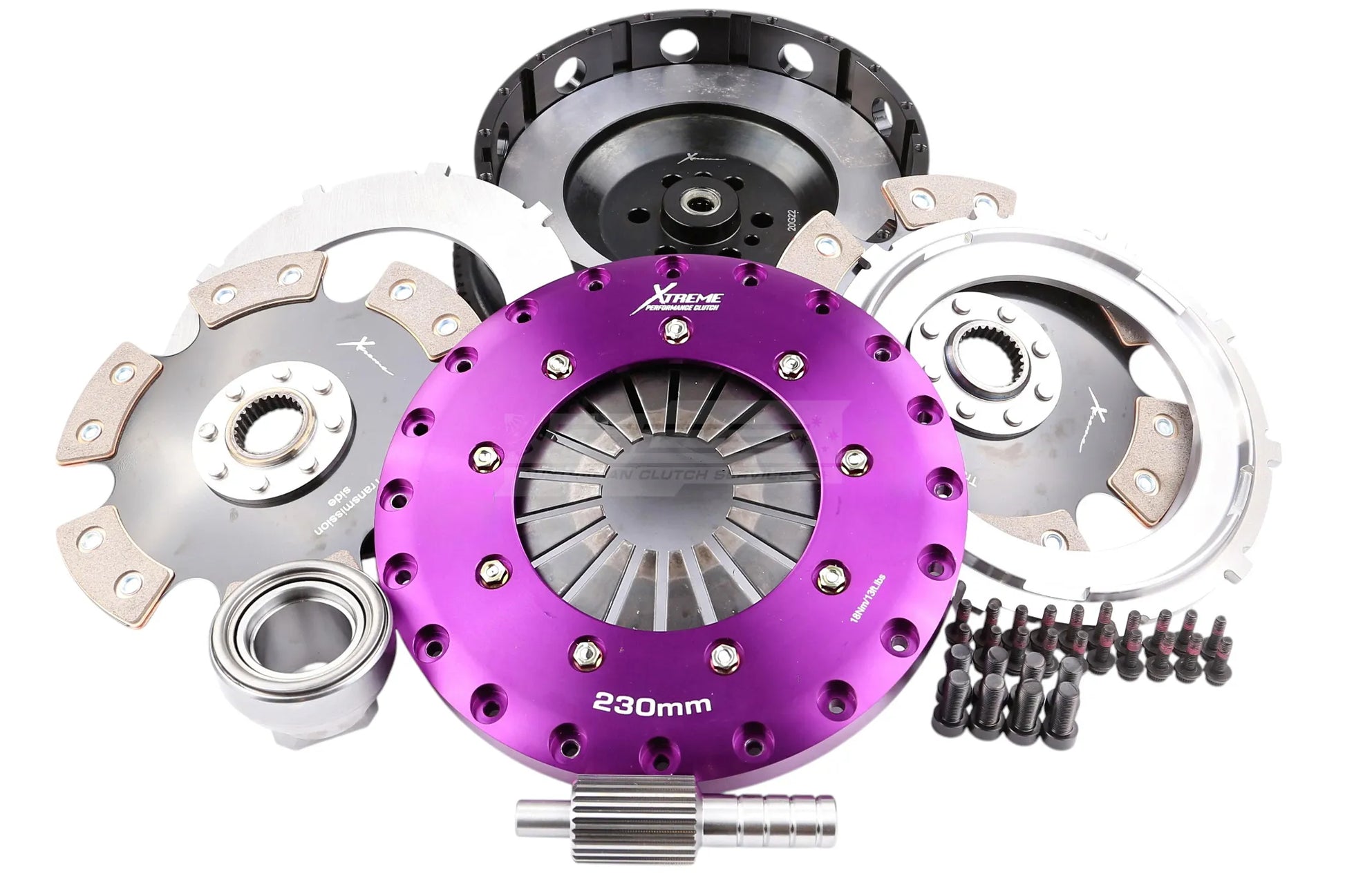

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required. The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range. Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
| Clutch Disc Diameter (mm) | 230 |
| Clutch Disc Spline Count | 10 |
| Clutch Disc Spline Diameter (mm) | 35 |
| Flywheel Step | +3.8 |
| Torque (Nm) | 1830 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 230mm Twin Plate Solid Ceramic – for extreme power and endurance applications. Offers maximum torque transfer and durability under sustained high-temperature conditions. |
| Tech Bulletins | TSB-269 TSB-214 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Compatibility | |||||||
|---|---|---|---|---|---|---|---|
| BMW | X1 | E84 | xDrive 20 i | 2011.09-2015.06 | N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.09 - 2015.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | X3 | F25 | xDrive 20 i | 2011.10-2017.08 | N20 B20 A 1997 Petrol 135 kW 184 BHP (2011.10 - 2017.09) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N55 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i | 2011.11-2015.07 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2011.11 - 2015.07) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2015.07 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2012.07 - 2015.07) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F34 | 335i | 2013.03-2016.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2016.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.09-2011.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i xDrive | 2008.09-2011.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i | 2006.09-2012.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i xDrive | 2008.09-2012.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335xi | 2007.03-2008.08 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2008.08) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F31 | 335i | 2013.03-2015.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F31 | 335i xDrive | 2013.03-2015.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.03 - 2015.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i | 2006.06-2013.06 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i xDrive | 2008.11-2013.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335xi | 2007.03-2010.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E93 | 335i | 2016.12-2013.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i | 2013.07-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i xDrive | 2013.07-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.07 - 2016.02) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F33, F83 | 435i | 2013.11-2016.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2013.11 - 2016.02) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | F10 | 535i | 2010.01-2016.10 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.01 - 2016.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | E60 | 535i | 2006.04-2009.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.04 - 2009.12) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 5-Series | F11 | 535i | 2010.06-2017.02 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2010.06 - 2017.02) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N55 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.12 | N55 B30 A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.12) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2013.06 | N55 B30 A 2979 Petrol 240 kW 326 BHP (2012.07 - 2013.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | M | 2011.03-2012.06 | N54 B30 A 2979 Petrol 250 kW 340 BHP (2011.03 - 2012.06) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | F30, F80 | 335i xDrive | 2012.07-2015.07 | N55 B30 A 2979 Petrol 250 kW 340 BHP (2012.07 - 2015.07) | 1830 | Motorsport | Single Mass Flywheel |
| BMW | 4-Series | F32, F82 | 435i | 2013.07-2016.02 | N55 B30 A 2979 Petrol 250 kW 340 BHP (2013.07 - 2016.02) | 1830 | Motorsport | Single Mass Flywheel |
