KBM23011-1B

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 520Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Clutch Disc Diameter (mm)	225
Clutch Disc Spline Count	10
Clutch Disc Spline Diameter (mm)	29
Flywheel Step (mm)	+0.25
Torque (Nm)	520
Clamp Force
Clamp Force Increase	30%
Stage	Stage 2
Usage	Track Use
Design	Single Plate Sprung Ceramic Disc – designed for high-performance or track-oriented vehicles. Provides increased heat resistance and torque capacity while maintaining some drivability thanks to the sprung hub design.
Tech Bulletins	TSB-269  TSB-BM03

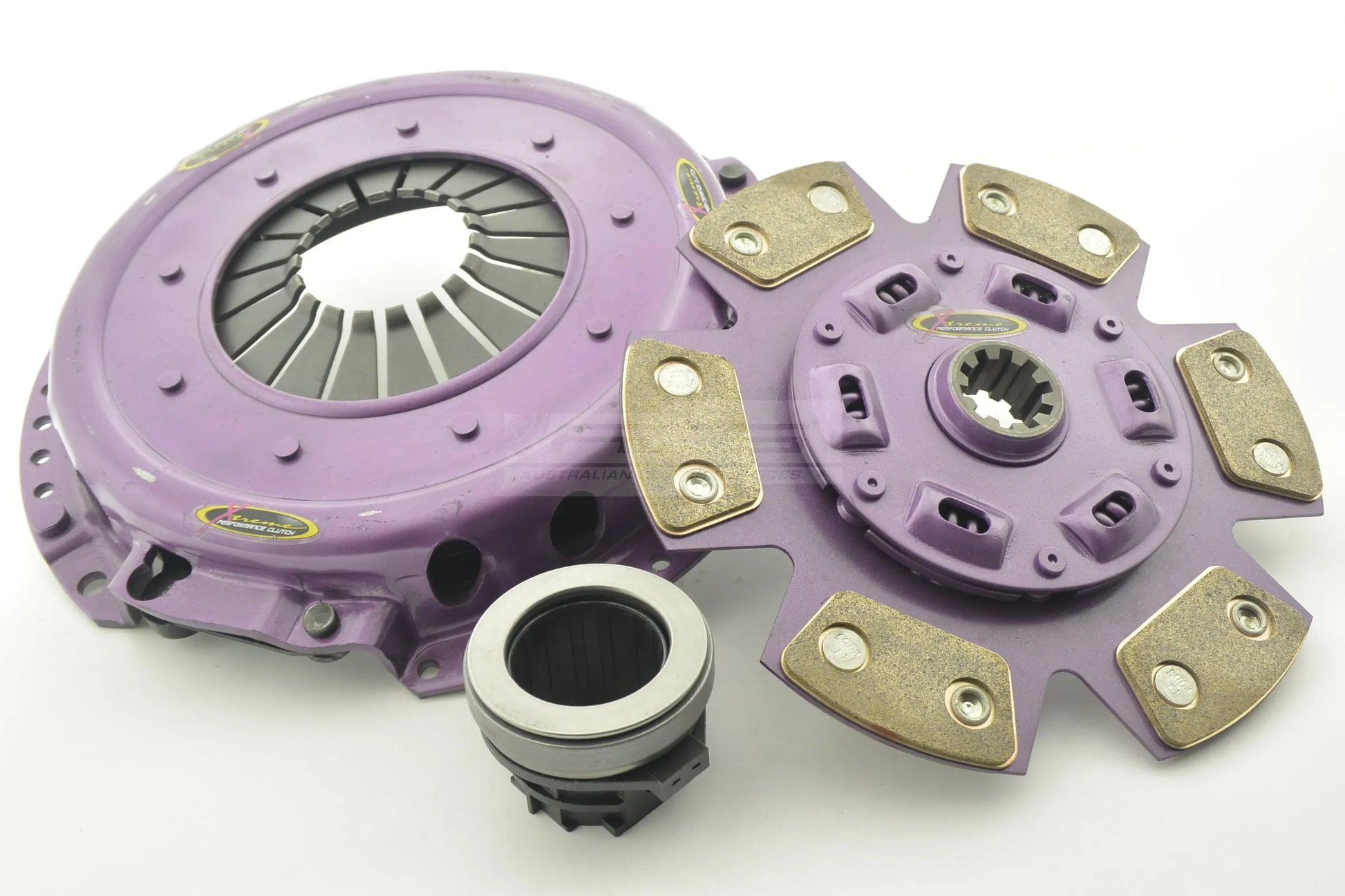

Kit Includes	Pressure Plate, Clutch Disc, Release Bearing
Flywheel	Not included

Compatibility
BMW	3-Series	E30 | 320is	1988.05-1990.12	S14 B20 (204EA) 1990 Petrol 141 kW 192 BHP (1988.05 - 1990.12)	520	Track Use	Not included
BMW	3-Series	E30 | M3	1986.07-1991.06	S14 B23 (234EA), S14 B23 (234S1), S14 B23 (234S2) 2302 Petrol 143 kW 195 BHP (1986.07 - 1991.06)	520	Track Use	Not included
BMW	3-Series	E30 | M3	1987.02-1989.05	S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 147 kW 200 BHP (1987.02 - 1989.05)	520	Track Use	Not included
BMW	3-Series	E30 | M3	1986.01-1990.10	S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 158 kW 215 BHP (1986.01 - 1990.10)	520	Track Use	Not included
BMW	3-Series	E30 | M3 EVO I 2.3	1988.10-1990.10	S14 B23 (234EA) 2302 Petrol 162 kW 220 BHP (1988.10 - 1990.10)	520	Track Use	Not included
BMW	3-Series	E30 | M3 EVO II 2.5	1990.01-1992.01	S14 B25 (254S1) 2467 Petrol 175 kW 238 BHP (1990.01 - 1992.01)	520	Track Use	Not included
