ACS
KBM20524-2E
KBM20524-2E
Prezzo di listino
€2.792,51 EUR
Prezzo di listino
Prezzo scontato
€2.792,51 EUR
Quantità
Impossibile caricare la disponibilità di ritiro

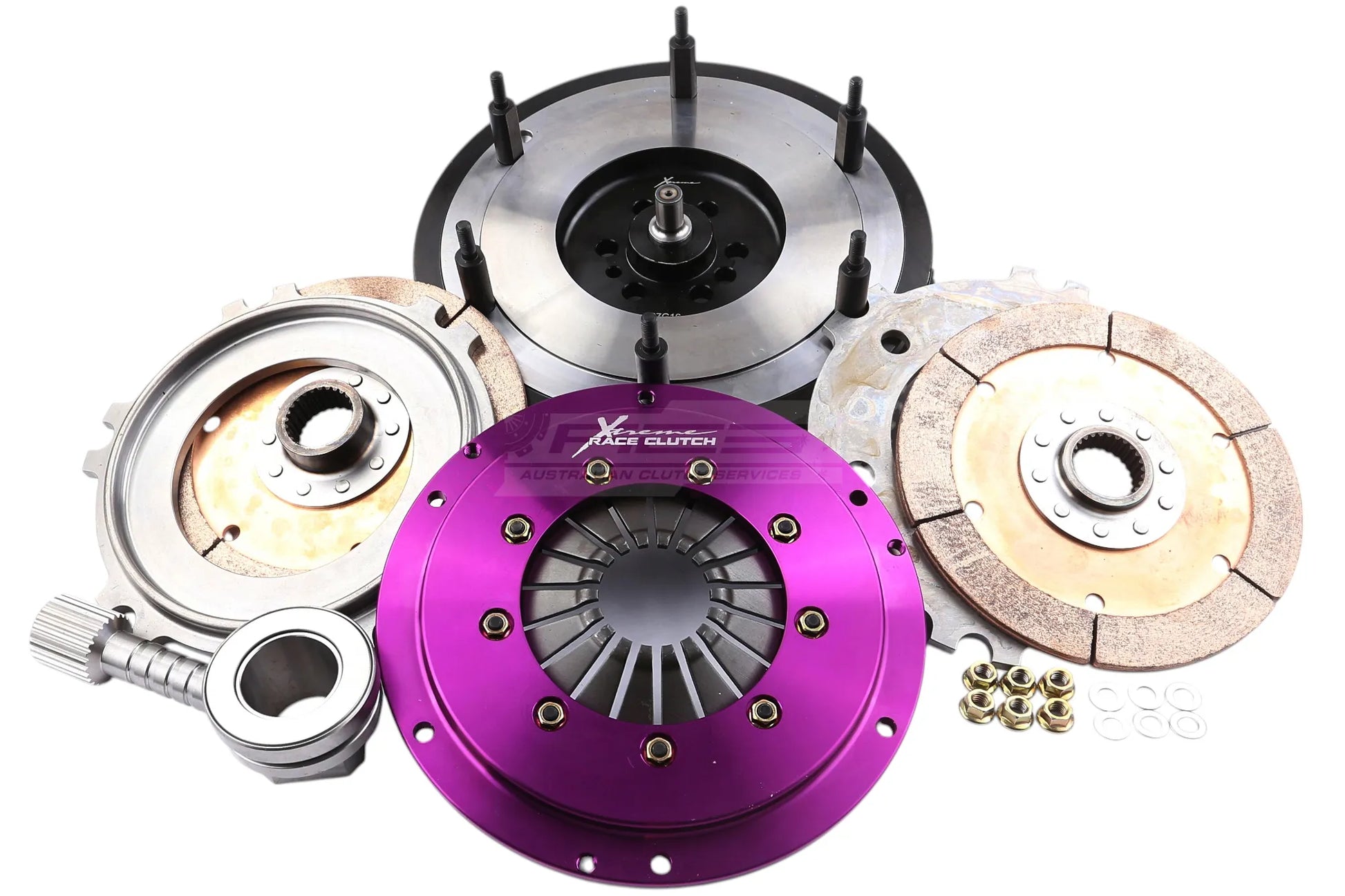

Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC). Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7kg |
| Disc Set Static Mass | 1.75kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
| Clutch Disc Diameter (mm) | 200 |
| Clutch Disc Spline Count | 26 |
| Clutch Disc Spline Diameter (mm) | 35 |
| Flywheel Step (mm) | +2.2 |
| Torque (Nm) | 1200 |
| Stage | 5 |
| Usage | Motorsport |
| Design | 200mm Twin Plate Solid Ceramic – engineered for high-power track vehicles. Provides exceptional torque and heat resistance with direct, competition-style engagement. |
| Tech Bulletins | TSB-269 TSB-200-2-X-1 |
| Kit Includes | Flywheel, Two Discs, Intermediate Plate, Main Casting, Clutch Cover, Relase Bearing, Spigot Bearing, Bolts, Alignment Tool |
| Flywheel | Single Mass Flywheel |
| Note | This kit suits 6 Bolt Crank. |
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N54 B30 A 2979 Petrol 220 kW 299 BHP (2006.03 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.03-2011.12 | N54 B30 A 2979 Petrol 224 kW 305 BHP (2006.03 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.10 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E88 | 135i | 2008.03-2013.10 | N54 B30A 2979 Petrol 225 kW 306 BHP (2008.03 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i | 2006.09-2011.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2011.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E90 | 335i xDrive | 2008.09-2011.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2011.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i | 2006.09-2012.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.09 - 2012.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E91 | 335i xDrive | 2008.09-2012.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.09 - 2012.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i | 2006.06-2013.06 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.06 - 2013.06) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335i xDrive | 2008.11-2013.12 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2008.11 - 2013.12) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E92 | 335xi | 2007.03-2010.02 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2007.03 - 2010.02) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 3-Series | E93 | 335i | 2016.12-2013.10 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2006.12 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | 1-Series | E82 | 135i | 2007.10-2013.10 | N54 B30 A 2979 Petrol 240 kW 326 BHP (2007.10 - 2013.10) | Suits vehicles manufactured after 01/2009. 6 Bolt Crank. | 1200 | Motorsport | Single Mass Flywheel |
| BMW | Z4 | E89 | sDrive 35 i | 2009.02-2016.08 | N54 B30 A 2979 Petrol 225 kW 306 BHP (2009.02 - 2016.08) | 1200 | Motorsport | Single Mass Flywheel | |
