EP948

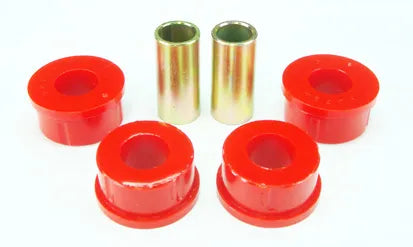

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	9078
Outer Diameter [mm]	45.6
Inner Diameter [mm]	23.7
Material	PU (Polyurethane)
Length [mm]	25.3
C/Tube Size	24x18.6x52
Flange Thickness [mm]	5.3

Compatibility
Hyundai	Excel	HU, X2, With Sealed Struts	HU, X2, With Sealed Struts | 1989-1994	SUSPENSION PARTS	Lower Inner Bush	Urethane Control Arm Lower Front Bush (2PKT)
Hyundai	Excel	3 Door Van	3 Door Van | 1991-1994	SUSPENSION PARTS	Lower Inner Bush	Urethane Control Arm Lower Front Bush (2PKT)
Hyundai	S Coupe	HU	HU | 1990-1996	SUSPENSION PARTS	Lower Inner Bush	Urethane Control Arm Lower Front Bush (2PKT)
