EP8072

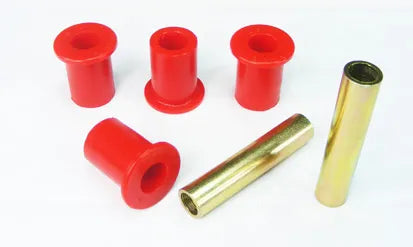

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	LA118
Outer Diameter [mm]	22
Inner Diameter [mm]	12.8
Length [mm]	45.5
Material	PU (Polyurethane)
Flange Thickness [mm]	3.5

Compatibility
Landrover	107 & 109 Series	Series 1	Series 1 | 1953-1958	BUSHES	Front Spring Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	107 & 109 Series	Series 1	Series 1 | 1953-1958	BUSHES	Rear Spring All Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	107 Series	107 Series	107 Series | 1953-1958	BUSHES	Front Spring Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	107 Series	107 Series	107 Series | 1953-1958	BUSHES	Rear Spring All Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	109 Series	Series 2, 2A & 3	Series 2, 2A & 3 | 1958-1984	BUSHES	Front Spring Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	109 Series	Series 2, 2A & 3	Series 2, 2A & 3 | 1958-1984	BUSHES	Rear Spring All Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	80"" Wheel Base	80"" Wheel Base	80"" Wheel Base | 1953-1958	BUSHES	Front Spring Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	80"" Wheel Base	80"" Wheel Base	80"" Wheel Base | 1953-1958	BUSHES	Rear Spring All Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	86"" & 88"" Wheel Base	Series 1 & 2	Series 1 & 2 | 1953-1970	BUSHES	Front Spring Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	86"" & 88"" Wheel Base	Series 1 & 2	Series 1 & 2 | 1953-1970	BUSHES	Rear Spring All Bushes / Kits	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	88"" Wheel Base	Series 3	Series 3 | 1971-1984	BUSHES	Front Shackle Upper Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
Landrover	88"" Wheel Base	Series 3	Series 3 | 1971-1984	BUSHES	Rear Shackle Lower Bushes	Urethane Leaf Spring Eye/ Shackle Bush (2PKT)
