EP6429

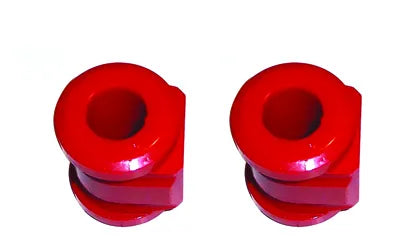

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	9036
Outer Diameter [mm]	48
Inner Diameter [mm]	24
Material	PU (Polyurethane)
Length [mm]	60
C/Tube Size	25x20.2x60

Compatibility
Toyota	Celica	ST162 & AT160	ST162 & AT160 | 1985-1989	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Rear Bush (2 PKT)
Toyota	Estima	TCR10/11, TCR21/22, All with IRS	TCR10/11, TCR21/22, All with IRS | 1990-1999	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Rear Bush (2 PKT)
Toyota	Estima	TCR10/11, TCR21/22, All without IRS	TCR10/11, TCR21/22, All without IRS | 1990-1999	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Rear Bush (2 PKT)
Toyota	Tarago	TCR Series, TCR10, TCR20, without IRS	TCR Series, TCR10, TCR20, without IRS | 1990-2000	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Rear Bush (2 PKT)
Toyota	Tarago	TCR Series, TCR11, TCR21, All with IRS	TCR Series, TCR11, TCR21, All with IRS | 1990-2000	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Rear Bush (2 PKT)
