EP6285

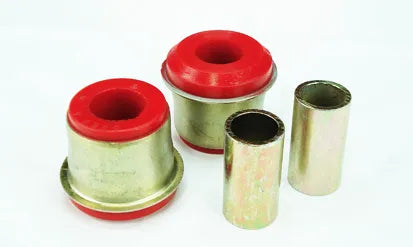

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	5285
Inner Diameter [mm]	25
C/Tube Size	25.4x20x48 mm
Material	PU (Polyurethane)
Length [mm]	48.5
Outer Diameter 1 [mm]	48.5
Outer Diameter 2 [mm]	46
Flange Thickness 1 [mm]	10.5
Flange Thickness 2 [mm]	4.5
Tech Info	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides

Compatibility
Toyota	4 Runner	LN61 & YN63 With IFS	LN61 & YN63 With IFS | 1985-1989	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	4 Runner	YN, RN, LN & VZN130	YN, RN, LN & VZN130 | 1989-1996	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Dyna	Dyna 100, LH80, 85, 100 & YN81	Dyna 100, LH80, 85, 100 & YN81 | 1985-1995	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	HiAce	YH 50-70 & LH 50-70	YH 50-70 & LH 50-70 | 1982-1984	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	HiAce	1984-88 YH50-71 & LH50-71	1984-88 YH50-71 & LH50-71 | 1984-1988	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	HiAce	LH102-125&RZH102-125	LH102-125&RZH102-125 | 1989-2004	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	HiAce	1995-04 RCH12, 13, 22, 23 & 41, IRS Model	1995-04 RCH12, 13, 22, 23 & 41, IRS Model | 1995-2004	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Hilux 4WD	IMPORT LN/YN107-111, RN106-110, .IFS Front, Leaf Rear	IMPORT LN/YN107-111, RN106-110, .IFS Front, Leaf Rear | 1988-1997	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Hilux 4WD	MK4 LN165R, Torsion bar front, leaf rear	MK4 LN165R, Torsion bar front, leaf rear | 1997-2001	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Hilux 4WD	MK5 KDN165R, KDN165R	MK5 KDN165R, KDN165R | 2001-2005	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Surf 4WD	KZN130, Import 3.0 TD	KZN130, Import 3.0 TD | 1988-1995	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Surf 4WD	LN130, Import 2.4 TD	LN130, Import 2.4 TD | 1988-1995	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
Toyota	Surf 4WD	VZN130, UK / Import 3.0 V6 Petrol	VZN130, UK / Import 3.0 V6 Petrol | 1988-1995	BUSHES	Upper Inner Bush	Urethane Upper Control Arm Front Bush (2 PKT)	Upper arm inner bush. Front position. Urethane. Includes bushes for BOTH sides
