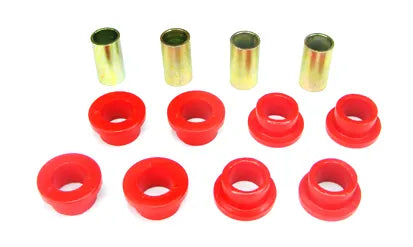

EP6028

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	JAG001
Outer Diameter [mm]	34
Inner Diameter [mm]	25.4
C/Tube Size	25.4x21x46 mm
Material	PU (Polyurethane)
Length [mm]	23
Flange Thickness [mm]	6

Compatibility
Daimler	Double Six	XJ Type	XJ Type | 1972-1993	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Daimler	Six	XJ40 Series	XJ40 Series | 1986-1994	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	E Type	3.5 & 4.2 (6 Cyl)	3.5 & 4.2 (6 Cyl) | 1962-1972	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	Mk1-111,Mk10 & 420G	2.8, 3.4, 3.8, 4.2 & 420G	2.8, 3.4, 3.8, 4.2 & 420G | 1955-1971	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	XJ12		1972-1993	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	XJ6		1959-1969	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	XJ6	Series 1, 2 & 3	Series 1, 2 & 3 | 1969-1986	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
Jaguar	XJS	XJS & XJSC	XJS & XJSC | 1976-1996	SUSPENSION PARTS	Lower Inner Bush	Urethane Lower Control Arm Bush (4 PKT)
