EP3996

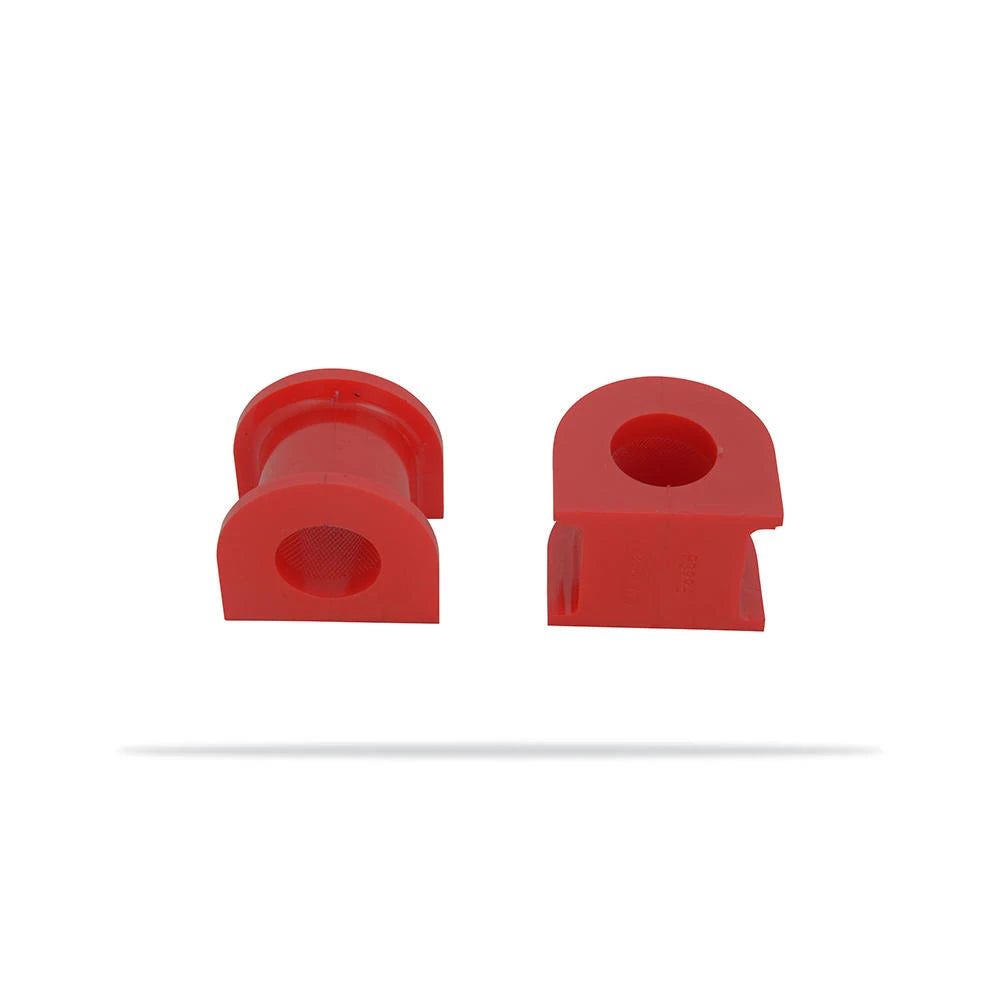

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	2996
Outer Diameter [mm]	38
Inner Diameter [mm]	25
Length [mm]	41
Material	PU (Polyurethane)
Flange Thickness [mm]	4.5

Compatibility
Toyota	HiAce	1984-88 YH50-71 & LH50-71	1984-88 YH50-71 & LH50-71 | 1984-1988	SUSPENSION PARTS	Front Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	HiAce	1984-88 YH50-71 & LH50-71	1984-88 YH50-71 & LH50-71 | 1984-1988	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	100 Series, FZJ105 & HZJ105	100 Series, FZJ105 & HZJ105 | 1998-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, BJ/FJ 70 & 73 Series	70 Series, BJ/FJ 70 & 73 Series | 1984-1987	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, 75 Series	70 Series, 75 Series | 1984-2001	SUSPENSION PARTS	Front Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, 75 Series	70 Series, 75 Series | 1984-2001	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, FZJ78R	70 Series, FZJ78R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, FZJ79R	70 Series, FZJ79R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, HDJ78R	70 Series, HDJ78R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, HDJ79R	70 Series, HDJ79R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, HZJ78R	70 Series, HZJ78R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, HZJ79R	70 Series, HZJ79R | 1999-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, VDJ78R	70 Series, VDJ78R | 2007-Onward	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	70 Series, VDJ79R	70 Series, VDJ79R | 2007-Onward	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	80 Series, FZJ80, HDJ80 & HZJ80	80 Series, FZJ80, HDJ80 & HZJ80 | 1992-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
Toyota	Landcruiser	90 series, LWB, KZJ95, RZJ95 & VZJ95	90 series, LWB, KZJ95, RZJ95 & VZJ95 | 1996-2002	SUSPENSION PARTS	Front Anti-roll Bar Bushes	Urethane Swaybar D Bush 25mm (2 pkt)
