EP3412

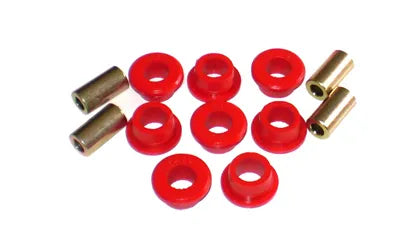

Pedders Urethane Bushes

Pedders Urethane bushes have a high capacity to bear tension, compression and friction and retain their hardness, even under the most adverse conditions. This makes them well suited to the demands of heavy load carrying, firm suspension control or where regular exposure to corrosive materials is expected.

Features & Benefits

• Hardened crush tubes for longer life and to eliminate slippage or creep.
• A double helix, used against the outer diameter of the crush tube. The double helix maintains axial location while allowing full rotation of the pivot. It also acts as a grease reservoir that further increases product life.
• Knurling. For extra protection against adverse wear in heavily laden bushings.
• Bullet Grooves. These provide the correct pre-load while at the same time accommodating a wide variance in sizes and maintaining free pivoting of the bushings

Bush Type	2412
Inner Diameter [mm]	17.8
Length [mm]	17.6
Material	PU (Polyurethane)
Outer Diameter 1 [mm]	28.8
Outer Diameter 2 [mm]	26.5
Shape	tapered
C/Tube Size	18x10x34
Flange Thickness [mm]	3.8
Tech Info	Antiroll bar link bush kit. Includes bushes for BOTH sides
Tech Info	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.

Compatibility
Subaru	Forester	SF Model	SF Model | 1997-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GC, Sedan	GC, Sedan | 1992-2000	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GF, Wagon	GF, Wagon | 1992-2000	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GC WRX, Sedan	GC WRX, Sedan | 1994-2000	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GF WRX, Wagon	GF WRX, Wagon | 1994-2000	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GD, Sedan	GD, Sedan | 2000-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GD WRX, Sedan	GD WRX, Sedan | 2000-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GD WRX STi, Sedan	GD WRX STi, Sedan | 2000-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GG, Wagon	GG, Wagon | 2000-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GG WRX, Wagon	GG WRX, Wagon | 2000-2002	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GD, Sedan	GD, Sedan | 2002-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GD WRX, Sedan	GD WRX, Sedan | 2002-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Impreza	GG, Wagon	GG, Wagon | 2002-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Antiroll bar link bush kit. Includes bushes for BOTH sides
Subaru	Impreza	GG WRX, Wagon	GG WRX, Wagon | 2002-2007	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BC, BF, BJ, Excluding RS	BC, BF, BJ, Excluding RS | 1989-1991	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	2WD Air Conversion	2WD Air Conversion | 1989-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	4WD Air Conversion	4WD Air Conversion | 1989-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BC, BF, BJ, Excluding RS	BC, BF, BJ, Excluding RS | 1991-1993	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BC, BF, BJ, RS Models	BC, BF, BJ, RS Models | 1991-1993	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BD Sed & BG Wag, 2wd	BD Sed & BG Wag, 2wd | 1994-1996	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BD Sed & BG Wag, 4wd	BD Sed & BG Wag, 4wd | 1994-1996	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BD Sed & BG Wag, 2wd	BD Sed & BG Wag, 2wd | 1996-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BD Sed & BG Wag, 4wd	BD Sed & BG Wag, 4wd | 1996-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BH Wagon	BH Wagon | 1998-2003	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Legacy	BE Sedan, Incl B4	BE Sedan, Incl B4 | 1999-2003	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Outback	BG	BG | 1996-1998	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Outback	BH, 2.5lt 4cyl ULP	BH, 2.5lt 4cyl ULP | 1998-2003	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
Subaru	Outback	BH, 3.0lt 6cyl ULP	BH, 3.0lt 6cyl ULP | 1998-2003	BUSHES	Rear Anti-roll Bar Bushes	Urethane Swaybar Link Bush (4 PKT)	Suits standard O.E. plastic link only. Kit inclues enough bushes to re-bush both links.
